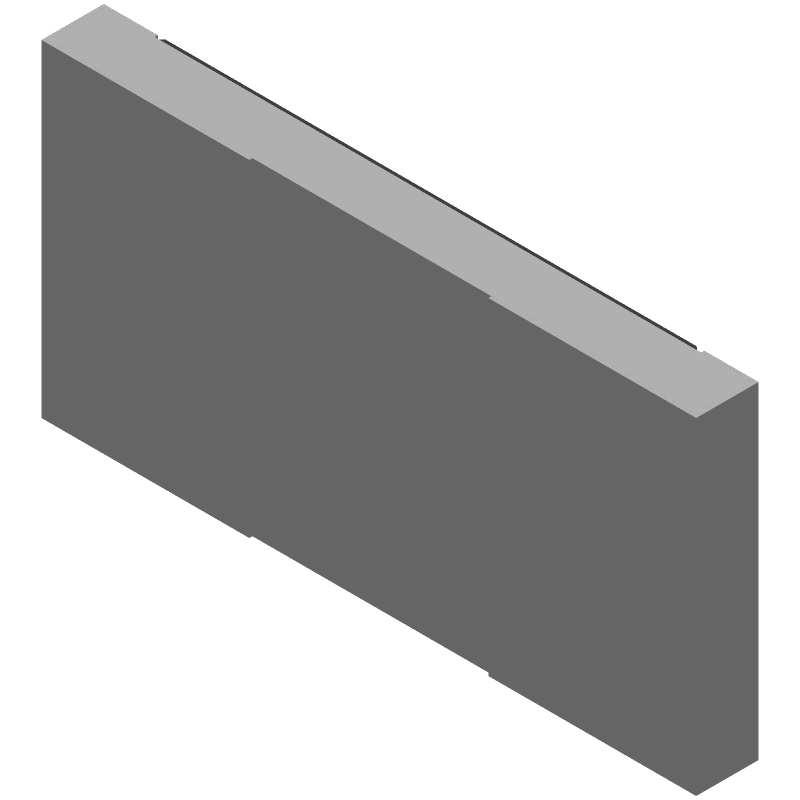

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRHV2512AF80M0GKFT by Vishay Intertechnologies
Results Overview of CRHV2512AF80M0GKFT by Vishay Intertechnologies
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Healthcare
Medical Imaging
CRHV2512AF80M0GKFT Information
CRHV2512AF80M0GKFT by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRHV2512AF80M0GKFT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CRHV2512AF80M0GKFT
|
Avnet Americas | CRHV2512AF 80M 2% 100 FT e2 - Bulk (Alt: CRHV2512AF80M0GKFT) RoHS: Compliant Min Qty: 250 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8438 / $3.2040 | Buy Now |
Part Details for CRHV2512AF80M0GKFT
CRHV2512AF80M0GKFT CAD Models
CRHV2512AF80M0GKFT Part Data Attributes
|
|
CRHV2512AF80M0GKFT
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRHV2512AF80M0GKFT
Vishay Intertechnologies
Fixed Resistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Construction | Rectangular | |
| JESD-609 Code | e2 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.635 mm | |
| Package Length | 6.35 mm | |
| Package Style | SMT | |
| Package Width | 3.2004 mm | |
| Packing Method | TR, 7 INCH | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Resistance | 80000000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Tin/Silver (Sn95Ag5) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 2% | |
| Working Voltage | 3000 V |
