Resistors / Metal Glaze/Thick Film Resistors / CRHV1206AF2M00FKFT
Datasheets
CRHV1206AF2M00FKFT by:

Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP

Part Details for CRHV1206AF2M00FKFT by Vishay Intertechnologies

Results Overview of CRHV1206AF2M00FKFT by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Healthcare Medical Imaging

CRHV1206AF2M00FKFT Information

CRHV1206AF2M00FKFT by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRHV1206AF2M00FKFT

Part # Distributor Description Stock Price Buy
DISTI # 21AM8950
Newark Res, 2M, 1%, Thick Film, 1206, Resistance:2Mohm, Resistance Tolerance:± 1%, Power Rating:300Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:High Voltage, Product Range:Crhv Series Rohs Compliant: Yes |Vishay CRHV1206AF2M00FKFT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2000
  • 1 $2.6200
  • 10 $2.0300
$2.0300 / $2.6200 Buy Now
DISTI # 08N2041
Newark Surface Mount Thick Film Resistor, Crhv Series, 2 Mohm, 300 Mw, - 1%, 1.5 Kv Rohs Compliant: Yes |Vishay CRHV1206AF2M00FKFT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $4.8400
  • 10 $3.0800
  • 25 $2.9600
  • 50 $2.8400
$2.8400 / $4.8400 Buy Now
DISTI # CRHV1206AF2M00FKFT
Avnet Americas CRHV1206AF 2M 1% 100 FT e2 (Alt: CRHV1206AF2M00FKFT) RoHS: Compliant Min Qty: 250 Package Multiple: 1 Lead time: 12 Weeks, 0 Days 0
  • 250 $2.8917
  • 260 $2.8375
  • 510 $1.5432
  • 1,300 $1.1169
  • 2,500 $1.1111
$1.1111 / $2.8917 Buy Now
DISTI # 71-RHV1206AF2M00FKFT
Mouser Electronics Thick Film Resistors - SMD 2M OHM 1% 1.5KV RoHS: Compliant 450
  • 1 $7.0400
  • 10 $4.6700
  • 50 $3.7300
  • 100 $3.4100
  • 250 $3.4100
  • 500 $3.2800
  • 1,000 $3.2600
$3.2600 / $7.0400 Buy Now
DISTI # CRHV1206AF2M00FKFT
TTI Thick Film Resistors - SMD 2M OHM 1% 1.5KV pbFree: Pb-Free Min Qty: 250 Package Multiple: 250 Container: Reel Americas - 2000
In Stock
  • 250 $1.9500
  • 500 $1.9100
  • 1,000 $1.7300
  • 2,000 $1.3900
  • 4,000 $1.2200
$1.2200 / $1.9500 Buy Now
LCSC 300mW Thick Film Resistors 100ppm/ 1% 2M 1206 Chip Resistor - Surface Mount ROHS 10
  • 1 $4.2449
  • 10 $4.1578
  • 30 $4.0998
  • 100 $4.0417
$4.0417 / $4.2449 Buy Now

Part Details for CRHV1206AF2M00FKFT

CRHV1206AF2M00FKFT CAD Models

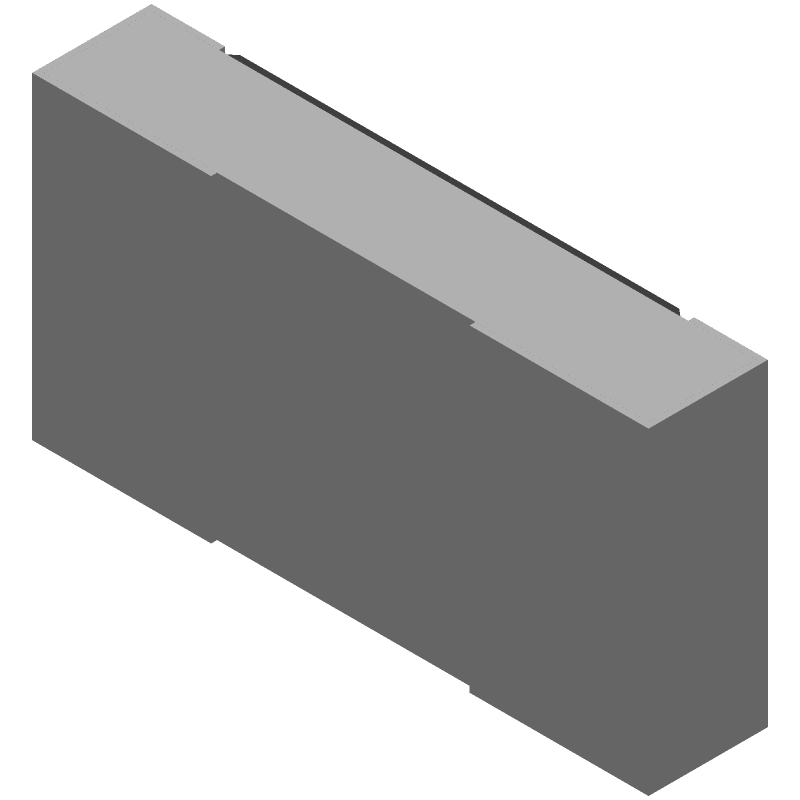

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRHV1206AF2M00FKFT Part Data Attributes

Parametric Data
CRHV1206AF2M00FKFT Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRHV1206AF2M00FKFT Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 12 Weeks
Samacsys Manufacturer Vishay
Construction Rectangular
JESD-609 Code e2
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.635 mm
Package Length 3.175 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.6 mm
Packing Method TR, 7 INCH
Rated Power Dissipation (P) 0.3 W
Rated Temperature 70 °C
Resistance 2000000 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Tin/Silver (Sn95Ag5) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 1500 V

Alternate Parts for CRHV1206AF2M00FKFT

This table gives cross-reference parts and alternative options found for CRHV1206AF2M00FKFT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRHV1206AF2M00FKFT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CRHV1206CF2M00FKET Vishay Intertechnologies $5.0289 Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRHV1206AF2M00FKFT vs CRHV1206CF2M00FKET
CRHV1206AF2M00FKTT Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, -100,100ppm/Cel, 1206, CRHV1206AF2M00FKFT vs CRHV1206AF2M00FKTT
CRHV1206AC2M00FKNW Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, -100,100ppm/Cel, 1206, CRHV1206AF2M00FKFT vs CRHV1206AC2M00FKNW
CRHV1206BD2M00FKN1 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, -100,100ppm/Cel, 1206, CRHV1206AF2M00FKFT vs CRHV1206BD2M00FKN1
CRHV1206CF2M00FKTT Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRHV1206AF2M00FKFT vs CRHV1206CF2M00FKTT
CRHV1206AF2M00FKS1 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, -100,100ppm/Cel, 1206, CRHV1206AF2M00FKFT vs CRHV1206AF2M00FKS1
CRHV1206CF2M00FKFB Vishay Intertechnologies Check for Price Fixed Resistor, CRHV1206AF2M00FKFT vs CRHV1206CF2M00FKFB
CRHV1206CF2M00FKE1 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.3W, 2000000ohm, 1500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRHV1206AF2M00FKFT vs CRHV1206CF2M00FKE1
CRHV1206AF2M00FKSB Vishay Techno Check for Price RESISTOR, METAL GLAZE/THICK FILM, 0.3 W, 1 %, 100 ppm, 2000000 ohm, SURFACE MOUNT, 1206, CHIP CRHV1206AF2M00FKFT vs CRHV1206AF2M00FKSB
CRHV1206CF2M00FKST Vishay Techno Check for Price RESISTOR, METAL GLAZE/THICK FILM, 0.3 W, 1 %, 100 ppm, 2000000 ohm, SURFACE MOUNT, 1206, CHIP CRHV1206AF2M00FKFT vs CRHV1206CF2M00FKST

CRHV1206AF2M00FKFT Related Parts

CRHV1206AF2M00FKFT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds, with a peak temperature of 240°C.

  • Yes, CRHV1206AF2M00FKFT is compatible with lead-free soldering and meets the requirements of the RoHS directive.

  • The power rating of CRHV1206AF2M00FKFT at 70°C is 0.25W.

  • Yes, CRHV1206AF2M00FKFT is suitable for high-frequency applications up to 1 GHz due to its low inductance and low parasitic capacitance.

  • Yes, CRHV1206AF2M00FKFT is AEC-Q200 qualified, making it suitable for automotive applications.
