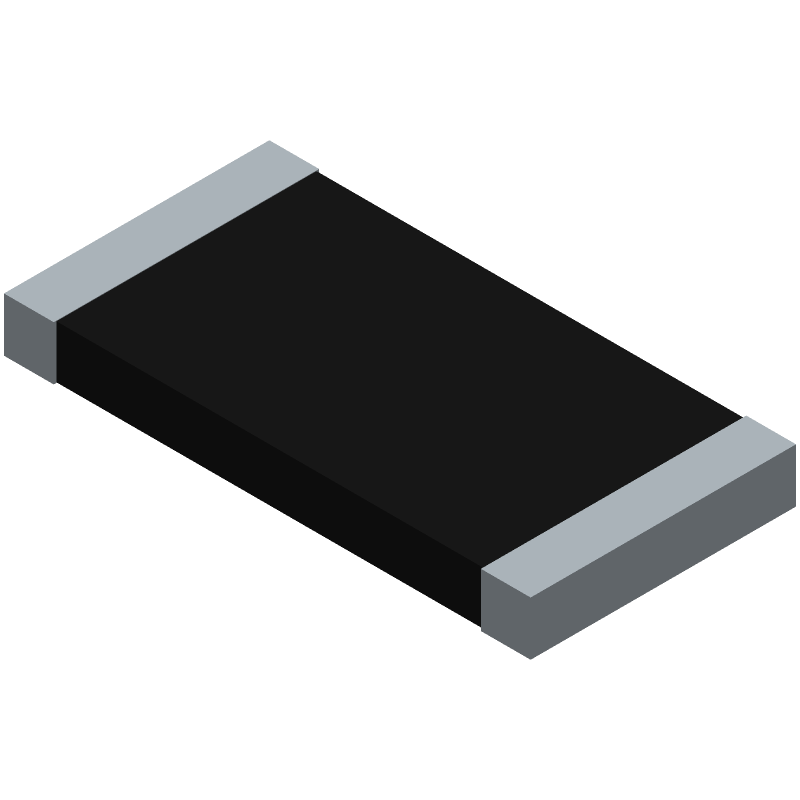

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRGCQ2512F100R by TE Connectivity
Results Overview of CRGCQ2512F100R by TE Connectivity
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CRGCQ2512F100R Information
CRGCQ2512F100R by TE Connectivity is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRGCQ2512F100R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73AC3316
|
Newark | Res, 100R, 1%, 1W, 2512, Thick Film, Resistance:100Ohm, Resistance Tolerance:± 1%, Power Rating:1W, Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Product Range:Crgcq Seriesrohs Compliant: Yes |Te Connectivity CRGCQ2512F100R RoHS: Compliant Min Qty: 24000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1160 | Buy Now |
|
DISTI #
73AC3317
|
Newark | Res, 100R, 1%, 1W, 2512, Thick Film, Resistance:100Ohm, Resistance Tolerance:± 1%, Power Rating:1W, Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Product Range:Crgcq Seriesrohs Compliant: Yes |Te Connectivity CRGCQ2512F100R RoHS: Compliant Min Qty: 24000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0730 / $0.0800 | Buy Now |
|
DISTI #
A129981CT-ND
|
DigiKey | RES 100 OHM 1% 1W 2512 Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
25078 In Stock |
|
$0.0588 / $0.3400 | Buy Now |
|
DISTI #
1-2176349-3
|
Avnet Americas | SMD Chip Resistor, 100 Ohm, ? 1%, 1 W, 2512 [6332 Metric], Thick Film, General Purpose - Tape and Reel (Alt: 1-2176349-3) RoHS: Compliant Min Qty: 24000 Package Multiple: 24000 Lead time: 12 Weeks, 1 Days Container: Reel | 0 |
|
$0.0624 / $0.0637 | Buy Now |
|
DISTI #
279-CRGCQ2512F100R
|
Mouser Electronics | Thick Film Resistors - SMD CRGCQ 2512 100R 1% SMD Resistor RoHS: Compliant | 18109 |
|
$0.0570 / $0.4100 | Buy Now |
|
DISTI #
V72:2272_21820142
|
Arrow Electronics | Res Thick Film 2512 100 Ohm 1% 1W ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 1912 Container: Cut Strips | Americas - 20276 |
|
$0.0303 / $0.1632 | Buy Now |
|
|
Onlinecomponents.com | AEC-Q200 Thick Film Resistor - SMD 2512 - 100 ohm (+/-) 1% - 1W - 200V - TCR (+/-) 200ppm/°C - -55°C to +155°C - Tape&Reel RoHS: Compliant |
43992 In Stock |
|
$0.0573 / $0.1255 | Buy Now |
|
DISTI #
65102062
|
Verical | Res Thick Film 2512 100 Ohm 1% 1W ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 500 Package Multiple: 250 Date Code: 2240 | Americas - 24000 |
|
$0.0868 / $0.1476 | Buy Now |
|
DISTI #
79008664
|
Verical | Res Thick Film 2512 100 Ohm 1% 1W ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 4000 Package Multiple: 4000 | Americas - 16000 |
|
$0.0640 / $0.0660 | Buy Now |
|
DISTI #
CRGCQ2512F100R
|
TME | Resistor: thick film, SMD, 2512, 100Ω, 1W, ±1%, CRGCQ Min Qty: 24000 | 0 |
|
$0.0730 | RFQ |
Part Details for CRGCQ2512F100R
CRGCQ2512F100R CAD Models
CRGCQ2512F100R Part Data Attributes
|
|
CRGCQ2512F100R
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
CRGCQ2512F100R
TE Connectivity
Fixed Resistor, Metal Glaze/thick Film, 1W, 100ohm, 200V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 2512
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks, 1 Day | |
| Samacsys Manufacturer | TE Connectivity | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 6.35 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.2 mm | |
| Packing Method | TR, EMBOSSED, 7 INCH | |
| Physical Dimension | 6.35mm x 3.2mm x .55mm | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 100 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
CRGCQ2512F100R Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for CRGCQ2512F100R is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, CRGCQ2512F100R is compatible with lead-free soldering and is RoHS compliant.
-
The maximum operating temperature range for CRGCQ2512F100R is -55°C to 125°C.
-
Yes, CRGCQ2512F100R is designed to withstand high-vibration applications and meets the requirements of IEC 60068-2-6.
-
The recommended storage condition for CRGCQ2512F100R is in a dry, cool place with a temperature range of 20°C to 30°C and humidity below 60%.
