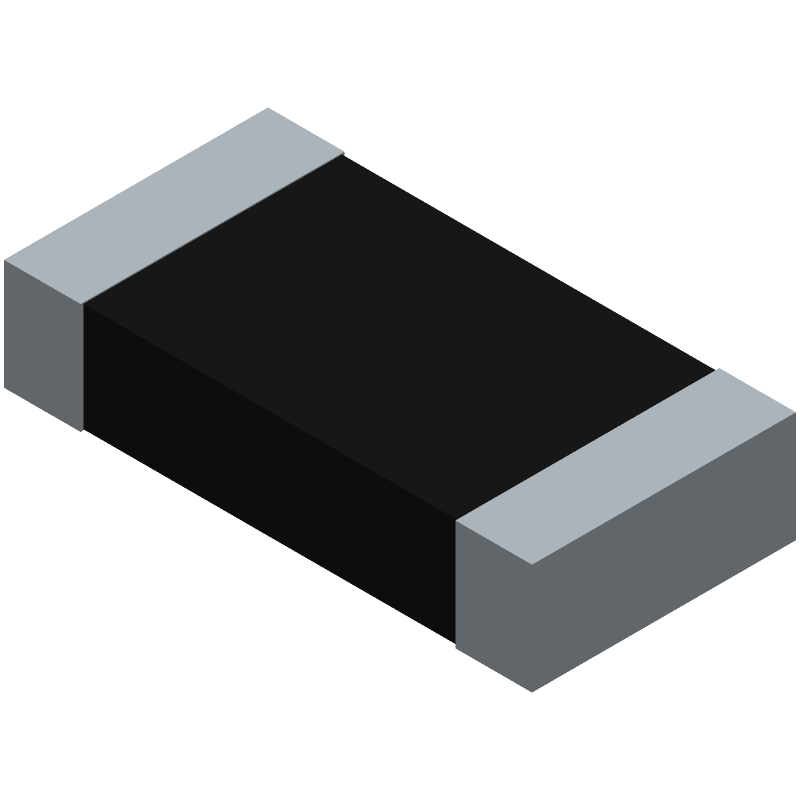

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRG1206F27K by TE Connectivity
Results Overview of CRG1206F27K by TE Connectivity
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CRG1206F27K Information
CRG1206F27K by TE Connectivity is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRG1206F27K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AH1438
|
Newark | Res, 27K, 1%, 0.25W, 1206, Thick Film, Resistor Case Style:1206 [3216 Metric], Resistance:27Kohm, Product Range:Crg Series, Voltage Rating:200V, Resistor Element Material:Thick Film, Power Rating:250Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Neohm Te Connectivity CRG1206F27K RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6650 |
|
$0.0090 | Buy Now |
|
DISTI #
17AH8912
|
Newark | Res, 27K, 1%, 0.25W, 1206, Thick Film, Resistor Case Style:1206 [3216 Metric], Resistance:27Kohm, Product Range:Crg Series, Voltage Rating:200V, Resistor Element Material:Thick Film, Power Rating:250Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Neohm Te Connectivity CRG1206F27K RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 5000 |
|
$0.0100 / $0.0110 | Buy Now |
|
DISTI #
20R2318
|
Newark | Crg1206 1% 27K |Neohm Te Connectivity CRG1206F27K RoHS: Not Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0070 / $0.0080 | Buy Now |
|
DISTI #
1712-CRG1206F27KCT-ND
|
DigiKey | RES SMD 27K OHM 1% 1/4W 1206 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
16609 In Stock |
|
$0.0071 / $0.1000 | Buy Now |
|
DISTI #
1623471-1
|
Avnet Americas | Res Thick Film 1206 27K Ohm 1% 1/4W ?100ppm/?C Molded SMD SMD - Tape and Reel (Alt: 1623471-1) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 11 Weeks, 1 Days Container: Reel | 0 |
|
$0.0077 / $0.0078 | Buy Now |
|
DISTI #
279-CRG1206F27K
|
Mouser Electronics | Thick Film Resistors - SMD 27KOhms 1/4W 200V RoHS: Compliant | 10000 |
|
$0.0070 / $0.0100 | Buy Now |
|
|
Onlinecomponents.com | Thick Film Resistor - SMD 1206 - 27 Kohm (+/-) 1% - 1/4 W - 200V - TCR (+/-) 100ppm/°C - -55°C to +155°C - Tape&Reel RoHS: Compliant | 0 |
|
$0.0055 / $0.0086 | Buy Now |
|
DISTI #
1623471-1
|
Avnet Abacus | Res General Purpose Thick Film 1206 27k Ohm 1 14W 100ppmC Molded Paper TR (Alt: 1623471-1) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | Thick Film Resistor - SMD 1206 - 27 Kohm (+/-) 1% - 1/4 W - 200V - TCR (+/-) 100ppm/°C - -55°C to +155°C - Tape&Reel RoHS: Compliant | 0 |
|
$0.0055 / $0.0086 | Buy Now |
Part Details for CRG1206F27K
CRG1206F27K CAD Models
CRG1206F27K Part Data Attributes
|
|
CRG1206F27K
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
CRG1206F27K
TE Connectivity
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TYCO ELECTRONICS COMPONENTS | |
| Package Description | CHIP, ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 11 Weeks, 1 Day | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | LASER TRIMMABLE | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.55 mm | |
| Packing Method | TR | |
| Physical Dimension | 3.1mm x 1.55mm x .55mm | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Resistance | 27000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
Alternate Parts for CRG1206F27K
This table gives cross-reference parts and alternative options found for CRG1206F27K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRG1206F27K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCWR12X2702FTL | SPC Multicomp | $0.0360 | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP | CRG1206F27K vs MCWR12X2702FTL |
| 560112132005 | Wurth Elektronik | $0.0554 | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP | CRG1206F27K vs 560112132005 |
| RC3216F273GS | Samsung Electro-Mechanics | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, | CRG1206F27K vs RC3216F273GS |
| 232272482703L | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT | CRG1206F27K vs 232272482703L |
| RC3216F273ES | Samsung Electro-Mechanics | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, | CRG1206F27K vs RC3216F273ES |
| WR12X2702FG | Walsin Technology Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, | CRG1206F27K vs WR12X2702FG |
| CR-06FL7---27K | Viking Tech Corp | Check for Price | Fixed Resistor, CHIP | CRG1206F27K vs CR-06FL7---27K |
| CR1206-4W-2702FT | VENKEL LTD | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP | CRG1206F27K vs CR1206-4W-2702FT |
| RS06K273FBL | Fenghua (HK) Electronics Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP | CRG1206F27K vs RS06K273FBL |
| RM12FTN2702 | TA-I Technology Co Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 27000ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, | CRG1206F27K vs RM12FTN2702 |
CRG1206F27K Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for CRG1206F27K is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, CRG1206F27K is compatible with lead-free soldering and meets the requirements of RoHS and WEEE directives.
-
The maximum operating voltage for CRG1206F27K is 50V DC.
-
CRG1206F27K is rated for operation up to 150°C, making it suitable for high-temperature applications.
-
Yes, CRG1206F27K meets the requirements of AEC-Q200, making it suitable for use in automotive applications.
