Relays / Reed Relays / CRF05-1A
Datasheets

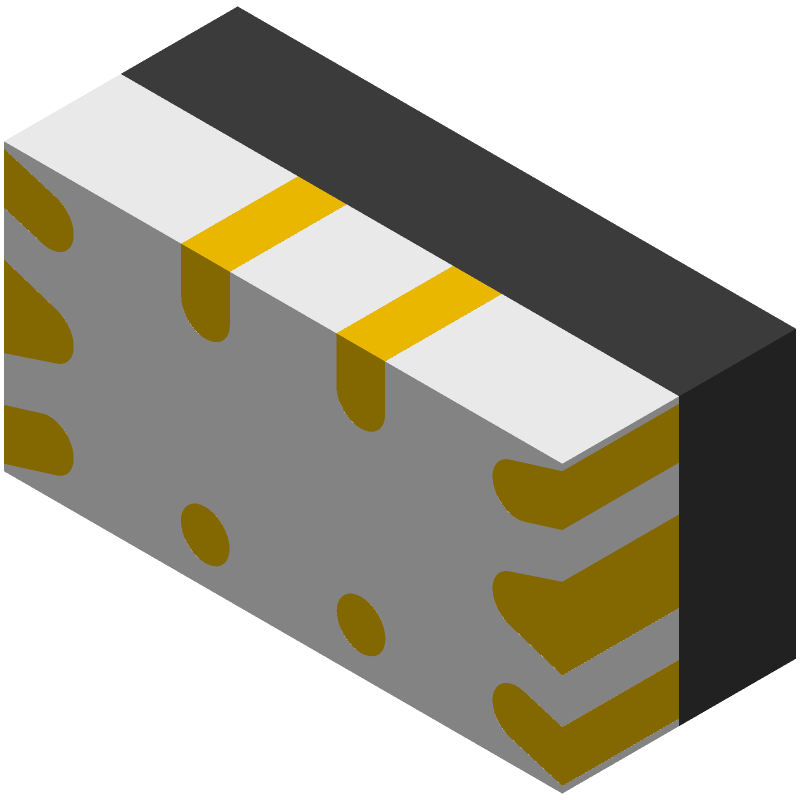

CRF05-1A by: Standex-Meder Electronics

Dry Reed Relay, SPST, Momentary, 0.03A (Coil), 5VDC (Coil), 150mW (Coil), 0.5A (Contact), 170VDC (Contact), 7000MHz, DC Input, AC/DC Output, Surface Mount-Straight,

Part Details for CRF05-1A by Standex-Meder Electronics

Results Overview of CRF05-1A by Standex-Meder Electronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CRF05-1A Information

CRF05-1A by Standex-Meder Electronics is a Reed Relay.
Reed Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for CRF05-1A

Part # Distributor Description Stock Price Buy
DISTI # 59M7371
Newark Reed Relay, Crf Series, 5 Vdc, 150 Ohm, 500 Ma, 170 V, Spst-No Rohs Compliant: Yes |Standexmeder CRF05-1A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 637
  • 1 $10.4800
  • 10 $9.4400
  • 25 $7.3200
  • 50 $7.1000
  • 100 $6.8700
$6.8700 / $10.4800 Buy Now
DISTI # 374-1041-1-ND
DigiKey RELAY RF SPST-NO 500MA 5V Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 5922
In Stock
  • 1 $10.5500
  • 10 $8.7500
  • 25 $8.1056
  • 100 $7.2478
  • 250 $6.7646
  • 500 $6.6555
  • 1,000 $6.1594
$6.1594 / $10.5500 Buy Now
DISTI # 876-CRF05-1A
Mouser Electronics Reed Relays 1 Form A 5V SMT High Frequency RoHS: Compliant 230
  • 1 $10.4800
  • 10 $9.4400
  • 25 $7.3200
  • 100 $6.8700
  • 250 $6.5600
  • 500 $6.3500
  • 1,000 $5.8900
$5.8900 / $10.4800 Buy Now
DISTI # STXCRF05-1A
Heilind Electronics REED RELAY, 1 FORM A, SPST-NO, 5V SURFACE MOUNT HIGH FREQUEN Americas - 2250 in Stock
  • 1,000 $7.1312
  • 2,000 $7.0161
$7.0161 / $7.1312 Buy Now
Onlinecomponents.com Reed Relay, 1 Form A, SPST-NO, 5V Surface Mount High Frequency RoHS: Compliant 4050 In Stock
  • 50 $6.5500
  • 100 $6.2800
  • 250 $5.8000
  • 500 $5.7100
  • 1,000 $5.6300
  • 3,000 $5.4500
  • 5,000 $5.3700
$5.3700 / $6.5500 Buy Now
DISTI # 67610057
Verical Reed Relay 5VDC 150Ohm 0.5A SPST-NO(8.6x4.4x3.55)mm SMD Dry RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2318 Americas - 4050
  • 50 $8.1468
  • 100 $7.6773
  • 250 $7.0303
  • 500 $6.7494
  • 1,000 $6.5465
$6.5465 / $8.1468 Buy Now
DISTI # CRF05-1A
TTI Reed Relays 1 Form A 5V SMT High Frequency RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel Americas - 0
  • 1,000 $5.4900
  • 2,000 $5.3800
  • 3,000 $5.2700
$5.2700 / $5.4900 Buy Now
DISTI # CRF05-1A
IBS Electronics STANDEXMEDER CRF05-1A REED RELAY CRF SERIES 5 VDC 150 OHM 500 MA 170 V SPST-NO Min Qty: 50 Package Multiple: 1 4050
  • 50 $8.5150
  • 100 $8.1640
  • 250 $7.5400
  • 500 $7.4230
  • 1,000 $7.3190
  • 3,000 $7.0850
  • 5,000 $6.9810
$6.9810 / $8.5150 Buy Now
DISTI # STXCRF05-1A
Interstate Connecting Components REED RELAY, 1 FORM A, SPST-NO, 5V SURFACE MOUNT HIGH FREQUEN 750
  • 1,000 $7.1312
  • 2,000 $7.0161
$7.0161 / $7.1312 Buy Now
Master Electronics Reed Relay, 1 Form A, SPST-NO, 5V Surface Mount High Frequency RoHS: Compliant 4050 In Stock
  • 50 $6.5500
  • 100 $6.2800
  • 250 $5.8000
  • 500 $5.7100
  • 1,000 $5.6300
  • 3,000 $5.4500
  • 5,000 $5.3700
$5.3700 / $6.5500 Buy Now
Win Source Electronics RELAY RF SPST-NO 500MA 5V 25400
  • 5 $8.1250
  • 10 $6.6667
  • 16 $6.4583
  • 22 $6.2500
  • 28 $6.0417
  • 37 $5.4167
$5.4167 / $8.1250 Buy Now

Part Details for CRF05-1A

CRF05-1A Part Data Attributes

Parametric Data
CRF05-1A Standex-Meder Electronics
Buy Now Datasheet
Compare Parts:
CRF05-1A Standex-Meder Electronics Dry Reed Relay, SPST, Momentary, 0.03A (Coil), 5VDC (Coil), 150mW (Coil), 0.5A (Contact), 170VDC (Contact), 7000MHz, DC Input, AC/DC Output, Surface Mount-Straight,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MEDER ELECTRONIC AG
Reach Compliance Code unknown
ECCN Code EAR99
Samacsys Manufacturer STANDEXMEDER
Body Breadth 4.4 mm
Body Height 3.6 mm
Body Length or Diameter 8.6 mm
Coil Current(DC)-Max 0.03 A
Coil Operate Voltage(DC) 3.75 V
Coil Power 167 mW
Coil Release Voltage(DC) 0.75 V
Coil Resistance 165 Ω
Coil Voltage-Nom 5 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load .5A@170VAC
Contact Current(AC)-Max 0.5 A
Contact Current(DC)-Max 0.5 A
Contact (DC) Max Rating R Load .5A@170VDC
Contact Resistance 200 mΩ
Contact Voltage(AC)-Max 170 V
Contact Voltage(DC)-Max 170 V
Contact/Output Supply Type AC/DC
End Contact Material Rhodium
Input Switching Control Type Random
Insulation Resistance 100000000000 Ω
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Terminals 10
Operate Time 0.6 ms
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Packing Method TR, 13 INCH
Physical Dimension 8.6mm x 4.4mm x 3.6mm
Relay Action MOMENTARY
Relay Function SPST
Relay Type DRY REED RELAY
Release Time 0.05 ms
Surface Mount NO
Termination Type SOLDER
