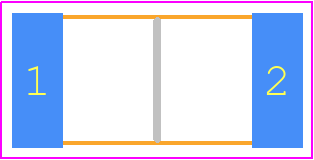

Footprint
-

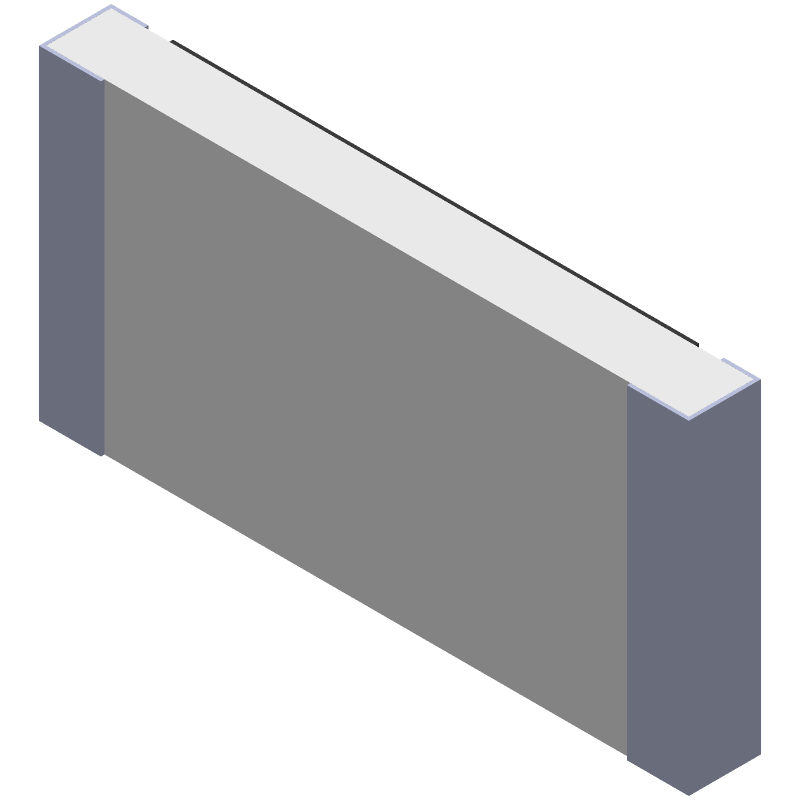

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW251239R0JNEG by Vishay Intertechnologies
Results Overview of CRCW251239R0JNEG by Vishay Intertechnologies
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
CRCW251239R0JNEG Information
CRCW251239R0JNEG by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW251239R0JNEG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86H7457
|
Newark | Res, Aec-Q200, Thick Film, 39R, 1W, 2512, Resistance:39Ohm, Resistance Tolerance:± 5%, Power Rating:1W, Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:500V Rohs Compliant: Yes |Vishay CRCW251239R0JNEG RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 1 Container: Reel | 2000 |
|
$0.0140 | Buy Now |
|
DISTI #
89M6945
|
Newark | Res, Thick Film, 39R, 5%, 1W, 2512, Resistance:39Ohm, Resistance Tolerance:± 5%, Power Rating:1W, Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Product Range:Crcw E3 Seriesrohs Compliant: Yes |Vishay CRCW251239R0JNEG RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1350 | Buy Now |
|
DISTI #
86H7457
|
Avnet Americas | CRCW2512 200 39R 5% E67 e3 - Tape and Reel (Alt: 86H7457) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 3 Days Container: Reel | 2000 Partner Stock |
|
$0.0410 / $0.0430 | Buy Now |
|
DISTI #
CRCW251239R0JNEG
|
Avnet Americas | CRCW2512 200 39R 5% E67 e3 - Tape and Reel (Alt: CRCW251239R0JNEG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1105 / $0.1175 | Buy Now |
|
DISTI #
71-CRCW2512J-39-E3
|
Mouser Electronics | Thick Film Resistors - SMD 1watt 39ohms 5% RoHS: Compliant | 4009 |
|
$0.0400 / $0.2300 | Buy Now |
|
DISTI #
V72:2272_07472631
|
Arrow Electronics | Res Thick Film 2512 39 Ohm 5% 1W ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2033 Container: Cut Strips | Americas - 1 |
|
$0.0172 / $0.0332 | Buy Now |
|
DISTI #
CRCW251239R0JNEG
|
TTI | Thick Film Resistors - SMD 1watt 39ohms 5% pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 6000 In Stock |
|
$0.0460 / $0.0490 | Buy Now |
|
DISTI #
CRCW251239R0JNEG
|
TME | Resistor: thick film, SMD, 2512, 39Ω, 1W, ±5%, -55÷155°C, 200ppm/°C Min Qty: 2000 | 0 |
|
$0.0542 | RFQ |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
CRCW251239R0JNEG
|
Avnet Abacus | CRCW2512 200 39R 5 E67 e3 (Alt: CRCW251239R0JNEG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CRCW251239R0JNEG
CRCW251239R0JNEG CAD Models
CRCW251239R0JNEG Part Data Attributes
|
|
CRCW251239R0JNEG
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW251239R0JNEG
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 1W, 39ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 13 Weeks, 3 Days | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 500 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 6.3 mm | |
| Package Style | SMT | |
| Package Width | 3.15 mm | |
| Packing Method | TR, Blister, 7 Inch | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 39 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 500 V |
CRCW251239R0JNEG Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW251239R0JNEG is 240°C/W, which is typical for a 2512-sized chip resistor.
-
Yes, the CRCW251239R0JNEG is suitable for high-frequency applications due to its low inductance and high-frequency stability.
-
Yes, the CRCW251239R0JNEG is rated for operation up to 155°C, making it suitable for high-temperature environments.
-
Yes, the CRCW251239R0JNEG is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The power rating of the CRCW251239R0JNEG is 0.25W, making it suitable for low-power applications.
