Resistors / Metal Glaze/Thick Film Resistors / CRCW25121K62FKEG
Datasheets
CRCW25121K62FKEG by:

Fixed Resistor, Metal Glaze/thick Film, 1W, 1620ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW25121K62FKEG by Vishay Intertechnologies

Results Overview of CRCW25121K62FKEG by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Energy and Power Systems Medical Imaging Entertainment and Gaming Robotics and Drones

CRCW25121K62FKEG Information

CRCW25121K62FKEG by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW25121K62FKEG

Part # Distributor Description Stock Price Buy
DISTI # 43C5926
Newark Resistor, metal Glaze,1.62Kohms,500Wv,1+/-% Tol,-100,100Ppm-Tc,2512-Case Rohs Compliant: Yes |Vishay CRCW25121K62FKEG RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0750
  • 5,000 $0.0670
  • 10,000 $0.0550
  • 20,000 $0.0470
  • 30,000 $0.0440
  • 50,000 $0.0380
$0.0380 / $0.0750 Buy Now
DISTI # 51P1073
Newark Res, Thick Film, 1K62, 1%, 0.5W, 2512, Resistance:1.62Kohm, Resistance Tolerance:± 1%, Power Rating:1W, Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:500V Rohs Compliant: Yes |Vishay CRCW25121K62FKEG RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 100 $0.0770
$0.0770 Buy Now
DISTI # CRCW25121K62FKEG
Avnet Americas CRCW2512 100 1K62 1% E67 e3 - Tape and Reel (Alt: CRCW25121K62FKEG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.0414
  • 4,000 $0.0387
  • 8,000 $0.0376
  • 12,000 $0.0374
  • 16,000 $0.0372
$0.0372 / $0.0414 Buy Now
DISTI # 71-CRCW2512-1.62K-E3
Mouser Electronics Thick Film Resistors - SMD 1watt 1.62Kohms 1% RoHS: Compliant 5381
  • 1 $0.2700
  • 10 $0.1420
  • 100 $0.0870
  • 1,000 $0.0610
  • 2,000 $0.0530
  • 4,000 $0.0520
  • 10,000 $0.0430
  • 24,000 $0.0410
$0.0410 / $0.2700 Buy Now
DISTI # CRCW25121K62FKEG
TTI Thick Film Resistors - SMD 1watt 1.62Kohms 1% pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 4000
In Stock
  • 2,000 $0.0520
  • 4,000 $0.0500
  • 6,000 $0.0490
  • 10,000 $0.0430
  • 14,000 $0.0420
  • 20,000 $0.0410
$0.0410 / $0.0520 Buy Now
DISTI # CRCW25121K62FKEG
IBS Electronics RES THICK FILM 2512 1.62K OHM 1% 1W &#xB1, 100PPM/C PAD SMD AUTOMOTIVE T/R Min Qty: 2000 Package Multiple: 1 0
  • 2,000 $0.0858
  • 4,000 $0.0842
  • 6,000 $0.0833
  • 8,000 $0.0827
  • 10,000 $0.0807
$0.0807 / $0.0858 Buy Now
DISTI # CRCW25121K62FKEG
Avnet Abacus CRCW2512 100 1K62 1 E67 e3 (Alt: CRCW25121K62FKEG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for CRCW25121K62FKEG

CRCW25121K62FKEG CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

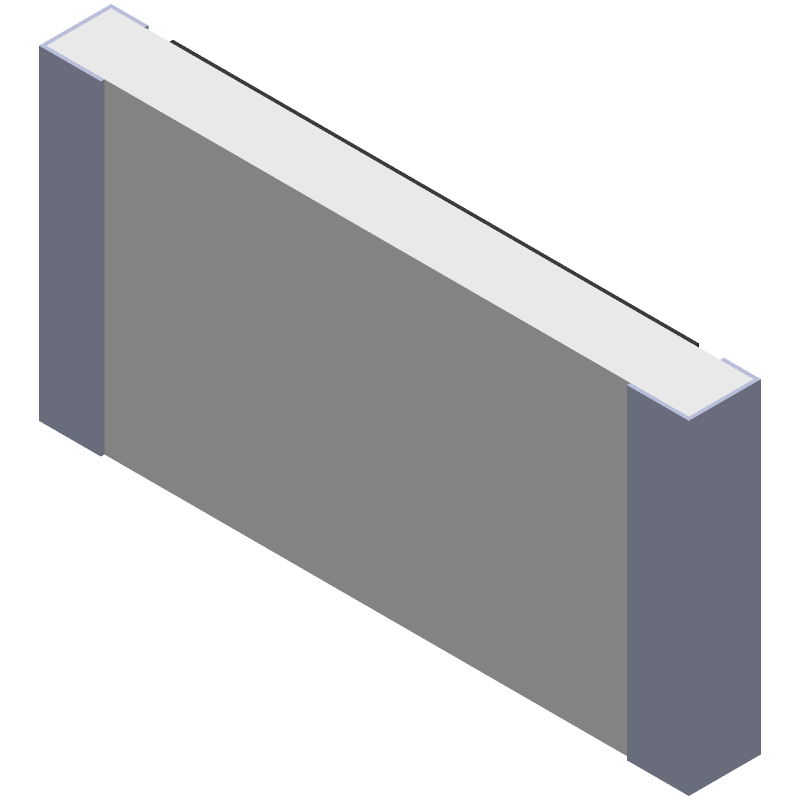

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW25121K62FKEG Part Data Attributes

Parametric Data
CRCW25121K62FKEG Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW25121K62FKEG Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 1W, 1620ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 12 Weeks
Samacsys Manufacturer Vishay
Additional Feature LASER TRIMMABLE, RATED AC VOLTAGE (V): 500
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.6 mm
Package Length 6.3 mm
Package Style SMT
Package Width 3.15 mm
Packing Method TR, Blister, 7 Inch
Rated Power Dissipation (P) 1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 1620 Ω
Resistor Type FIXED RESISTOR
Size Code 2512
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 500 V

CRCW25121K62FKEG Related Parts

CRCW25121K62FKEG Frequently Asked Questions (FAQ)

  • The thermal resistance of the CRCW25121K62FKEG is 350°C/W, which is typical for a 2512-sized chip resistor.

  • Yes, the CRCW25121K62FKEG is suitable for high-frequency applications due to its low inductance and capacitance values.

  • Yes, the CRCW25121K62FKEG is rated for operation up to 155°C, making it suitable for high-temperature environments.

  • Yes, the CRCW25121K62FKEG is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The power rating of the CRCW25121K62FKEG is 0.125W, which is typical for a 2512-sized chip resistor.
