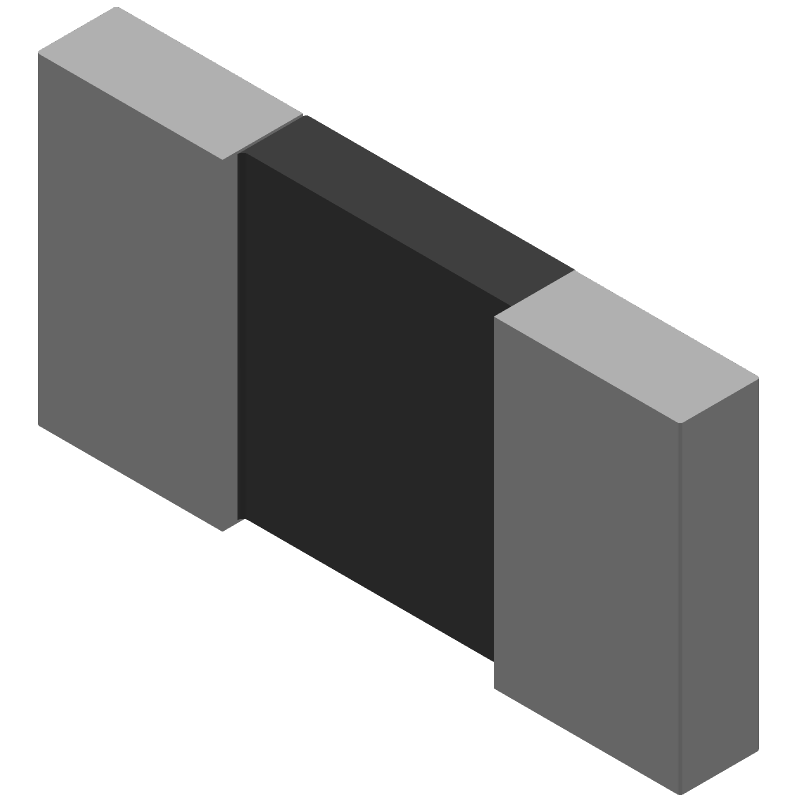

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW20103K90JNEF by Vishay Intertechnologies
Results Overview of CRCW20103K90JNEF by Vishay Intertechnologies
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
CRCW20103K90JNEF Information
CRCW20103K90JNEF by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW20103K90JNEF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89M6910
|
Newark | Res, Thick Film, 3K9, 5%, 0.75W, 2010, Resistance:3.9Kohm, Resistance Tolerance:± 5%, Power Rating:750Mw, Resistor Case/Package:2010 [5025 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:400V Rohs Compliant: Yes |Vishay CRCW20103K90JNEF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2313 |
|
$0.0250 | Buy Now |
|
DISTI #
43C5657
|
Newark | Res, Aec-Q200, Thick Film, 3K9, 2010, Resistance:3.9Kohm, Resistance Tolerance:± 5%, Power Rating:750Mw, Resistor Case/Package:2010 [5025 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:400V Rohs Compliant: Yes |Vishay CRCW20103K90JNEF RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0620 / $0.0720 | Buy Now |
|
DISTI #
26AM3011
|
Newark | Crcw2010 200 3K9 5% E02 E3 |Vishay CRCW20103K90JNEF RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0260 | Buy Now |
|
DISTI #
CRCW20103K90JNEF
|
Avnet Americas | CRCW2010 200 3K9 5% E02 e3 - Tape and Reel (Alt: CRCW20103K90JNEF) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 4000 |
|
$0.0223 / $0.0252 | Buy Now |
|
DISTI #
89M6910
|
Avnet Americas | CRCW2010 200 3K9 5% E02 e3 - Product that comes on tape, but is not reeled (Alt: 89M6910) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Ammo Pack | 2313 Partner Stock |
|
$0.0570 / $0.2500 | Buy Now |
|
DISTI #
71-CRCW2010J-3.9K-E3
|
Mouser Electronics | Thick Film Resistors - SMD 3/4watt 3.9Kohms 5% RoHS: Compliant | 6990 |
|
$0.0300 / $0.2300 | Buy Now |
|
DISTI #
V72:2272_09240389
|
Arrow Electronics | Res Thick Film 2010 3.9K Ohm 5% 0.75W(3/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2313 Container: Cut Strips | Americas - 652 |
|
$0.0395 / $0.2110 | Buy Now |
|
DISTI #
37141841
|
Verical | Res Thick Film 2010 3.9K Ohm 5% 0.75W(3/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 2000 Package Multiple: 1 | Americas - 2313 |
|
$0.0365 | Buy Now |
|
DISTI #
88951933
|
Verical | Res Thick Film 2010 3.9K Ohm 5% 0.75W(3/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 218 Package Multiple: 1 | Americas - 652 |
|
$0.2110 | Buy Now |
|
|
Quest Components | 3200 |
|
$0.0400 / $0.2000 | Buy Now |
Part Details for CRCW20103K90JNEF
CRCW20103K90JNEF CAD Models
CRCW20103K90JNEF Part Data Attributes
|
|
CRCW20103K90JNEF
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW20103K90JNEF
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.75W, 3900ohm, 400V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 13 Weeks, 3 Days | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 400 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 5 mm | |
| Package Style | SMT | |
| Package Width | 2.5 mm | |
| Packing Method | TR, Blister, 7 Inch | |
| Rated Power Dissipation (P) | 0.75 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 3900 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2010 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 400 V |
CRCW20103K90JNEF Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW20103K90JNEF is 240°C/W, which is typical for a 2010-sized chip resistor.
-
Yes, the CRCW20103K90JNEF is suitable for high-frequency applications due to its low inductance and high-frequency stability.
-
The power rating of the CRCW20103K90JNEF at 70°C is 0.125W, which is derated from the maximum power rating of 0.25W at 25°C.
-
Yes, the CRCW20103K90JNEF is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The MSL of the CRCW20103K90JNEF is 1, which means it can withstand exposure to moisture without damage.
