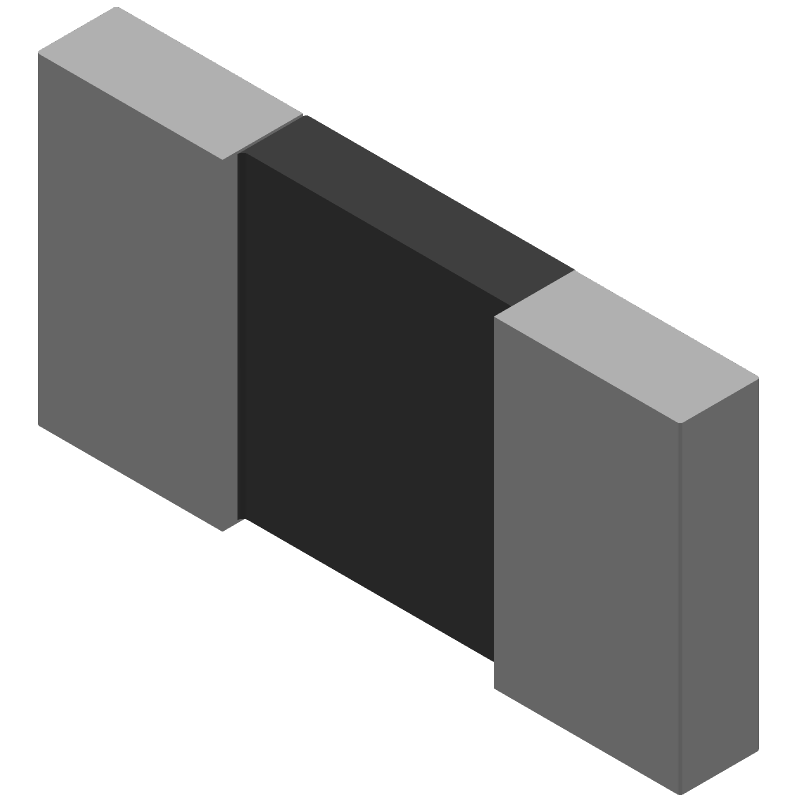

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW201022R1FKEF by Vishay Intertechnologies
Results Overview of CRCW201022R1FKEF by Vishay Intertechnologies
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
CRCW201022R1FKEF Information
CRCW201022R1FKEF by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW201022R1FKEF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53K3710
|
Newark | Res, Thick Film, 22R1, 1%, 0.75W, 2010, Resistance:22.1Ohm, Resistance Tolerance:± 1%, Power Rating:750Mw, Resistor Case/Package:2010 [5025 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:400Vrohs Compliant: Yes |Vishay CRCW201022R1FKEF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 199 |
|
$0.2300 | Buy Now |
|
DISTI #
42K3583
|
Newark | Res, Thick Film, 22R1, 1%, 0.75W, 2010, Reel, Resistance:22.1Ohm, Resistance Tolerance:± 1%, Power Rating:750Mw, Resistor Case/Package:2010 [5025 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW201022R1FKEF RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0950 / $0.1690 | Buy Now |
|
DISTI #
53K3710
|
Avnet Americas | CRCW2010 100 22R1 1% E02 e3 - Product that comes on tape, but is not reeled (Alt: 53K3710) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Ammo Pack | 199 Partner Stock |
|
$0.0740 | Buy Now |
|
DISTI #
CRCW201022R1FKEF
|
Avnet Americas | CRCW2010 100 22R1 1% E02 e3 - Tape and Reel (Alt: CRCW201022R1FKEF) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0346 / $0.0353 | Buy Now |
|
DISTI #
71-CRCW2010-22.1-E3
|
Mouser Electronics | Thick Film Resistors - SMD 3/4watt 22.1ohms 1% RoHS: Compliant | 3498 |
|
$0.0760 / $0.2300 | Buy Now |
|
DISTI #
V79:2366_26615691
|
Arrow Electronics | Res Thick Film 2010 22.1 Ohm 1% 0.75W(3/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Date Code: 2051 | Americas - 4531 |
|
$0.0748 | Buy Now |
|
DISTI #
62337162
|
Verical | Res Thick Film 2010 22.1 Ohm 1% 0.75W(3/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 77 Package Multiple: 1 Date Code: 2051 | Americas - 4531 |
|
$0.0748 | Buy Now |
|
|
Bristol Electronics | 3946 |
|
RFQ | ||
|
|
Quest Components | 3156 |
|
$0.0675 / $0.2250 | Buy Now | |
|
|
Quest Components | 36 |
|
$0.1050 / $0.2100 | Buy Now |
Part Details for CRCW201022R1FKEF
CRCW201022R1FKEF CAD Models
CRCW201022R1FKEF Part Data Attributes
|
|
CRCW201022R1FKEF
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW201022R1FKEF
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.75W, 22.1ohm, 400V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 13 Weeks, 3 Days | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 400 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 5 mm | |
| Package Style | SMT | |
| Package Width | 2.5 mm | |
| Packing Method | TR, Blister, 7 Inch | |
| Rated Power Dissipation (P) | 0.75 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 22.1 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2010 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 400 V |
CRCW201022R1FKEF Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW201022R1FKEF is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.
-
Yes, the CRCW201022R1FKEF is a thick-film resistor designed for high-frequency applications up to 100 MHz. It has a low inductance and capacitance, making it suitable for high-speed circuits.
-
The CRCW201022R1FKEF has a maximum operating temperature of 155°C (311°F). While it can tolerate high temperatures, it's not recommended for extreme temperature environments. For high-temperature applications, consider using a resistor with a higher temperature rating.
-
The power rating of the CRCW201022R1FKEF at 70°C (158°F) is 0.125 W. This is lower than the maximum power rating of 0.25 W at 20°C (68°F) due to derating.
-
Yes, the CRCW201022R1FKEF is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium above the allowed limits.
