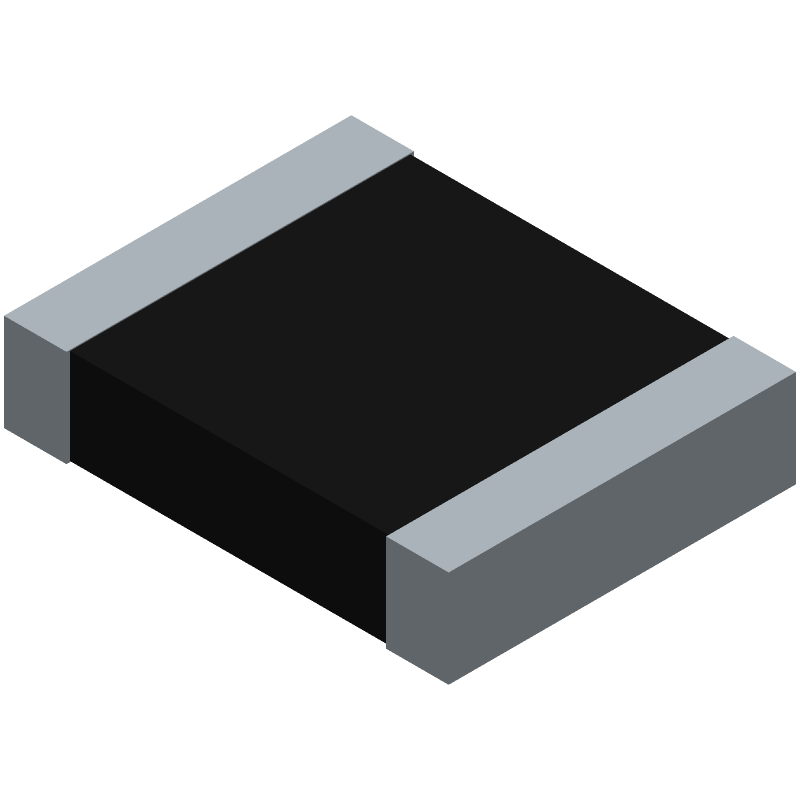

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW12106R20FKEAHP by Vishay Intertechnologies
Results Overview of CRCW12106R20FKEAHP by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CRCW12106R20FKEAHP Information
CRCW12106R20FKEAHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW12106R20FKEAHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52X1713
|
Newark | Crcw1210-Hp 100 6R2 1% Et1 E3 Rohs Compliant: Yes |Vishay CRCW12106R20FKEAHP RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1320 / $0.1720 | Buy Now |
|
DISTI #
CRCW12106R20FKEAHP
|
Avnet Americas | CRCW1210-HP 100 6R2 1% ET1 E3 - Tape and Reel (Alt: CRCW12106R20FKEAHP) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1392 / $0.1421 | Buy Now |
|
DISTI #
71-CRCW12106R20FKEAH
|
Mouser Electronics | Thick Film Resistors - SMD 3/4watt 6.2ohms 1% High Power AEC-Q200 RoHS: Compliant | 19548 |
|
$0.1420 / $0.7200 | Buy Now |
|
DISTI #
CRCW12106R20FKEAHP
|
TTI | Thick Film Resistors - SMD 3/4watt 6.2ohms 1% High Power AEC-Q200 pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Americas - 50000 In Stock |
|
$0.1420 / $0.1450 | Buy Now |
Part Details for CRCW12106R20FKEAHP
CRCW12106R20FKEAHP CAD Models
CRCW12106R20FKEAHP Part Data Attributes
|
|
CRCW12106R20FKEAHP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW12106R20FKEAHP
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.75W, 6.2ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 3.2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 2.5 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.75 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 6.2 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
CRCW12106R20FKEAHP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW12106R20FKEAHP is 260°C (500°F) for 10 seconds or less.
-
Yes, the CRCW12106R20FKEAHP is a high-frequency resistor with a self-resonant frequency of approximately 100 MHz, making it suitable for high-frequency applications.
-
The power rating of the CRCW12106R20FKEAHP decreases with temperature. At 125°C, the power rating is 0.75 W, and at 150°C, it is 0.5 W.
-
Yes, the CRCW12106R20FKEAHP is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The MSL of the CRCW12106R20FKEAHP is 1, which means it can withstand exposure to moisture for up to 30 days without requiring baking before reflow soldering.
