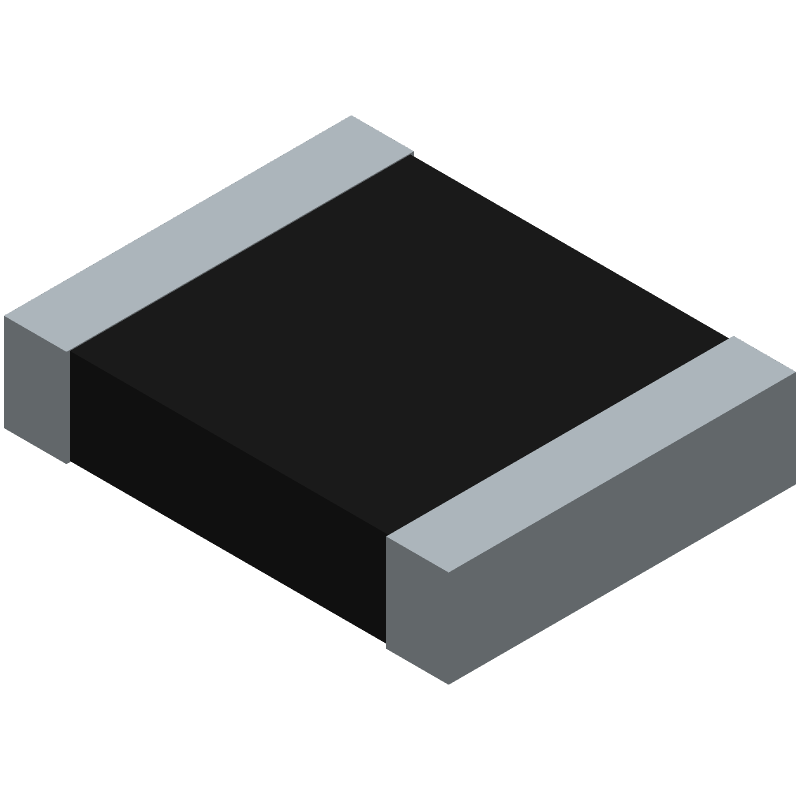

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW12102R00FKEAHP by Vishay Intertechnologies
Results Overview of CRCW12102R00FKEAHP by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CRCW12102R00FKEAHP Information
CRCW12102R00FKEAHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW12102R00FKEAHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52X1578
|
Newark | Crcw1210-Hp 100 2R0 1% Et1 E3 Rohs Compliant: Yes |Vishay CRCW12102R00FKEAHP RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1830 / $0.2380 | Buy Now |
|
DISTI #
CRCW12102R00FKEAHP
|
Avnet Americas | CRCW1210-HP 100 2R0 1% ET1 E3 - Tape and Reel (Alt: CRCW12102R00FKEAHP) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1661 / $0.1949 | Buy Now |
|
DISTI #
71-CRCW12102R00FKEAH
|
Mouser Electronics | Thick Film Resistors - SMD 3/4watt 2ohms 1% High Power AEC-Q200 RoHS: Compliant | 743 |
|
$0.1800 / $0.6600 | Buy Now |
|
|
Future Electronics | 2 Ohms 1% 0.75W, 3/4W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200 RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks | 0 |
|
$0.3080 | Buy Now |
|
|
Future Electronics | 2 Ohms 1% 0.75W, 3/4W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 |
5000 null |
|
$0.2950 | Buy Now |
|
DISTI #
CRCW12102R00FKEAHP
|
IBS Electronics | RES THICK FILM 1210 2 OHM 1% 0.75W(3/4W) ±, 100PPM/C PAD SMD AUTOMOTIVE T/R Min Qty: 5000 Package Multiple: 1 | 5000 |
|
$0.3835 | Buy Now |
|
DISTI #
CRCW12102R00FKEAHP
|
Avnet Abacus | CRCW1210HP 100 2R0 1 ET1 E3 (Alt: CRCW12102R00FKEAHP) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CRCW12102R00FKEAHP
CRCW12102R00FKEAHP CAD Models
CRCW12102R00FKEAHP Part Data Attributes
|
|
CRCW12102R00FKEAHP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW12102R00FKEAHP
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.75W, 2ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 3.2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 2.5 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.75 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 2 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
CRCW12102R00FKEAHP Frequently Asked Questions (FAQ)
-
The power rating of the CRCW12102R00FKEAHP resistor is 0.125W.
-
Yes, the CRCW12102R00FKEAHP resistor is suitable for high-frequency applications due to its thin-film construction and low inductance.
-
The operating temperature range of the CRCW12102R00FKEAHP resistor is -55°C to 155°C.
-
Yes, the CRCW12102R00FKEAHP resistor is RoHS compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
-
The tolerance of the CRCW12102R00FKEAHP resistor is 1%.
