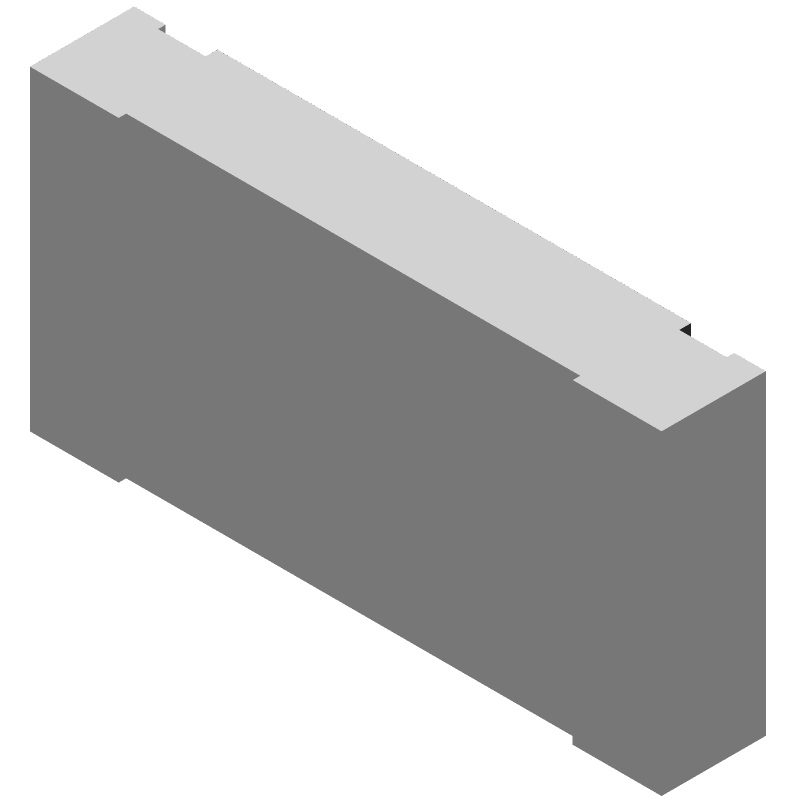

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW12064K99FKEA by Vishay Intertechnologies
Results Overview of CRCW12064K99FKEA by Vishay Intertechnologies
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
CRCW12064K99FKEA Information
CRCW12064K99FKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW12064K99FKEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53K2361
|
Newark | Res, Thick Film, 4K99, 1%, 0.25W, 1206, Reel, Resistance:4.99Kohm, Resistance Tolerance:± 1%, Power Rating:250Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW12064K99FKEA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 75000 |
|
$0.0160 / $0.0170 | Buy Now |
|
DISTI #
53K2360
|
Newark | Res, Thick Film, 4K99, 1%, 0.25W, 1206, Resistance:4.99Kohm, Resistance Tolerance:± 1%, Power Rating:250Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW12064K99FKEA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 45362 |
|
$0.0200 / $0.0260 | Buy Now |
|
DISTI #
61M5577
|
Newark | Surface Mount Thick Film Resistor, Aec-Q200 Crcw Series, 4.99 Kohm, 250 Mw, - 1%, 200 V Rohs Compliant: Yes |Vishay CRCW12064K99FKEA RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 22220 |
|
$0.0210 / $0.1010 | Buy Now |
|
DISTI #
CRCW12064K99FKEA
|
Avnet Americas | SMD Chip Resistor, 4.99 kOhm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose - Tape and Reel (Alt: CRCW12064K99FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 360000 |
|
$0.0037 | Buy Now |
|
DISTI #
53K2361
|
Avnet Americas | SMD Chip Resistor, 4.99 kOhm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose - Tape and Reel (Alt: 53K2361) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 4 Days Container: Reel | 75000 Partner Stock |
|
$0.0070 / $0.0080 | Buy Now |
|
DISTI #
53K2360
|
Avnet Americas | SMD Chip Resistor, 4.99 kOhm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose - Product that comes on tape, but is not reeled (Alt: 53K2360) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Ammo Pack | 23142 Partner Stock |
|
$0.0190 / $0.1000 | Buy Now |
|
DISTI #
71-CRCW1206-4.99K-E3
|
Mouser Electronics | Thick Film Resistors - SMD 1/4watt 4.99Kohms 1% RoHS: Compliant | 42005 |
|
$0.0080 / $0.1300 | Buy Now |
|
DISTI #
V36:1790_07473080
|
Arrow Electronics | Res Thick Film 1206 4.99K Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Date Code: 2348 | Americas - 965000 |
|
$0.0073 / $0.0092 | Buy Now |
|
DISTI #
V72:2272_07473080
|
Arrow Electronics | Res Thick Film 1206 4.99K Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2346 Container: Cut Strips | Americas - 1038 |
|
$0.0133 / $0.0935 | Buy Now |
|
|
Future Electronics | CRCW Series 1206 0.25 W 4.99 kOhm ±1 % ±100 ppm/K SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel | 80000Reel |
|
$0.0059 / $0.0065 | Buy Now |
Part Details for CRCW12064K99FKEA
CRCW12064K99FKEA CAD Models
CRCW12064K99FKEA Part Data Attributes
|
|
CRCW12064K99FKEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW12064K99FKEA
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4990ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 13 Weeks, 4 Days | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 4990 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
CRCW12064K99FKEA Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW12064K99FKEA is 350°C/W, which is relatively low, making it suitable for high-power applications.
-
Yes, the CRCW12064K99FKEA is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds in the atmosphere.
-
The recommended soldering temperature for the CRCW12064K99FKEA is between 260°C to 280°C, with a maximum exposure time of 10 seconds.
-
Yes, the CRCW12064K99FKEA is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
-
The MSL of the CRCW12064K99FKEA is 1, which means it can withstand normal humidity levels without requiring special handling or storage procedures.
