Resistors / Metal Glaze/Thick Film Resistors / CRCW12064K12FKEA
Datasheets
CRCW12064K12FKEA by:

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4120ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW12064K12FKEA by Vishay Intertechnologies

Results Overview of CRCW12064K12FKEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

CRCW12064K12FKEA Information

CRCW12064K12FKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW12064K12FKEA

Part # Distributor Description Stock Price Buy
DISTI # 42K5033
Newark Res, Thick Film, 4K12, 1%, 0.25W, 1206, Reel, Resistance:4.12Kohm, Resistance Tolerance:± 1%, Power Rating:250Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW12064K12FKEA RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 15,000 $0.0200
$0.0200 Buy Now
DISTI # CRCW12064K12FKEA
Avnet Americas SMD Chip Resistor, CRCW Series, 4.12 kohm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film - Tape and Reel (Alt: CRCW12064K12FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel 15000
  • 5,000 $0.0063
  • 10,000 $0.0063
  • 20,000 $0.0062
  • 30,000 $0.0062
  • 40,000 $0.0062
$0.0062 / $0.0063 Buy Now
DISTI # CRCW12064K12FKEA
Avnet Americas SMD Chip Resistor, CRCW Series, 4.12 kohm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film - Tape and Reel (Alt: CRCW12064K12FKEA) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 15,000 $0.0070
  • 25,000 $0.0069
  • 40,000 $0.0067
  • 75,000 $0.0047
  • 150,000 $0.0046
$0.0046 / $0.0070 Buy Now
DISTI # 71-CRCW1206-4.12K-E3
Mouser Electronics Thick Film Resistors - SMD 1/4watt 4.12Kohms 1% RoHS: Compliant 10379
  • 1 $0.1100
  • 10 $0.0500
  • 100 $0.0270
  • 1,000 $0.0140
  • 5,000 $0.0080
  • 10,000 $0.0070
$0.0070 / $0.1100 Buy Now
Future Electronics CRCW Series 1206 0.25 W 4.12 kOhm ±1 % ±100 ppm/K SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel 95000
Reel
  • 5,000 $0.0065
  • 15,000 $0.0063
  • 20,000 $0.0062
  • 50,000 $0.0060
  • 75,000 $0.0059
$0.0059 / $0.0065 Buy Now
Bristol Electronics   15000
RFQ
Quest Components RES,METAL GLAZE,4.12KOHMS,200WV,1+/-% TOL,-100,100PPM-TC,1206-CASE 4000
  • 1 $0.0960
  • 314 $0.0320
  • 1,564 $0.0192
$0.0192 / $0.0960 Buy Now
DISTI # CRCW12064K12FKEA
TTI Thick Film Resistors - SMD 1/4watt 4.12Kohms 1% pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 250000
In Stock
  • 5,000 $0.0067
  • 10,000 $0.0065
  • 20,000 $0.0064
  • 30,000 $0.0062
$0.0062 / $0.0067 Buy Now
Future Electronics CRCW Series 1206 0.25 W 4.12 kOhm �1 % �100 ppm/K SMT Thick Film Chip Resistor Min Qty: 5000 Package Multiple: 5000 100000
null
  • 5,000 $0.0065
  • 15,000 $0.0063
  • 20,000 $0.0063
  • 50,000 $0.0061
  • 75,000 $0.0059
$0.0059 / $0.0065 Buy Now
DISTI # CRCW12064K12FKEA
IBS Electronics CRCW SERIES 1206 0.25 W 4.12 KOHM &#xB1, 1 % &#xB1, 100 PPM/K SMT THICK FILM CHIP RESISTOR Min Qty: 5000 Package Multiple: 1 105000
  • 5,000 $0.0084
  • 15,000 $0.0082
  • 20,000 $0.0081
  • 50,000 $0.0079
  • 75,000 $0.0077
$0.0077 / $0.0084 Buy Now
DISTI # CRCW12064K12FKEA
Avnet Abacus SMD Chip Resistor CRCW Series 412 kohm 1 250 mW 1206 3216 Metric Thick Film (Alt: CRCW12064K12FKEA) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for CRCW12064K12FKEA

CRCW12064K12FKEA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

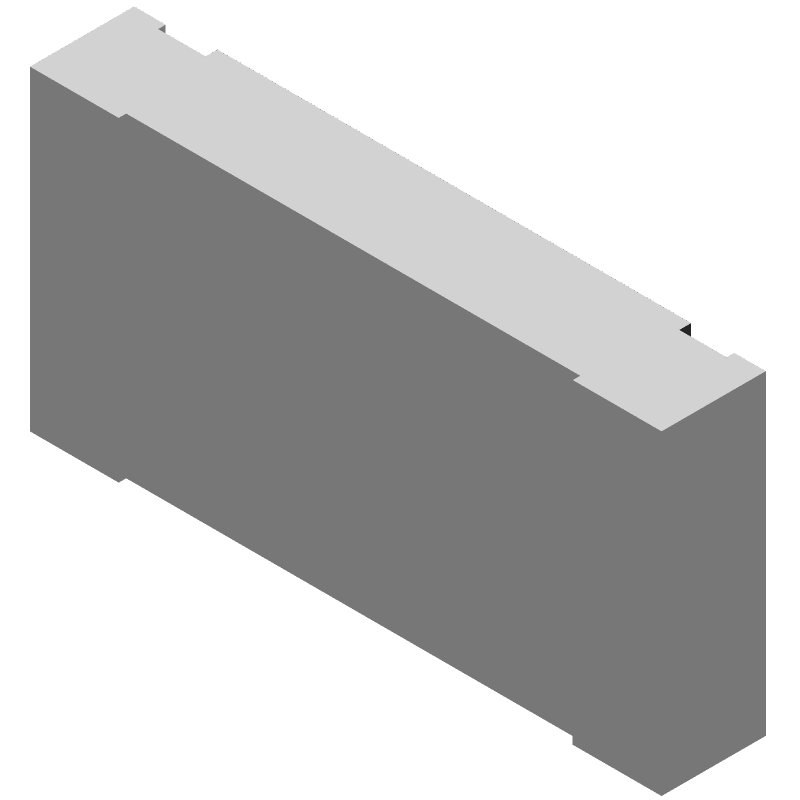

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW12064K12FKEA Part Data Attributes

Parametric Data
CRCW12064K12FKEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW12064K12FKEA Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4120ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 12 Weeks
Samacsys Manufacturer Vishay
Additional Feature LASER TRIMMABLE, RATED AC VOLTAGE (V): 200
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 3.2 mm
Package Style SMT
Package Width 1.6 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 4120 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 200 V

CRCW12064K12FKEA Related Parts

CRCW12064K12FKEA Frequently Asked Questions (FAQ)

  • The thermal resistance of the CRCW12064K12FKEA is 350°C/W, which is relatively low, making it suitable for high-power applications.

  • Yes, the CRCW12064K12FKEA is designed to be resistant to moisture and humidity, with a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels without degradation.

  • Yes, the CRCW12064K12FKEA is suitable for high-frequency applications up to 1 GHz, due to its low inductance and capacitance values.

  • Yes, the CRCW12064K12FKEA is compliant with the Restriction of Hazardous Substances (RoHS) and Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) directives, making it suitable for use in environmentally friendly designs.

  • The recommended soldering temperature for the CRCW12064K12FKEA is between 260°C to 280°C, with a maximum soldering time of 3 seconds.
