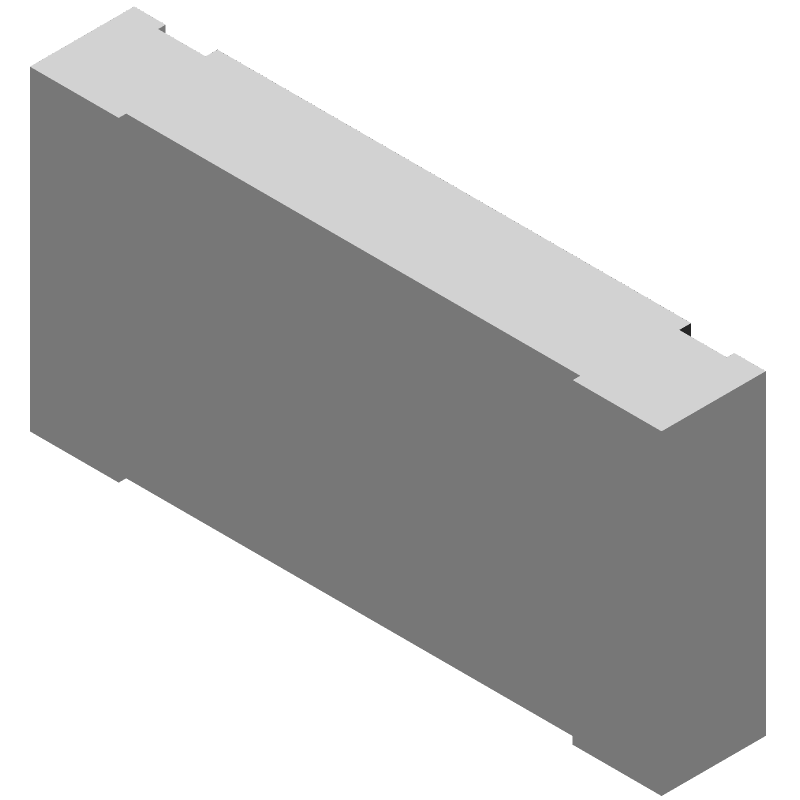

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW1206470KJNEA by Vishay Intertechnologies
Results Overview of CRCW1206470KJNEA by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
CRCW1206470KJNEA Information
CRCW1206470KJNEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW1206470KJNEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71-CRCW1206J-470K-E3
|
Mouser Electronics | Thick Film Resistors - SMD 1/4watt 470Kohms 5% RoHS: Compliant | 16519 |
|
$0.0070 / $0.1000 | Buy Now |
|
DISTI #
V36:1790_09199169
|
Arrow Electronics | Res Thick Film 1206 470K Ohm 5% 0.25W(1/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Date Code: 2429 | Americas - 990000 |
|
$0.0064 / $0.0075 | Buy Now |
|
DISTI #
V79:2366_27013672
|
Arrow Electronics | Res Thick Film 1206 470K Ohm 5% 0.25W(1/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Date Code: 1705 | Americas - 2 |
|
Buy Now | |
|
DISTI #
83719846
|
Verical | Res Thick Film 1206 470K Ohm 5% 0.25W(1/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Date Code: 2429 | Americas - 990000 |
|
$0.0064 / $0.0075 | Buy Now |
|
DISTI #
43714869
|
Verical | Res Thick Film 1206 470K Ohm 5% 0.25W(1/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5953 Package Multiple: 1 Date Code: 1912 | Americas - 25115 |
|
$0.0047 | Buy Now |
|
DISTI #
CRCW1206470KJNEA
|
TTI | Thick Film Resistors - SMD 1/4watt 470Kohms 5% pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Americas - 160000 In Stock |
|
$0.0051 / $0.0057 | Buy Now |
|
|
LCSC | 0.25W Thick Film Resistors 200ppm/ 5% 470k 1206 Chip Resistor - Surface Mount ROHS | 1840 |
|
$0.0456 / $0.0780 | Buy Now |
|
|
New Advantage Corporation | D25/CRCW1206 200 470K 5% ET1 RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 45000 |
|
$0.0100 | Buy Now |
Part Details for CRCW1206470KJNEA
CRCW1206470KJNEA CAD Models
CRCW1206470KJNEA Part Data Attributes
|
|
CRCW1206470KJNEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW1206470KJNEA
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 470000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 200 V |
CRCW1206470KJNEA Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW1206470KJNEA is 350°C/W, which is typical for a 1206-sized thick-film resistor.
-
While the CRCW1206470KJNEA is a general-purpose resistor, it may not be the best choice for high-frequency applications due to its thick-film construction, which can introduce parasitic inductance and capacitance. For high-frequency applications, consider using a thin-film resistor or a specialized RF resistor.
-
The CRCW1206470KJNEA has a maximum operating temperature of 155°C, which is suitable for most industrial and commercial applications. However, if you need a resistor for high-temperature applications (e.g., automotive or aerospace), you may need to consider a specialized high-temperature resistor.
-
Yes, the CRCW1206470KJNEA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
-
The power rating of the CRCW1206470KJNEA is 0.25 W, which is typical for a 1206-sized resistor. Make sure to derate the power accordingly based on the operating temperature and other environmental factors.
