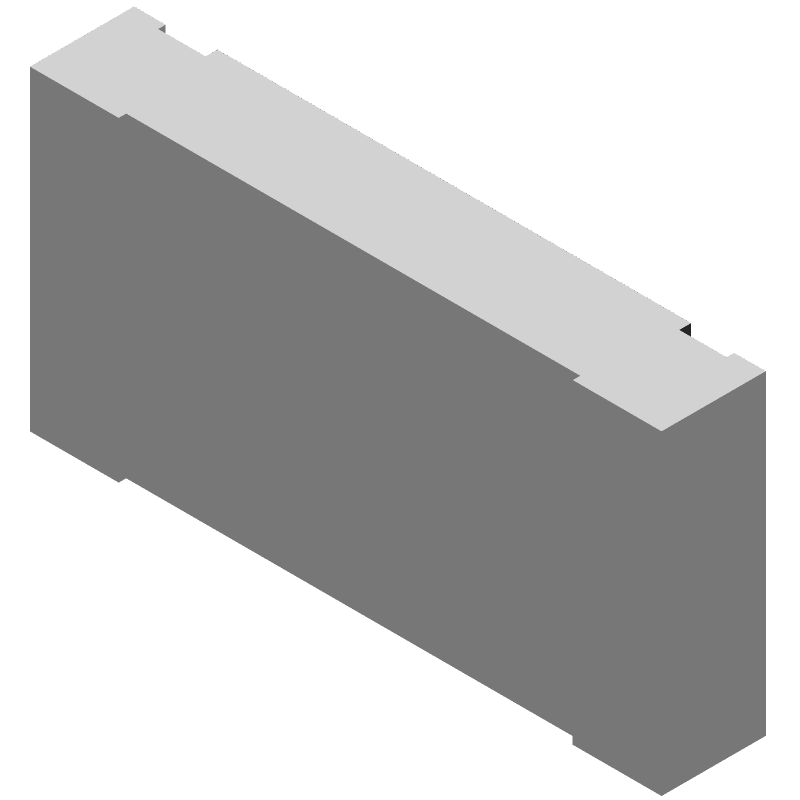

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW120616R0FKEA by Vishay Intertechnologies
Results Overview of CRCW120616R0FKEA by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
CRCW120616R0FKEA Information
CRCW120616R0FKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW120616R0FKEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K4830
|
Newark | Res, Thick Film, 16R, 1%, 0.25W, 1206, Reel, Resistance:16Ohm, Resistance Tolerance:± 1%, Power Rating:250Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW120616R0FKEA RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0170 / $0.0190 | Buy Now |
|
DISTI #
CRCW120616R0FKEA
|
Avnet Americas | D25/CRCW1206 100 16R 1% ET1 e3 - Tape and Reel (Alt: CRCW120616R0FKEA) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0078 / $0.0080 | Buy Now |
|
DISTI #
71-CRCW1206-16-E3
|
Mouser Electronics | Thick Film Resistors - SMD 1/4watt 16ohms 1% RoHS: Compliant | 14847 |
|
$0.0070 / $0.1100 | Buy Now |
|
DISTI #
E02:0323_02202138
|
Arrow Electronics | Res Thick Film 1206 16 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks Date Code: 2506 | Europe - 100000 |
|
$0.1250 | Buy Now |
|
DISTI #
88156518
|
Verical | Res Thick Film 1206 16 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Date Code: 2506 | Americas - 100000 |
|
$0.0221 | Buy Now |
|
|
ComSIT USA | STANDARD THICK FILM CHIP RESISTOR Fixed Resistor, Metal Glaze/thick Film, 0.25W, 16ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
CRCW120616R0FKEA
|
IBS Electronics | RES THICK FILM 1206 16 OHM 1% 0.25W(1/4W) ±, 100PPM/C PAD SMD AUTOMOTIVE T/R Min Qty: 5000 Package Multiple: 1 | 90000 |
|
$0.0090 / $0.0099 | Buy Now |
|
DISTI #
CRCW120616R0FKEA
|
Avnet Abacus | D25CRCW1206 100 16R 1 ET1 e3 (Alt: CRCW120616R0FKEA) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 1337 |
|
RFQ | |
|
|
Vyrian | Resistors | 19950 |
|
RFQ |
Part Details for CRCW120616R0FKEA
CRCW120616R0FKEA CAD Models
CRCW120616R0FKEA Part Data Attributes
|
|
CRCW120616R0FKEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW120616R0FKEA
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 16ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 16 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
CRCW120616R0FKEA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW120616R0FKEA is 260°C (500°F) for 10 seconds or less.
-
Yes, the CRCW120616R0FKEA is a thick-film resistor designed for high-frequency applications up to 100 MHz.
-
The power rating of the CRCW120616R0FKEA at 70°C is 0.125 W.
-
Yes, the CRCW120616R0FKEA is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
-
The MSL of the CRCW120616R0FKEA is 1, which means it can withstand exposure to moisture for up to 30 days without requiring baking before reflow soldering.
