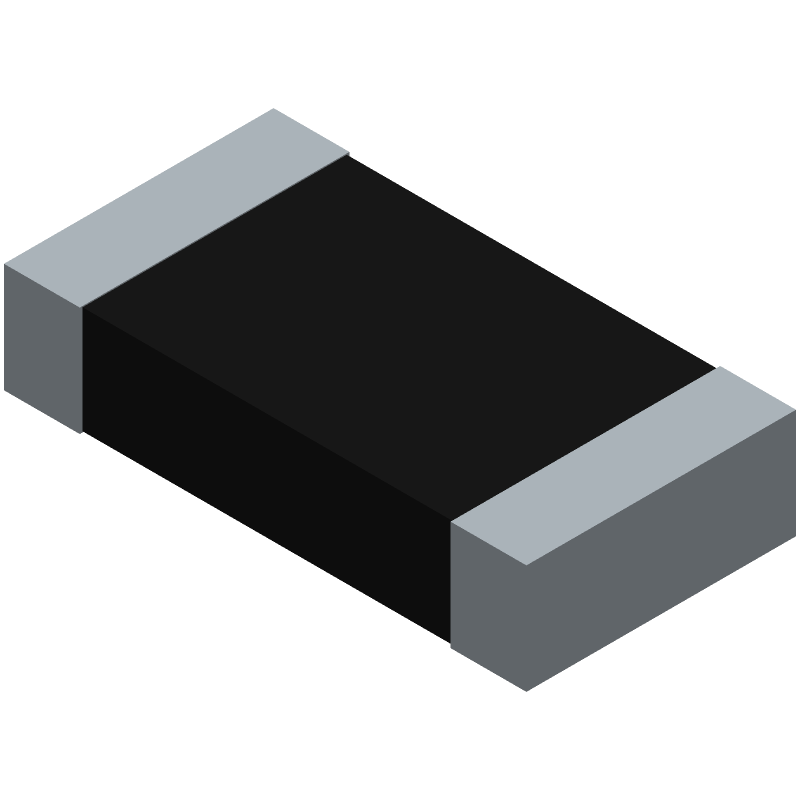

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW120615K0FKEAHP by Vishay Intertechnologies
Results Overview of CRCW120615K0FKEAHP by Vishay Intertechnologies
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CRCW120615K0FKEAHP Information
CRCW120615K0FKEAHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW120615K0FKEAHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41R4846
|
Newark | Surface Mount Chip Resistor, Thick Film, Aec-Q200 Crcw Series, 15 Kohm, 750 Mw, 1%, 200 V Rohs Compliant: Yes |Vishay CRCW120615K0FKEAHP RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2800 |
|
$0.0610 / $0.0860 | Buy Now |
|
DISTI #
24T7350
|
Newark | Surface Mount Chip Resistor, Thick Film, Aec-Q200 Crcw Series, 15 Kohm, 750 Mw, 1%, 200 V Rohs Compliant: Yes |Vishay CRCW120615K0FKEAHP RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0430 / $0.0750 | Buy Now |
|
DISTI #
CRCW120615K0FKEAHP
|
Avnet Americas | SMD Chip Resistor, 15 kohm, ? 1%, 750 mW, 1206 [3216 Metric], Thick Film, Pulse Proof, High Power - Tape and Reel (Alt: CRCW120615K0FKEAHP) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0332 / $0.0468 | Buy Now |
|
DISTI #
71-CRCW120615K0FKEAH
|
Mouser Electronics | Thick Film Resistors - SMD 3/4watt 15Kohms 1% High Power AEC-Q200 RoHS: Compliant | 12774 |
|
$0.0390 / $0.2400 | Buy Now |
|
DISTI #
V72:2272_09538640
|
Arrow Electronics | Res Thick Film 1206 15K Ohm 1% 0.75W(3/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2216 Container: Cut Strips | Americas - 956 |
|
$0.0429 / $0.1104 | Buy Now |
|
|
Onlinecomponents.com | Thick Film Chip Resistor - 15 kohm ±1% - 0.25W - TCR: ±100ppm/°C - 1206 - Tape&Reel RoHS: Compliant |
4110 Partner Stock |
|
$0.0595 / $0.0788 | Buy Now |
|
DISTI #
69263948
|
Verical | Res Thick Film 1206 15K Ohm 1% 0.75W(3/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 662 Package Multiple: 1 Date Code: 2327 | Americas - 4780 |
|
$0.0516 | Buy Now |
|
DISTI #
61704580
|
Verical | Res Thick Film 1206 15K Ohm 1% 0.75W(3/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 132 Package Multiple: 1 Date Code: 2216 | Americas - 956 |
|
$0.0429 | Buy Now |
|
|
Bristol Electronics | 5000 |
|
RFQ | ||
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 PPM, 15000 OHM, SURFACE MOUNT, 1206, HI POWER, LEAD FREE | 4000 |
|
$0.0663 / $0.2210 | Buy Now |
Part Details for CRCW120615K0FKEAHP
CRCW120615K0FKEAHP CAD Models
CRCW120615K0FKEAHP Part Data Attributes
|
|
CRCW120615K0FKEAHP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW120615K0FKEAHP
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.75W, 15000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 3.1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.75 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 15000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
CRCW120615K0FKEAHP Frequently Asked Questions (FAQ)
-
The power rating of the CRCW120615K0FKEAHP resistor is 0.125W.
-
Yes, the CRCW120615K0FKEAHP resistor is suitable for high-frequency applications due to its thin-film construction and low inductance.
-
The operating temperature range of the CRCW120615K0FKEAHP resistor is -55°C to 155°C.
-
Yes, the CRCW120615K0FKEAHP resistor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The tolerance of the CRCW120615K0FKEAHP resistor is ±1%.
