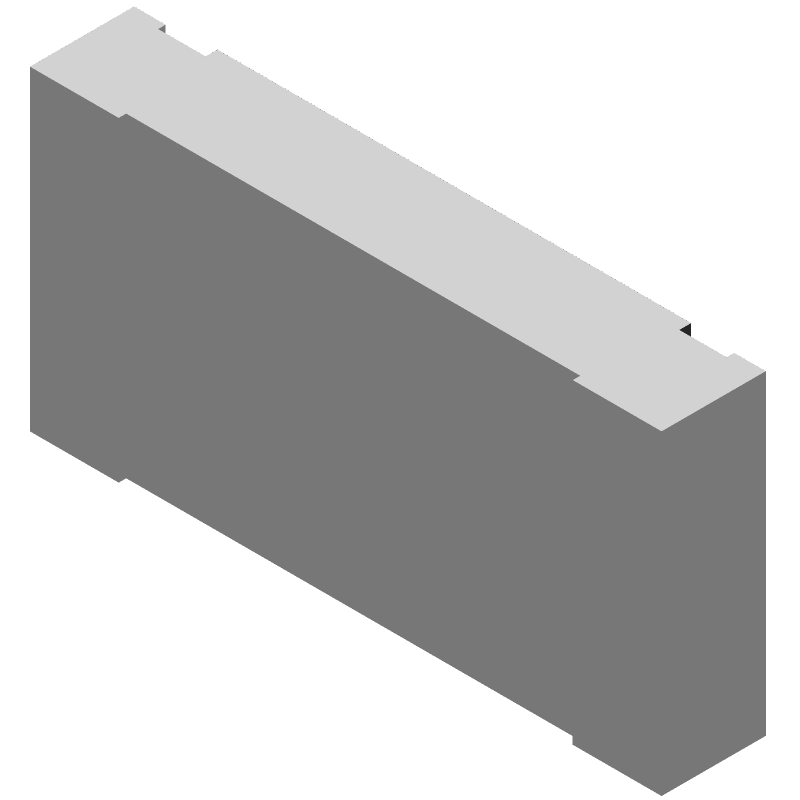

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW120610K0FKEC by Vishay Intertechnologies
Results Overview of CRCW120610K0FKEC by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
CRCW120610K0FKEC Information
CRCW120610K0FKEC by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW120610K0FKEC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49P1973
|
Newark | D25/Crcw1206 100 10K 1% Et6 E3 Rohs Compliant: Yes |Vishay CRCW120610K0FKEC RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0240 | Buy Now |
|
DISTI #
CRCW120610K0FKEC
|
Avnet Americas | D25/CRCW1206 100 10K 1% ET6 e3 - Tape and Reel (Alt: CRCW120610K0FKEC) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0096 / $0.0098 | Buy Now |
|
DISTI #
71-CRCW120610K0FKEC
|
Mouser Electronics | Thick Film Resistors - SMD 10K OHM 1% RoHS: Compliant | 54484 |
|
$0.0170 / $0.1100 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.25 W, 1 %, 100 ppm, 10000 ohm, SURFACE MOUNT, 1206 | 20000 |
|
$0.0071 / $0.0376 | Buy Now |
|
DISTI #
CRCW120610K0FKEC
|
TTI | Thick Film Resistors - SMD 10K OHM 1% pbFree: Pb-Free Min Qty: 20000 Package Multiple: 20000 Container: Reel | Americas - 0 |
|
$0.0062 / $0.0076 | Buy Now |
|
DISTI #
CRCW120610K0FKEC
|
Avnet Abacus | D25CRCW1206 100 10K 1 ET6 e3 (Alt: CRCW120610K0FKEC) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 15 Weeks, 0 Days | Abacus - 200000 |
|
Buy Now | |
|
|
Vyrian | Resistors | 44490 |
|
RFQ |
Part Details for CRCW120610K0FKEC
CRCW120610K0FKEC CAD Models
CRCW120610K0FKEC Part Data Attributes
|
|
CRCW120610K0FKEC
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW120610K0FKEC
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, Paper, 13 Inch | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 10000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
CRCW120610K0FKEC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW120610K0FKEC is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.
-
Yes, the CRCW120610K0FKEC is a thick-film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
-
The CRCW120610K0FKEC has a maximum operating temperature of 155°C (311°F), but it can be derated for higher temperatures. Consult the datasheet for derating information.
-
Yes, the CRCW120610K0FKEC is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other environmentally conscious applications.
-
The power rating of the CRCW120610K0FKEC at 70°C is 0.125W. Consult the datasheet for power derating information at higher temperatures.
