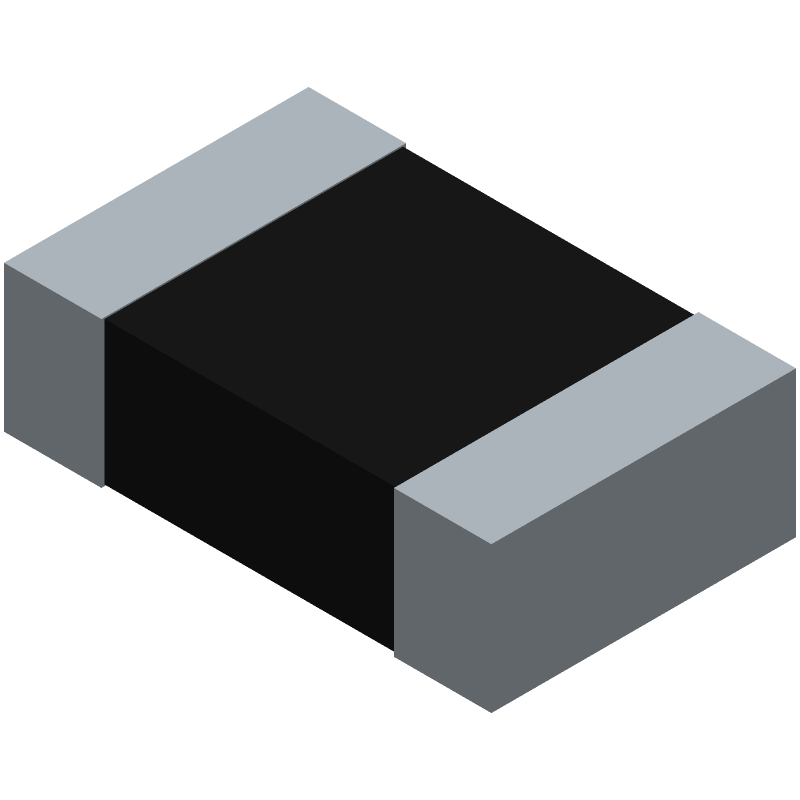

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW08055R11FKEAHP by Vishay Intertechnologies
Results Overview of CRCW08055R11FKEAHP by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CRCW08055R11FKEAHP Information
CRCW08055R11FKEAHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW08055R11FKEAHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AJ5574
|
Newark | Crcw0805-Hp 100 5R11 1% Et1 E3 |Vishay CRCW08055R11FKEAHP RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0280 | Buy Now |
|
DISTI #
CRCW08055R11FKEAHP
|
Avnet Americas | CRCW0805-HP 100 5R11 1% ET1 e3 - Tape and Reel (Alt: CRCW08055R11FKEAHP) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0269 / $0.0274 | Buy Now |
|
DISTI #
71-CRCW08055R11FKEAH
|
Mouser Electronics | Thick Film Resistors - SMD CRCW0805-HP 100 5R11 1% ET1 e3 RoHS: Compliant | 0 |
|
$0.0260 / $0.1500 | Order Now |
|
DISTI #
CRCW08055R11FKEAHP
|
Avnet Abacus | CRCW0805HP 100 5R11 1 ET1 e3 (Alt: CRCW08055R11FKEAHP) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CRCW08055R11FKEAHP
CRCW08055R11FKEAHP CAD Models
CRCW08055R11FKEAHP Part Data Attributes
|
|
CRCW08055R11FKEAHP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW08055R11FKEAHP
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.5W, 5.11ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V): 150 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 5.11 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 150 V |
CRCW08055R11FKEAHP Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW08055R11FKEAHP is 350°C/W, which is typical for a 0805 package size.
-
Yes, the CRCW08055R11FKEAHP is suitable for high-frequency applications up to 1 GHz due to its low inductance and high-frequency stability.
-
The MSL of the CRCW08055R11FKEAHP is 1, which means it can withstand a maximum of 30°C/60% RH for 168 hours without being damaged.
-
Yes, the CRCW08055R11FKEAHP meets the requirements of the AEC-Q200 standard, making it suitable for use in automotive applications.
-
The recommended soldering temperature profile for the CRCW08055R11FKEAHP is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
