CRCW08052K70JNEAC by:

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP

Part Details for CRCW08052K70JNEAC by Vishay Intertechnologies

Results Overview of CRCW08052K70JNEAC by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Telecommunications Renewable Energy Automotive

CRCW08052K70JNEAC Information

CRCW08052K70JNEAC by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW08052K70JNEAC

Part # Distributor Description Stock Price Buy
DISTI # 59AC3845
Newark D12/Crcw0805-C 200 2K7 5% Et1 E3 Rohs Compliant: Yes |Vishay CRCW08052K70JNEAC RoHS: Compliant Min Qty: 40000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # CRCW08052K70JNEAC
Avnet Americas D12/CRCW0805-C 200 2K7 5% ET1 e3 - Tape and Reel (Alt: CRCW08052K70JNEAC) RoHS: Compliant Min Qty: 40000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 40,000 $0.0049
  • 50,000 $0.0049
  • 90,000 $0.0049
  • 200,000 $0.0048
  • 400,000 $0.0048
$0.0048 / $0.0049 Buy Now
DISTI # 71-CRCW08052K70JNEAC
Mouser Electronics Thick Film Resistors - SMD 1/8Watt 2.7Kohms 5% Commercial Use RoHS: Compliant 0
  • 1 $0.1200
  • 10 $0.0290
  • 100 $0.0160
  • 500 $0.0100
  • 1,000 $0.0090
  • 5,000 $0.0060
  • 10,000 $0.0050
  • 25,000 $0.0040
$0.0040 / $0.1200 Order Now

Part Details for CRCW08052K70JNEAC

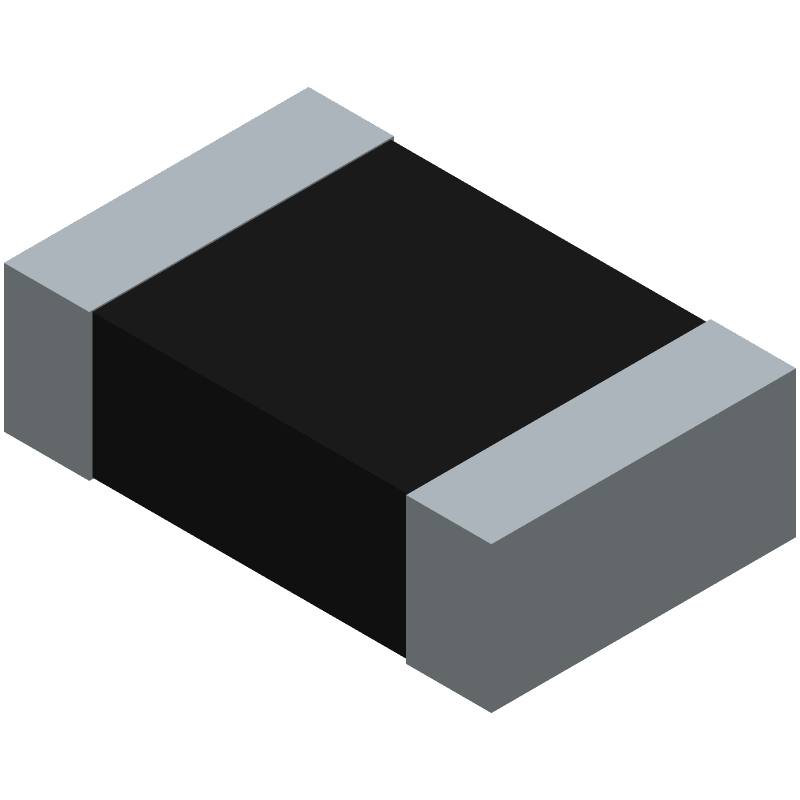

CRCW08052K70JNEAC CAD Models

CRCW08052K70JNEAC Part Data Attributes

CRCW08052K70JNEAC Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW08052K70JNEAC Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 16 Weeks
Samacsys Manufacturer Vishay
Additional Feature RATED AC COLTAGE(V): 150
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Resistance 2700 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 150 V

Alternate Parts for CRCW08052K70JNEAC

This table gives cross-reference parts and alternative options found for CRCW08052K70JNEAC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW08052K70JNEAC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MC0805P-272-JTQ RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, 200ppm/Cel, 0805, CRCW08052K70JNEAC vs MC0805P-272-JTQ
RC0805JRG072K7 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP CRCW08052K70JNEAC vs RC0805JRG072K7
NRCP10J272TRF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT CRCW08052K70JNEAC vs NRCP10J272TRF
FCF05JV-272 Prosperity Dielectrics Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, CRCW08052K70JNEAC vs FCF05JV-272
FCF05JY272 Prosperity Dielectrics Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, CRCW08052K70JNEAC vs FCF05JY272
CR0805-10W-272JSNT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 2700ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, CRCW08052K70JNEAC vs CR0805-10W-272JSNT-13
RM73B2AT272J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP CRCW08052K70JNEAC vs RM73B2AT272J
RK73A2ALTE272J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP CRCW08052K70JNEAC vs RK73A2ALTE272J
RK73B2ARTTPD272J KOA Corporation Check for Price RES,SMT,THICK FILM,2.7K OHMS,150WV,5% +/-TOL,-200,200PPM TC,0805 CASE CRCW08052K70JNEAC vs RK73B2ARTTPD272J
RK73K2ATP2.7KOHMJ KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2700ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, CRCW08052K70JNEAC vs RK73K2ATP2.7KOHMJ
