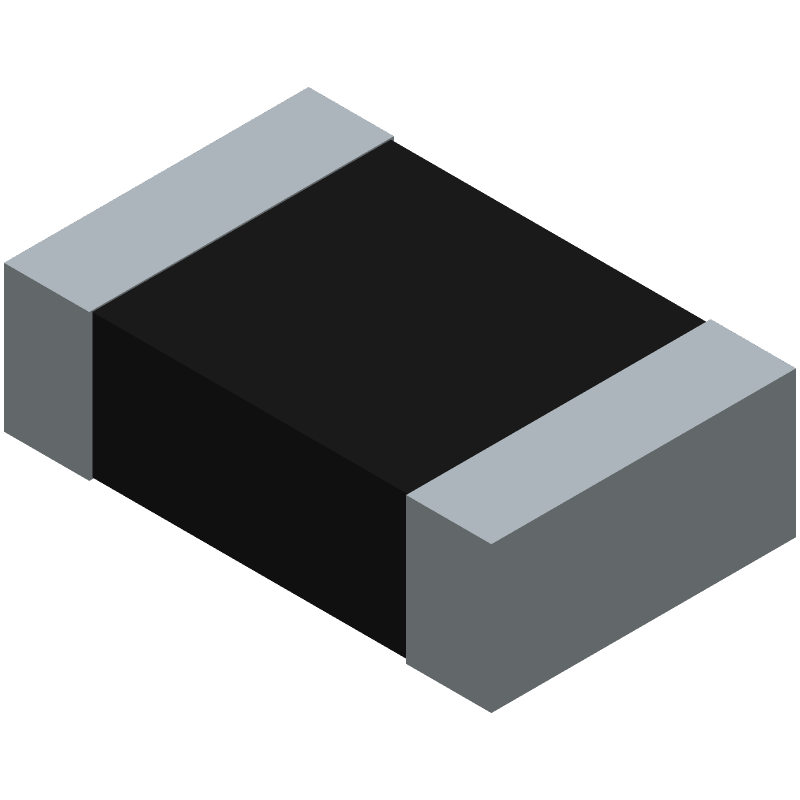

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW0805180RFKEAC by Vishay Intertechnologies
Results Overview of CRCW0805180RFKEAC by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Telecommunications
Renewable Energy
Automotive
CRCW0805180RFKEAC Information
CRCW0805180RFKEAC by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW0805180RFKEAC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
59AC3779
|
Newark | D12/Crcw0805-C 100 180R 1% Et1 E3 Rohs Compliant: Yes |Vishay CRCW0805180RFKEAC RoHS: Compliant Min Qty: 40000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0240 | Buy Now |
|
DISTI #
CRCW0805180RFKEAC
|
Avnet Americas | D12/CRCW0805-C 100 180R 1% ET1 e3 - Tape and Reel (Alt: CRCW0805180RFKEAC) RoHS: Compliant Min Qty: 40000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.0067 / $0.0069 | Buy Now |
|
DISTI #
71-CRCW0805180RFKEAC
|
Mouser Electronics | Thick Film Resistors - SMD 1/8Watt 180ohms 1% Commercial Use RoHS: Compliant | 32444 |
|
$0.0060 / $0.1000 | Buy Now |
|
DISTI #
CRCW0805180RFKEAC
|
TTI | Thick Film Resistors - SMD 1/8Watt 180ohms 1% Commercial Use pbFree: Pb-Free Min Qty: 60000 Package Multiple: 5000 Container: Reel | Americas - 0 |
|
$0.0037 / $0.0042 | Buy Now |
|
DISTI #
CRCW0805180RFKEAC
|
Avnet Abacus | D12CRCW0805C 100 180R 1 ET1 e3 (Alt: CRCW0805180RFKEAC) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Resistors | 89185 |
|
RFQ |
Part Details for CRCW0805180RFKEAC
CRCW0805180RFKEAC CAD Models
CRCW0805180RFKEAC Part Data Attributes
|
|
CRCW0805180RFKEAC
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW0805180RFKEAC
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.125W, 180ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC COLTAGE(V): 150 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 2 mm | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.125 W | |
| Rated Temperature | 70 °C | |
| Resistance | 180 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 150 V |
Alternate Parts for CRCW0805180RFKEAC
This table gives cross-reference parts and alternative options found for CRCW0805180RFKEAC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW0805180RFKEAC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RMCS0805FT180R | SEI Stackpole Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 180ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT | CRCW0805180RFKEAC vs RMCS0805FT180R |
| RC0805FR-10180RL | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 180ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | CRCW0805180RFKEAC vs RC0805FR-10180RL |
| RC0805FR-13180RL | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 180ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | CRCW0805180RFKEAC vs RC0805FR-13180RL |
| RC0805FR-07180RP | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 180ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | CRCW0805180RFKEAC vs RC0805FR-07180RP |
| CRCW0805180RFKEBC | Vishay Intertechnologies | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 180ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | CRCW0805180RFKEAC vs CRCW0805180RFKEBC |
CRCW0805180RFKEAC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW0805180RFKEAC is 260°C (500°F) for 10 seconds or less.
-
Yes, the CRCW0805180RFKEAC is a thick-film resistor designed for high-frequency applications up to 100 MHz.
-
The power rating of the CRCW0805180RFKEAC at 70°C is 0.125 W.
-
Yes, the CRCW0805180RFKEAC is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
-
The MSL of the CRCW0805180RFKEAC is 1, which means it can withstand exposure to moisture for up to 30 days without requiring baking before reflow soldering.
