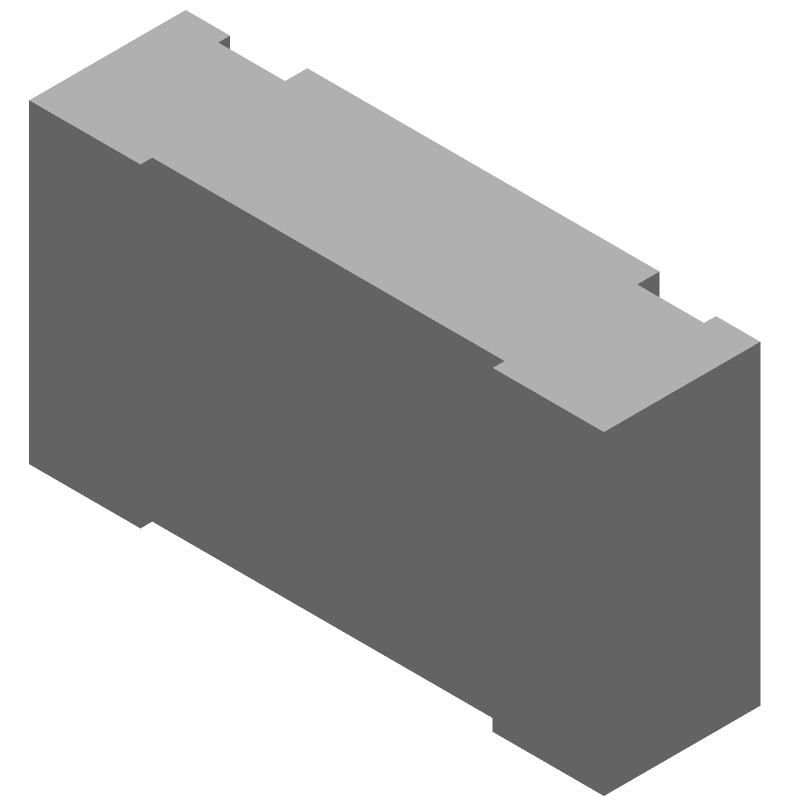

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW06036K80FKTA by Vishay Intertechnologies
Results Overview of CRCW06036K80FKTA by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
CRCW06036K80FKTA Information
CRCW06036K80FKTA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW06036K80FKTA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07J4336
|
Newark | Thick Film Chip Resistor, Resistance:6.8Kohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Product Range:Crcw Series Rohs Compliant: No |Vishay CRCW06036K80FKTA RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0280 / $0.0450 | Buy Now |
|
DISTI #
CRCW06036K80FKTA
|
Avnet Americas | SMD Chip Resistor, 6.8 kohm, ? 1%, 100 mW, 0603 [1608 Metric], Thick Film, General Purpose - Tape and Reel (Alt: CRCW06036K80FKTA) RoHS: Not Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$0.0162 / $0.0166 | Buy Now |
|
DISTI #
71-CRCW0603-6.8K
|
Mouser Electronics | Thick Film Resistors - SMD 1/10watt 6.8Kohms 1% RoHS: Not Compliant | 15343 |
|
$0.0150 / $0.1500 | Buy Now |
|
|
Bristol Electronics | 5000 |
|
RFQ | ||
|
|
Quest Components | 4000 |
|
$0.0495 / $0.1650 | Buy Now | |
|
DISTI #
CRCW06036K80FKTA
|
TTI | Thick Film Resistors - SMD 1/10watt 6.8Kohms 1% Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Americas - 15000 In Stock |
|
$0.0147 / $0.0186 | Buy Now |
|
DISTI #
CRCW06036K80FKTA
|
Avnet Abacus | SMD Chip Resistor 68 kohm 1 100 mW 0603 1608 Metric Thick Film General Purpose (Alt: CRCW06036K80FKTA) RoHS: Not Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days | Abacus - 20000 |
|
Buy Now | |
|
|
New Advantage Corporation | Res SMD 0603 6K80 1% 100ppm 0.1W Non RoHS T&R RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 15000 |
|
$0.0290 / $0.0313 | Buy Now |
Part Details for CRCW06036K80FKTA
CRCW06036K80FKTA CAD Models
CRCW06036K80FKTA Part Data Attributes
|
|
CRCW06036K80FKTA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW06036K80FKTA
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 6800ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE (V): 75 | |
| Construction | Rectangular | |
| JESD-609 Code | e0 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.55 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.85 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 6800 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
CRCW06036K80FKTA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW06036K80FKTA is 260°C (500°F) for 10 seconds or less.
-
Yes, the CRCW06036K80FKTA is a thick-film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
-
The CRCW06036K80FKTA has a maximum operating temperature of 155°C (311°F). While it can tolerate high temperatures, it's not recommended for extreme high-temperature applications.
-
The power rating of the CRCW06036K80FKTA at 70°C (158°F) is 0.36W. This is lower than the maximum power rating of 0.5W at 25°C (77°F) due to derating.
-
Yes, the CRCW06036K80FKTA is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's requirements for lead-free and other hazardous substance restrictions.
