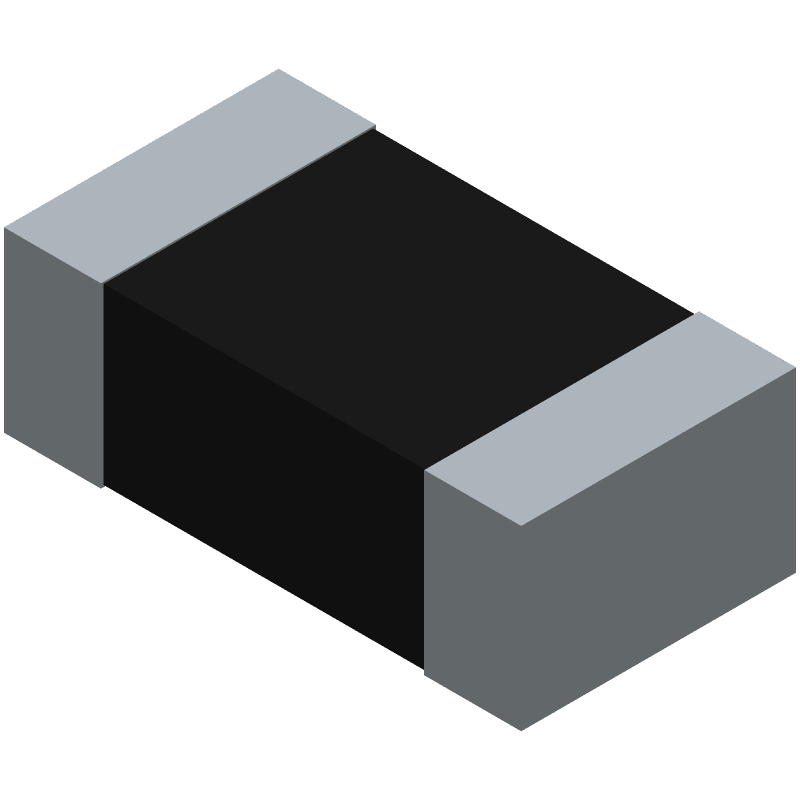

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW06036K80FKEAHP by Vishay Intertechnologies
Results Overview of CRCW06036K80FKEAHP by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CRCW06036K80FKEAHP Information
CRCW06036K80FKEAHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW06036K80FKEAHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41R4692
|
Newark | Smd Chip Resistor, 6.8 Kohm, 1%, 330 Mw, 0603 [1608 Metric], Thick Film, Pulse Proof, High Power Rohs Compliant: Yes |Vishay CRCW06036K80FKEAHP RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 35665 |
|
$0.0340 / $0.0550 | Buy Now |
|
DISTI #
51X9884
|
Newark | Surface Mount Chip Resistor, Thick Film, Aec-Q200 Crcw Series, 6.8 Kohm, 250 Mw, 1%, 75 V Rohs Compliant: Yes |Vishay CRCW06036K80FKEAHP RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0180 / $0.0300 | Buy Now |
|
DISTI #
CRCW06036K80FKEAHP
|
Avnet Americas | CRCW0603-HP 100 6K8 1% ET1 e3 - Tape and Reel (Alt: CRCW06036K80FKEAHP) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0128 / $0.0165 | Buy Now |
|
DISTI #
71-CRCW06036K80FKEAH
|
Mouser Electronics | Thick Film Resistors - SMD 0.33W 6.8Kohm 1% High Power AEC-Q200 RoHS: Compliant | 9449 |
|
$0.0160 / $0.1600 | Buy Now |
|
DISTI #
V72:2272_09535772
|
Arrow Electronics | Res Thick Film 0603 6.8K Ohm 1% 0.33W(1/3W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 1729 Container: Cut Strips | Americas - 10 |
|
$0.0013 / $0.0064 | Buy Now |
|
DISTI #
CRCW06036K80FKEAHP
|
TTI | Thick Film Resistors - SMD 0.33W 6.8Kohm 1% High Power AEC-Q200 pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Americas - 50000 In Stock |
|
$0.0168 / $0.0226 | Buy Now |
|
DISTI #
SMC-CRCW06036K80FKEAHP
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 19058 |
|
RFQ | |
|
DISTI #
CRCW06036K80FKEAHP
|
Avnet Abacus | CRCW0603HP 100 6K8 1 ET1 e3 (Alt: CRCW06036K80FKEAHP) RoHS: Compliant Min Qty: 20000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | CRCW06036K80FKEAHP HIGH POWER 0,25W RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 85000 |
|
$0.0100 | Buy Now |
|
|
Vyrian | Resistors | 20847 |
|
RFQ |
Part Details for CRCW06036K80FKEAHP
CRCW06036K80FKEAHP CAD Models
CRCW06036K80FKEAHP Part Data Attributes
|
|
CRCW06036K80FKEAHP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW06036K80FKEAHP
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 6800ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V): 75 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.85 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.33 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 6800 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
CRCW06036K80FKEAHP Frequently Asked Questions (FAQ)
-
The power rating of the CRCW06036K80FKEAHP resistor is 0.0625W (1/16W).
-
Yes, the CRCW06036K80FKEAHP resistor is suitable for high-frequency applications due to its thin-film construction and low inductance.
-
The operating temperature range of the CRCW06036K80FKEAHP resistor is -55°C to 155°C.
-
Yes, the CRCW06036K80FKEAHP resistor is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
-
The tolerance of the CRCW06036K80FKEAHP resistor is ±1%.
