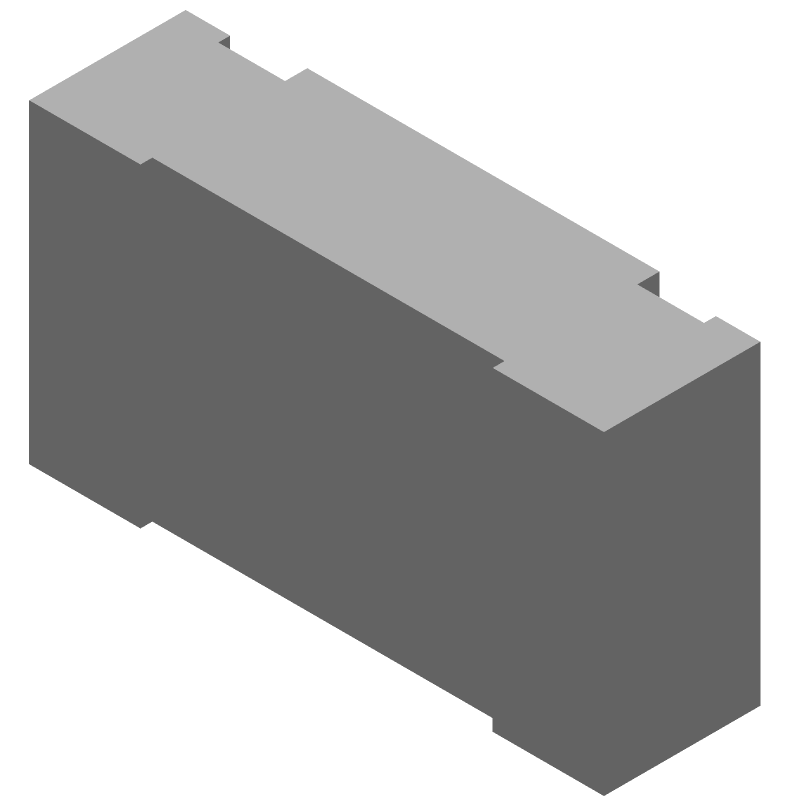

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW06034K70FKEC by Vishay Intertechnologies
Results Overview of CRCW06034K70FKEC by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
CRCW06034K70FKEC Information
CRCW06034K70FKEC by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW06034K70FKEC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AK3032
|
Newark | Res, 4.7Kohm, Aec-Q200, 0.1W, 0603 Rohs Compliant: Yes |Vishay CRCW06034K70FKEC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 10 |
|
$0.0060 | Buy Now |
|
DISTI #
48P9204
|
Newark | Res, 4K7, 1%, 0.1W, Thick Film, 0603, Resistance:4.7Kohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:75V Rohs Compliant: Yes |Vishay CRCW06034K70FKEC RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0270 | Buy Now |
|
DISTI #
CRCW06034K70FKEC
|
Avnet Americas | SMD Chip Resistor, 4.7 kohm, ? 1%, 100 mW, 0603 [1608 Metric], Thick Film, General Purpose - Tape and Reel (Alt: CRCW06034K70FKEC) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0026 / $0.0027 | Buy Now |
|
DISTI #
71-CRCW06034K70FKEC
|
Mouser Electronics | Thick Film Resistors - SMD D11/CRCW0603 100 4K7 1% ET6 e3 RoHS: Compliant | 50521 |
|
$0.0130 / $0.1000 | Buy Now |
|
|
Bristol Electronics | 19985 |
|
RFQ | ||
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
CRCW06034K70FKEC
|
Avnet Abacus | SMD Chip Resistor 47 kohm 1 100 mW 0603 1608 Metric Thick Film General Purpose (Alt: CRCW06034K70FKEC) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 14 Weeks, 0 Days | Abacus - 1020000 |
|
Buy Now | |
|
|
Vyrian | Resistors | 188481 |
|
RFQ |
Part Details for CRCW06034K70FKEC
CRCW06034K70FKEC CAD Models
CRCW06034K70FKEC Part Data Attributes
|
|
CRCW06034K70FKEC
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW06034K70FKEC
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 75 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.55 mm | |
| Package Style | SMT | |
| Package Width | 0.85 mm | |
| Packing Method | TR, Paper, 13 Inch | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 4700 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
CRCW06034K70FKEC Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW06034K70FKEC is 350°C/W, which is typical for a 0603 package size.
-
Yes, the CRCW06034K70FKEC is suitable for high-frequency applications due to its low inductance and high-frequency stability.
-
The power rating of the CRCW06034K70FKEC at 70°C is 0.125W, which is the maximum power that the resistor can handle without overheating.
-
Yes, the CRCW06034K70FKEC is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications.
-
The MSL of the CRCW06034K70FKEC is 1, which means it can withstand exposure to moisture without damage.
