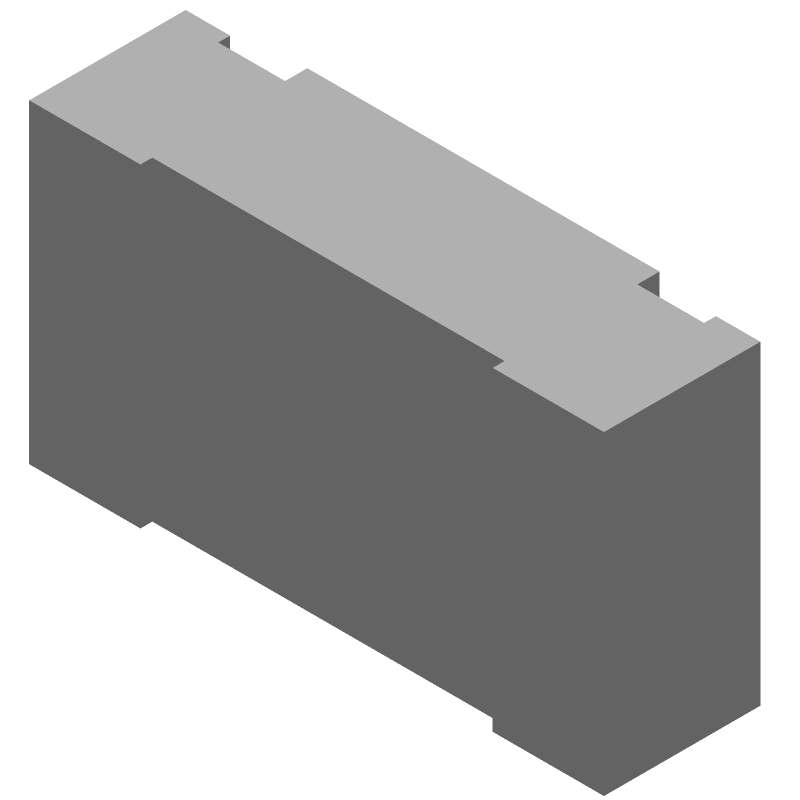

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW0603215KFKEA by Vishay Intertechnologies
Results Overview of CRCW0603215KFKEA by Vishay Intertechnologies
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
CRCW0603215KFKEA Information
CRCW0603215KFKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW0603215KFKEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
24W2783
|
Newark | Surface Mount Thick Film Resistor, Aec-Q200 Crcw Series, 215 Kohm, 100 Mw, - 1%, 75 V Rohs Compliant: Yes |Vishay CRCW0603215KFKEA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 9900 |
|
$0.0090 | Buy Now |
|
DISTI #
27W4172
|
Newark | Surface Mount Thick Film Resistor, Aec-Q200 Crcw Series, 215 Kohm, 100 Mw, - 1%, 75 V Rohs Compliant: Yes |Vishay CRCW0603215KFKEA RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6815 |
|
$0.0100 / $0.0180 | Buy Now |
|
DISTI #
CRCW0603215KFKEA
|
Avnet Americas | D11/CRCW0603 100 215K 1% ET1 e3 - Tape and Reel (Alt: CRCW0603215KFKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0024 / $0.0024 | Buy Now |
|
DISTI #
71-CRCW0603-215K-E3
|
Mouser Electronics | Thick Film Resistors - SMD 1/10watt 215Kohms 1% RoHS: Compliant | 9368 |
|
$0.0040 / $0.1000 | Buy Now |
|
DISTI #
V79:2366_26614945
|
Arrow Electronics | Res Thick Film 0603 215K Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Date Code: 2110 | Americas - 8635 |
|
Buy Now | |
|
|
Future Electronics | CRCW Series 0603 0.1 W 215 kOhm ±1 % ±100 ppm/K SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 11 Weeks Container: Reel | 45000Reel |
|
$0.0034 / $0.0038 | Buy Now |
|
DISTI #
68378508
|
Verical | Res Thick Film 0603 215K Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 3572 Package Multiple: 1 Date Code: 2110 | Americas - 8635 |
|
$0.0016 | Buy Now |
|
|
Bristol Electronics | 10614 |
|
RFQ | ||
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 PPM, 215000 OHM, SURFACE MOUNT, 0603, LEAD FREE | 8491 |
|
$0.0400 / $0.2000 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 PPM, 215000 OHM, SURFACE MOUNT, 0603, LEAD FREE | 4298 |
|
$0.0066 / $0.0176 | Buy Now |
Part Details for CRCW0603215KFKEA
CRCW0603215KFKEA CAD Models
CRCW0603215KFKEA Part Data Attributes
|
|
CRCW0603215KFKEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW0603215KFKEA
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 215000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 75 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.55 mm | |
| Package Style | SMT | |
| Package Width | 0.85 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 215000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
CRCW0603215KFKEA Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW0603215KFKEA is 350°C/W, which is relatively low, making it suitable for high-power applications.
-
Yes, the CRCW0603215KFKEA is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds in the atmosphere.
-
The MSL of the CRCW0603215KFKEA is 1, which means it can withstand exposure to moisture without significant degradation.
-
Yes, the CRCW0603215KFKEA is suitable for high-frequency applications due to its low inductance and high-frequency stability.
-
Yes, the CRCW0603215KFKEA is compatible with lead-free soldering processes, making it suitable for use in modern electronic assemblies.
