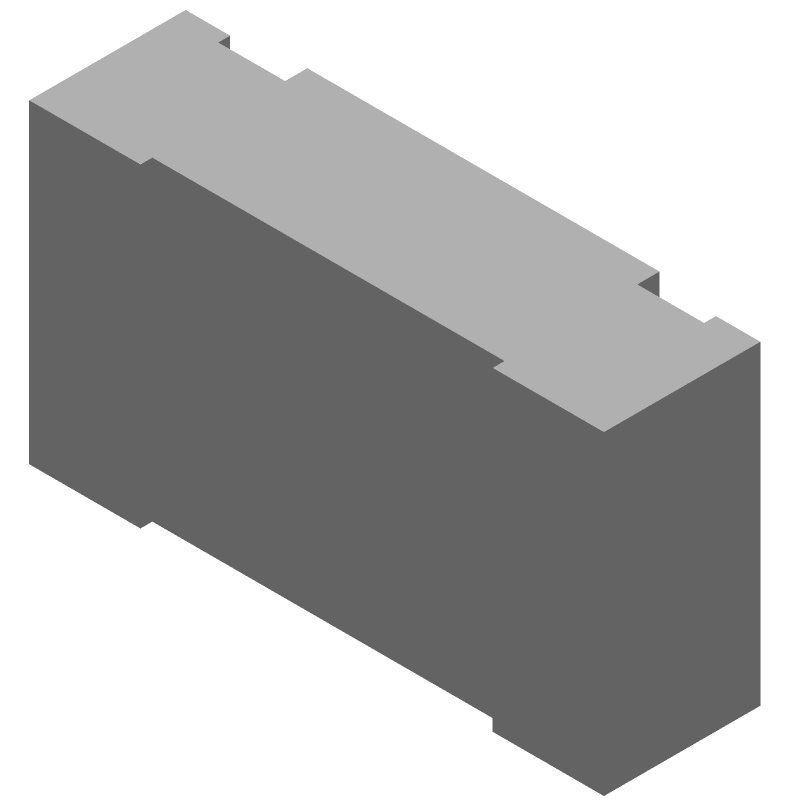

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW0603200KFKEC by Vishay Intertechnologies
Results Overview of CRCW0603200KFKEC by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
CRCW0603200KFKEC Information
CRCW0603200KFKEC by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW0603200KFKEC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48P8679
|
Newark | D11/Crcw0603 100 200K 1% Et6 E3 Rohs Compliant: Yes |Vishay CRCW0603200KFKEC RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0270 | Buy Now |
|
DISTI #
CRCW0603200KFKEC
|
Avnet Americas | D11/CRCW0603 100 200K 1% ET6 e3 - Tape and Reel (Alt: CRCW0603200KFKEC) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0046 / $0.0047 | Buy Now |
|
DISTI #
71-CRCW0603200KFKEC
|
Mouser Electronics | Thick Film Resistors - SMD 200K OHM 1% RoHS: Compliant | 11054 |
|
$0.0130 / $0.1500 | Buy Now |
|
DISTI #
E02:0323_09551149
|
Arrow Electronics | Res Thick Film 0603 200K Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2332 | Europe - 20000 |
|
$0.0146 / $0.1684 | Buy Now |
|
DISTI #
V72:2272_09190715
|
Arrow Electronics | Res Thick Film 0603 200K Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 1134 Container: Cut Strips | Americas - 1 |
|
$0.0125 | Buy Now |
|
DISTI #
82735418
|
Verical | Res Thick Film 0603 200K Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 820 Package Multiple: 1 Date Code: 2332 | Americas - 19680 |
|
$0.0122 | Buy Now |
|
DISTI #
CRCW0603200KFKEC
|
TTI | Thick Film Resistors - SMD 200K OHM 1% pbFree: Pb-Free Min Qty: 20000 Package Multiple: 20000 Container: Reel | Americas - 0 |
|
$0.0030 / $0.0032 | Buy Now |
|
DISTI #
CRCW0603200KFKEC
|
Avnet Abacus | D11CRCW0603 100 200K 1 ET6 e3 (Alt: CRCW0603200KFKEC) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CRCW0603200KFKEC
CRCW0603200KFKEC CAD Models
CRCW0603200KFKEC Part Data Attributes
|
|
CRCW0603200KFKEC
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW0603200KFKEC
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 200000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 75 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.55 mm | |
| Package Style | SMT | |
| Package Width | 0.85 mm | |
| Packing Method | TR, Paper, 13 Inch | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 200000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
CRCW0603200KFKEC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW0603200KFKEC is 260°C (500°F) for 10 seconds or less.
-
Yes, the CRCW0603200KFKEC is a thick-film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
-
The CRCW0603200KFKEC has a maximum operating temperature of 155°C (311°F). While it can tolerate high temperatures, it's not recommended for extreme high-temperature applications.
-
The power rating of the CRCW0603200KFKEC at 70°C is 0.25W. However, it's essential to derate the power according to the ambient temperature to ensure reliable operation.
-
Yes, the CRCW0603200KFKEC is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
