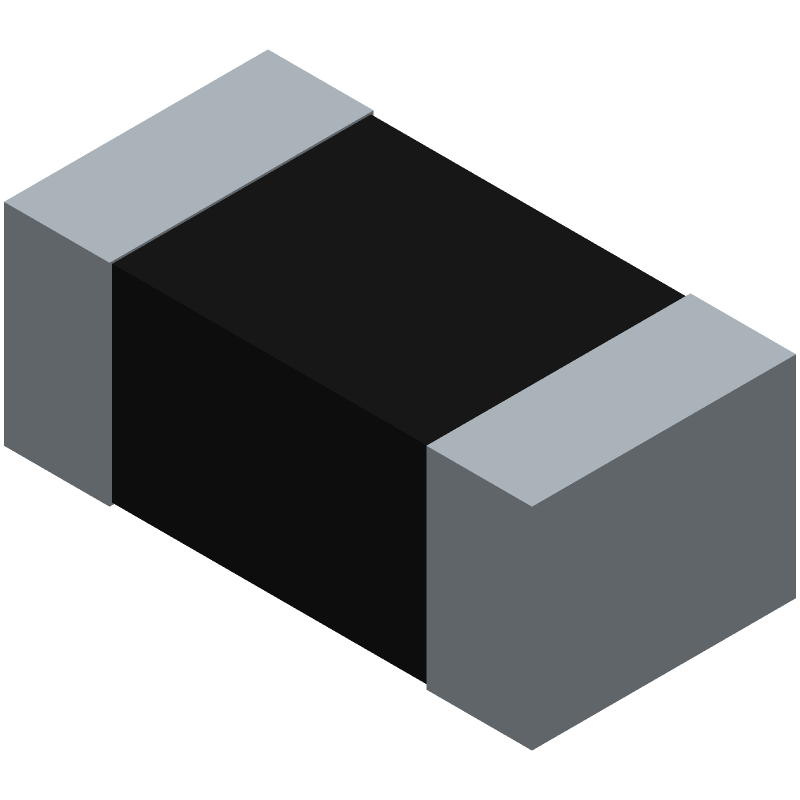

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW0402270RFKEDHP by Vishay Intertechnologies
Results Overview of CRCW0402270RFKEDHP by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CRCW0402270RFKEDHP Information
CRCW0402270RFKEDHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW0402270RFKEDHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41R4544
|
Newark | Surface Mount Chip Resistor, Thick Film, Aec-Q200 Crcw Series, 270 Ohm, 200 Mw, 1%, 50 V Rohs Compliant: Yes |Vishay CRCW0402270RFKEDHP RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 25150 |
|
$0.0200 / $0.0420 | Buy Now |
|
DISTI #
24T7007
|
Newark | Crcw0402-Hp 100 270R 1% Et7 E3 Rohs Compliant: Yes |Vishay CRCW0402270RFKEDHP RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0150 / $0.0210 | Buy Now |
|
DISTI #
CRCW0402270RFKEDHP
|
Avnet Americas | CRCW0402-HP 100 270R 1% ET7 E3 - Tape and Reel (Alt: CRCW0402270RFKEDHP) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0107 / $0.0124 | Buy Now |
|
DISTI #
71-CRCW0402270RFKEDH
|
Mouser Electronics | Thick Film Resistors - SMD 0.2W 270ohms 1% High Power AEC-Q200 RoHS: Compliant | 22932 |
|
$0.0110 / $0.1200 | Buy Now |
|
DISTI #
CRCW0402270RFKEDHP
|
TTI | Thick Film Resistors - SMD 0.2W 270ohms 1% High Power AEC-Q200 pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel |
Americas - 30000 In Stock |
|
$0.0101 / $0.0119 | Buy Now |
|
DISTI #
CRCW0402270RFKEDHP
|
IBS Electronics | RES THICK FILM 0402 270 OHM 1% 0.2W(1/5W) ±, 100PPM/C PAD SMD AUTOMOTIVE T/R Min Qty: 10000 Package Multiple: 1 | 0 |
|
$0.0080 / $0.0089 | Buy Now |
|
DISTI #
CRCW0402270RFKEDHP
|
Avnet Abacus | CRCW0402HP 100 270R 1 ET7 E3 (Alt: CRCW0402270RFKEDHP) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Resistors | 33135 |
|
RFQ |
Part Details for CRCW0402270RFKEDHP
CRCW0402270RFKEDHP CAD Models
CRCW0402270RFKEDHP Part Data Attributes
|
|
CRCW0402270RFKEDHP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW0402270RFKEDHP
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.2W, 270ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V): 50 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.3 mm | |
| Package Length | 1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 270 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 50 V |
CRCW0402270RFKEDHP Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW0402270RFKEDHP is 350°C/W, which is relatively low and helps to prevent overheating.
-
Yes, the CRCW0402270RFKEDHP is suitable for high-frequency applications due to its low inductance and high-frequency stability.
-
Yes, the CRCW0402270RFKEDHP can be used in high-temperature environments up to 155°C, making it suitable for automotive and industrial applications.
-
Yes, the CRCW0402270RFKEDHP is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
-
The power rating of the CRCW0402270RFKEDHP is 0.25 W, making it suitable for low-power applications.
