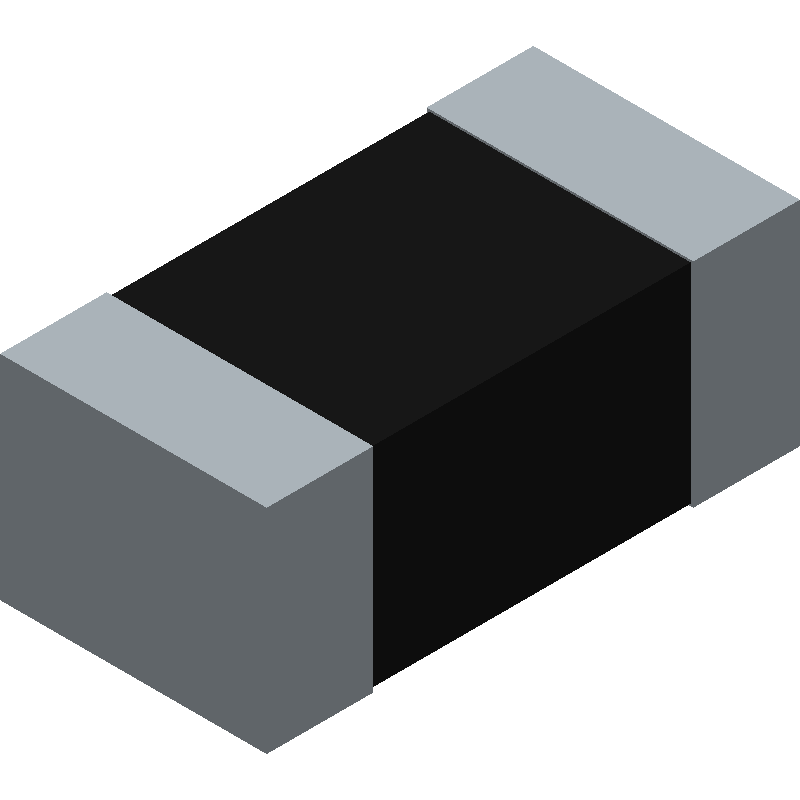

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW040222K1FKEDHP by Vishay Intertechnologies
Results Overview of CRCW040222K1FKEDHP by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CRCW040222K1FKEDHP Information
CRCW040222K1FKEDHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW040222K1FKEDHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51X8527
|
Newark | Crcw0402-Hp 100 22K1 1% Et7 E3 Rohs Compliant: Yes |Vishay CRCW040222K1FKEDHP RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0150 / $0.0210 | Buy Now |
|
DISTI #
CRCW040222K1FKEDHP
|
Avnet Americas | CRCW0402-HP 100 22K1 1% ET7 E3 - Tape and Reel (Alt: CRCW040222K1FKEDHP) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0115 / $0.0124 | Buy Now |
|
DISTI #
71-CRCW040222K1FKEDH
|
Mouser Electronics | Thick Film Resistors - SMD 0.2W 22.1Kohms 1% 50V 0402 RoHS: Compliant | 16487 |
|
$0.0120 / $0.1200 | Buy Now |
|
|
Vyrian | Resistors | 22226 |
|
RFQ |
Part Details for CRCW040222K1FKEDHP
CRCW040222K1FKEDHP CAD Models
CRCW040222K1FKEDHP Part Data Attributes
|
|
CRCW040222K1FKEDHP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW040222K1FKEDHP
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.2W, 22100ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V): 50 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.3 mm | |
| Package Length | 1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 22100 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 50 V |
CRCW040222K1FKEDHP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW040222K1FKEDHP is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the CRCW040222K1FKEDHP is a thick-film resistor designed for high-frequency applications up to 100 MHz.
-
The power rating of the CRCW040222K1FKEDHP at 70°C is 0.125 W.
-
Yes, the CRCW040222K1FKEDHP is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
-
The MSL of the CRCW040222K1FKEDHP is 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment.
