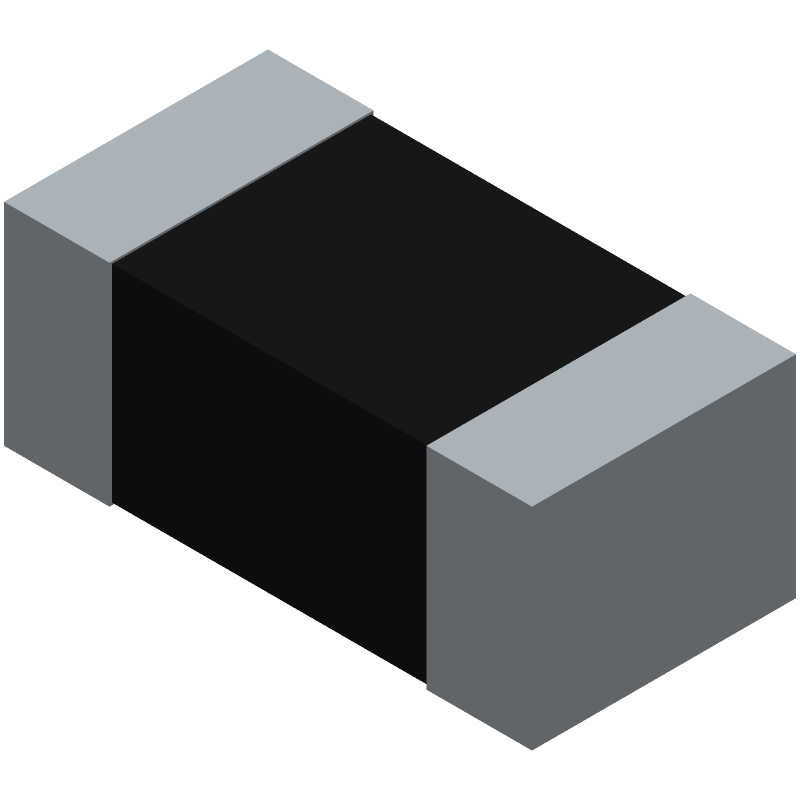

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW040212K0FKEDHP by Vishay Intertechnologies
Results Overview of CRCW040212K0FKEDHP by Vishay Intertechnologies
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CRCW040212K0FKEDHP Information
CRCW040212K0FKEDHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW040212K0FKEDHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41R4510
|
Newark | Surface Mount Chip Resistor, Thick Film, Aec-Q200 Crcw Series, 12 Kohm, 200 Mw, 1%, 50 V Rohs Compliant: Yes |Vishay CRCW040212K0FKEDHP RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 30907 |
|
$0.0200 / $0.0360 | Buy Now |
|
DISTI #
04Y0410
|
Newark | Crcw0402-Hp 100 12K 1% Et7 E3 Rohs Compliant: Yes |Vishay CRCW040212K0FKEDHP RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0150 / $0.0210 | Buy Now |
|
DISTI #
CRCW040212K0FKEDHP
|
Avnet Americas | CRCW0402-HP 100 12K 1% ET7 E3 - Tape and Reel (Alt: CRCW040212K0FKEDHP) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0105 / $0.0124 | Buy Now |
|
DISTI #
71-CRCW040212K0FKEDH
|
Mouser Electronics | Thick Film Resistors - SMD 0.2W 12Kohms 1% High Power AEC-Q200 RoHS: Compliant | 22051 |
|
$0.0100 / $0.1200 | Buy Now |
|
DISTI #
V72:2272_09535715
|
Arrow Electronics | Res Thick Film 0402 12K Ohm 1% 0.2W(1/5W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2220 Container: Cut Strips | Americas - 6193 |
|
$0.0121 / $0.0576 | Buy Now |
|
|
Future Electronics | CRCW Series 0402 0.2 W 12 kOhm ±1 % ±100 ppm/K SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks Container: Reel | 10000Reel |
|
$0.0112 / $0.0118 | Buy Now |
|
DISTI #
63303943
|
Verical | Res Thick Film 0402 12K Ohm 1% 0.2W(1/5W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 521 Package Multiple: 1 Date Code: 2220 | Americas - 6193 |
|
$0.0121 / $0.0128 | Buy Now |
|
DISTI #
CRCW040212K0FKEDHP
|
TTI | Thick Film Resistors - SMD 0.2W 12Kohms 1% High Power AEC-Q200 pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel |
Americas - 80000 In Stock |
|
$0.0095 / $0.0109 | Buy Now |
|
|
Future Electronics | CRCW Series 0402 0.2 W 12 kOhm �1 % �100 ppm/K SMT Thick Film Chip Resistor Min Qty: 10000 Package Multiple: 10000 |
10000 null |
|
$0.0112 / $0.0118 | Buy Now |
|
DISTI #
CRCW040212K0FKEDHP
|
IBS Electronics | RES THICK FILM 0402 12K OHM 1% 0.2W ±, 100PPM/°, C MOLDED SMD PAPER T/R Min Qty: 10000 Package Multiple: 1 | 10000 |
|
$0.0227 / $0.0237 | Buy Now |
Part Details for CRCW040212K0FKEDHP
CRCW040212K0FKEDHP CAD Models
CRCW040212K0FKEDHP Part Data Attributes
|
|
CRCW040212K0FKEDHP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW040212K0FKEDHP
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.2W, 12000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V): 50 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.3 mm | |
| Package Length | 1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 12000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 50 V |
CRCW040212K0FKEDHP Frequently Asked Questions (FAQ)
-
The power rating of the CRCW040212K0FKEDHP resistor is 0.125 W.
-
Yes, the CRCW040212K0FKEDHP resistor is suitable for high-frequency applications due to its thin-film construction and low inductance.
-
The operating temperature range of the CRCW040212K0FKEDHP resistor is -55°C to 155°C.
-
Yes, the CRCW040212K0FKEDHP resistor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The tolerance of the CRCW040212K0FKEDHP resistor is ±1%.
