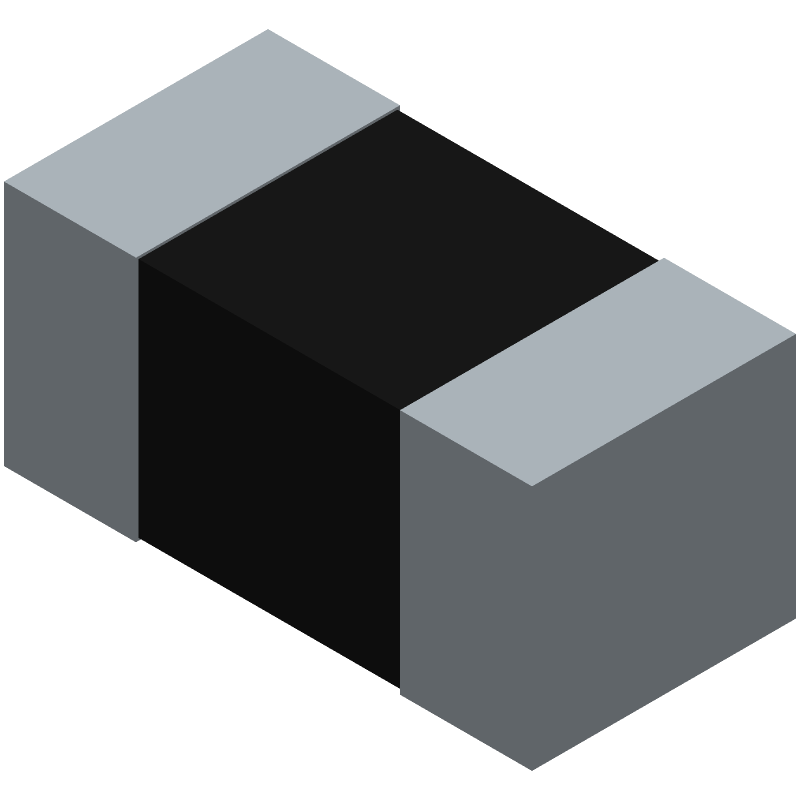

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW02018K06FKED by Vishay Intertechnologies
Results Overview of CRCW02018K06FKED by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CRCW02018K06FKED Information
CRCW02018K06FKED by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW02018K06FKED
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01X2114
|
Newark | Crcw0201 100 8K06 1% Et7 E3 Rohs Compliant: Yes |Vishay CRCW02018K06FKED RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0340 / $0.0490 | Buy Now |
|
DISTI #
CRCW02018K06FKED
|
Avnet Americas | CRCW0201 100 8K06 1% ET7 e3 - Tape and Reel (Alt: CRCW02018K06FKED) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.0214 / $0.0238 | Buy Now |
|
DISTI #
71-CRCW02018K06FKED
|
Mouser Electronics | Thick Film Resistors - SMD 1/20watt 8.06Kohms 1% 100ppm RoHS: Compliant | 20860 |
|
$0.0270 / $0.2300 | Buy Now |
|
|
Future Electronics | RES SMD 8.06K OHM 1% 1/20W 0201 RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks Container: Reel | 10000Reel |
|
$0.0226 / $0.0233 | Buy Now |
|
DISTI #
CRCW02018K06FKED
|
TTI | Thick Film Resistors - SMD 1/20watt 8.06Kohms 1% 100ppm pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel |
Americas - 10000 In Stock |
|
$0.0228 / $0.0238 | Buy Now |
|
|
Future Electronics | RES SMD 8.06K OHM 1% 1/20W 0201 Min Qty: 10000 Package Multiple: 10000 |
10000 null |
|
$0.0218 / $0.0226 | Buy Now |
|
DISTI #
CRCW02018K06FKED
|
Avnet Abacus | CRCW0201 100 8K06 1 ET7 e3 (Alt: CRCW02018K06FKED) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CRCW02018K06FKED
CRCW02018K06FKED CAD Models
CRCW02018K06FKED Part Data Attributes
|
|
CRCW02018K06FKED
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW02018K06FKED
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.05W, 8060ohm, 30V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0201, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE: 30V | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.23 mm | |
| Package Length | 0.6 mm | |
| Package Style | SMT | |
| Package Width | 0.3 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.05 W | |
| Rated Temperature | 70 °C | |
| Resistance | 8060 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0201 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 30 V |
CRCW02018K06FKED Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CRCW02018K06FKED is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.
-
Yes, the CRCW02018K06FKED is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.
-
The CRCW02018K06FKED has a maximum operating temperature of 155°C (311°F), but it can be used in high-temperature environments up to 200°C (392°F) with derating. Consult the datasheet for derating curves.
-
Yes, the CRCW02018K06FKED is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other environmentally conscious markets.
-
The CRCW02018K06FKED has an MSL rating of 1, which means it can withstand normal humidity levels and does not require special handling or storage.
