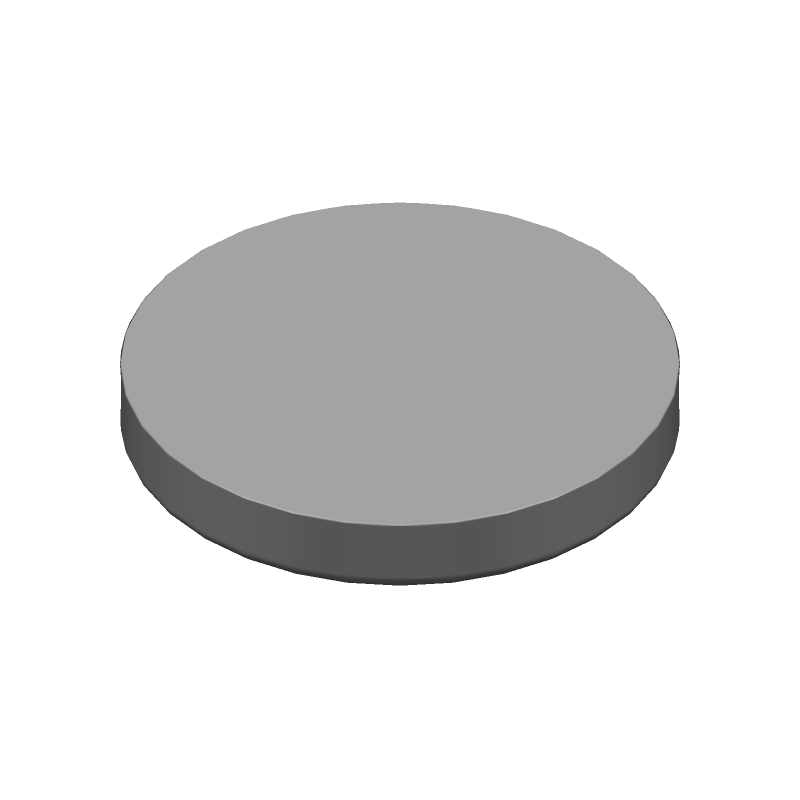

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CR1220 by Jauch Quartz America
Results Overview of CR1220 by Jauch Quartz America
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
CR1220 Information
CR1220 by Jauch Quartz America is a Battery.
Batteries are under the broader part category of Batteries.
A battery stores chemical energy and converts it to electrical energy through chemical reactions that involve the flow of electrons between electrodes. Batteries are used in electronics based on size and power needs. Read more about Batteries on our Batteries part category page.
Price & Stock for CR1220
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1908-CR1220-ND
|
DigiKey | BATTERY LITHIUM 3V COIN 12.5MM Min Qty: 1 Lead time: 23 Weeks Container: Box |
7398 In Stock |
|
$0.1891 / $0.3700 | Buy Now |
|
DISTI #
1908-CR1220JAUCHSB-ND
|
DigiKey | BATTERY LITHIUM 3V COIN 12.5MM Min Qty: 1 Lead time: 23 Weeks Container: Bulk |
622 In Stock |
|
$0.5513 / $1.0900 | Buy Now |
Part Details for CR1220
CR1220 CAD Models
CR1220 Part Data Attributes
|
|
CR1220
Jauch Quartz America
Buy Now
Datasheet
|
Compare Parts:
CR1220
Jauch Quartz America
Primary Battery, Lithium Manganese Dioxide, 1220, 3V, 0.04Ah,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | JAUCH QUARTZ GMBH | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.J.1 | |
| HTS Code | 8506.80.00.00 | |
| Samacsys Manufacturer | Jauch Quartz | |
| Approvals | UL | |
| Battery Chemistry | LITHIUM MANGANESE DIOXIDE | |
| Battery Size | 1220 | |
| Battery Type | PRIMARY | |
| Capacity | 0.04 Ah | |
| Diameter | 12.5 mm | |
| Height | 2 mm | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -30 °C | |
| Terminal Type | BUTTON(-), FLAT(+) | |
| Voltage | 3 V | |
| Weight | 0.75 g |
CR1220 Frequently Asked Questions (FAQ)
-
Store the crystals in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to +40°C.
-
While the CR1220 is designed to operate in a wide range of temperatures, it's not recommended for use in humid environments above 80% RH. Prolonged exposure to high humidity can lead to degradation of the crystal's performance and lifespan.
-
The maximum allowable voltage for the CR1220 crystal is 1.5 times the rated voltage, which is 30V for this specific model. Exceeding this voltage can cause damage to the crystal or affect its performance.
-
Handle the crystal by the edges or the metal frame to prevent damage. Avoid touching the crystal surface or the electrodes, as the oils from your skin can affect the crystal's performance. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
-
The CR1220 crystal is designed to operate in environments with moderate vibration. However, extreme vibration can affect the crystal's performance and lifespan. If your application involves high vibration, consider using a crystal with a higher vibration tolerance or taking additional measures to secure the crystal.
