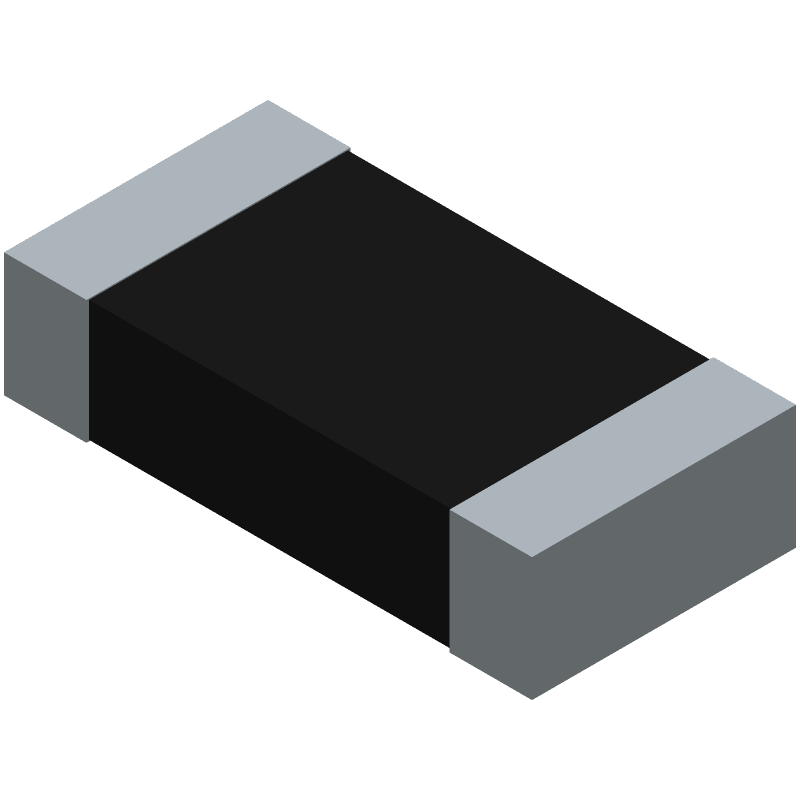

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CR1206-FX-1471ELF by Bourns Inc
Results Overview of CR1206-FX-1471ELF by Bourns Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Computing and Data Storage
Financial Technology (Fintech)
Healthcare
Energy and Power Systems
Renewable Energy
Automotive
CR1206-FX-1471ELF Information
CR1206-FX-1471ELF by Bourns Inc is a Ruthenium Oxide Resistor.
Ruthenium Oxide Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CR1206-FX-1471ELF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02J2582
|
Newark | Resistor, ruthenium Oxide,1.47Kohms,200Wv,1+/-% Tol,-100,100Ppm-Tc,1206-Case Rohs Compliant: Yes |Bourns CR1206-FX-1471ELF RoHS: Compliant Min Qty: 25000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0080 | Buy Now |
|
DISTI #
118-CR1206-FX-1471ELFCT-ND
|
DigiKey | RES SMD 1.47K OHM 1% 1/4W 1206 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
24876 In Stock |
|
$0.0063 / $0.1000 | Buy Now |
|
DISTI #
CR1206-FX-1471ELF
|
Avnet Americas | SMD Chip Resistor, 1.47 kOhm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose - Tape and Reel (Alt: CR1206-FX-1471ELF) RoHS: Compliant Min Qty: 25000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0077 / $0.0078 | Buy Now |
|
DISTI #
652-CR1206FX-1471ELF
|
Mouser Electronics | Thick Film Resistors - SMD 1.47K 1% RoHS: Compliant | 19665 |
|
$0.0060 / $0.1000 | Buy Now |
|
|
Onlinecomponents.com | Thick Film Chip Resistor - 1/4 W - 1.47 Kohm ±1% - ±100ppm/°C - SMD 1206 - RoHS Compliant - Tape&Reel RoHS: Compliant | 0 |
|
$0.0063 / $0.0093 | Buy Now |
|
DISTI #
CR1206-FX-1471ELF
|
Avnet Abacus | SMD Chip Resistor 147 kOhm 1 250 mW 1206 3216 Metric Thick Film General Purpose - Tape and Reel (Alt: CR1206-FX-1471ELF) RoHS: Compliant Min Qty: 25000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | Thick Film Chip Resistor - 1/4 W - 1.47 Kohm ±1% - ±100ppm/°C - SMD 1206 - RoHS Compliant - Tape&Reel RoHS: Compliant | 0 |
|
$0.0063 / $0.0093 | Buy Now |
Part Details for CR1206-FX-1471ELF
CR1206-FX-1471ELF CAD Models
CR1206-FX-1471ELF Part Data Attributes
|
|
CR1206-FX-1471ELF
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
CR1206-FX-1471ELF
Bourns Inc
Fixed Resistor, Ruthenium Oxide, 0.25W, 1470ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.55 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Resistance | 1470 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
Alternate Parts for CR1206-FX-1471ELF
This table gives cross-reference parts and alternative options found for CR1206-FX-1471ELF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CR1206-FX-1471ELF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1206S4F1471T1 | Royal Electronic Factory (Thailand) Co Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1470ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, | CR1206-FX-1471ELF vs 1206S4F1471T1 |
| CR32-1471FT | ASJ Holdings Limited | Check for Price | Fixed Resistor | CR1206-FX-1471ELF vs CR32-1471FT |
| 1206S4F1471CAE | Royal Electronic Factory (Thailand) Co Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1470ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, | CR1206-FX-1471ELF vs 1206S4F1471CAE |
| AR1206FR-071K47L | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1470ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE EPOXY AND ROHS COMPLIANT | CR1206-FX-1471ELF vs AR1206FR-071K47L |
| RC1206FR-131K47P | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1470ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP | CR1206-FX-1471ELF vs RC1206FR-131K47P |
| 1206S4F1471C1E | Royal Electronic Factory (Thailand) Co Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1470ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, | CR1206-FX-1471ELF vs 1206S4F1471C1E |
| NRC-AS12F1471TRQYF | NIC Components Corp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1470ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, | CR1206-FX-1471ELF vs NRC-AS12F1471TRQYF |
| CR-06FPB--1K47 | Viking Tech Corp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.3333W, 1470ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP | CR1206-FX-1471ELF vs CR-06FPB--1K47 |
| WR12X1471FGR | Walsin Technology Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1470ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT | CR1206-FX-1471ELF vs WR12X1471FGR |
| 1206S4F1471T2 | Royal Electronic Factory (Thailand) Co Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1470ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, | CR1206-FX-1471ELF vs 1206S4F1471T2 |
CR1206-FX-1471ELF Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for CR1206-FX-1471ELF is 260°C (500°F) for 10 seconds or less, as per the JEDEC standard J-STD-020.
-
Yes, CR1206-FX-1471ELF is compatible with lead-free soldering and is RoHS compliant.
-
The power rating of CR1206-FX-1471ELF decreases with increasing temperature. At 70°C, the power rating is 0.25W, and at 125°C, it is 0.1W.
-
CR1206-FX-1471ELF is a general-purpose chip resistor and is not optimized for high-frequency applications. For high-frequency applications, it's recommended to use a high-frequency chip resistor from Bourns, such as the CHV series.
-
The moisture sensitivity level (MSL) of CR1206-FX-1471ELF is MSL 1, which means it can be exposed to a maximum of 30°C/85% RH for 168 hours.
