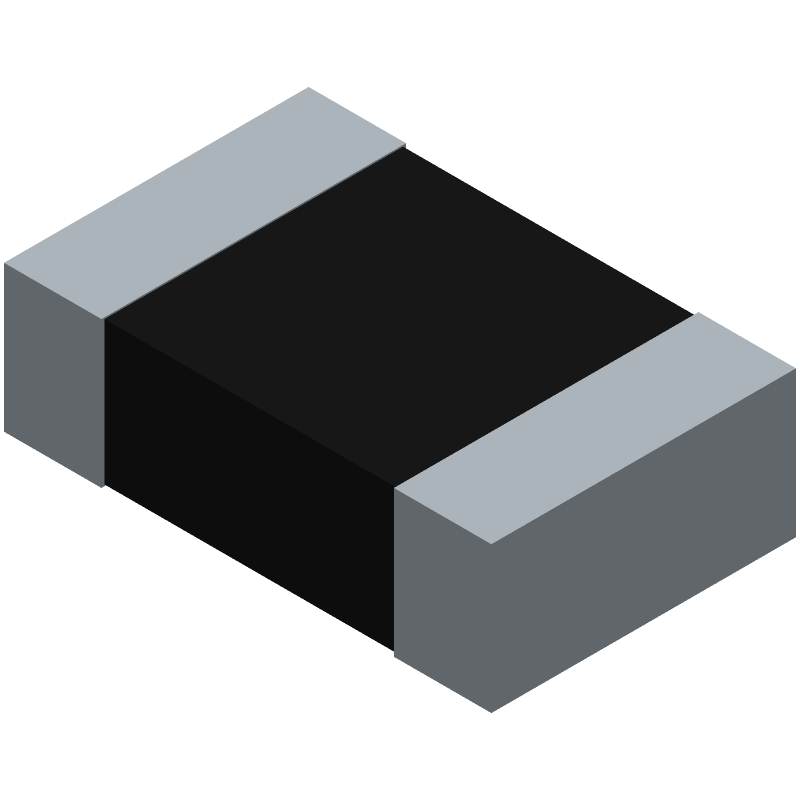

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CR0805-JW-110ELF by Bourns Inc
Results Overview of CR0805-JW-110ELF by Bourns Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Computing and Data Storage
Financial Technology (Fintech)
Healthcare
Energy and Power Systems
Renewable Energy
Automotive
CR0805-JW-110ELF Information
CR0805-JW-110ELF by Bourns Inc is a Ruthenium Oxide Resistor.
Ruthenium Oxide Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10051922-1110ELF | Amphenol Communications Solutions | 0.50mm Flex Connector, VLL Series, 11 Position, Lower Side Contact, Side Entry Surface Mount ZIF Connector, Lead Free Type. | |
| 10044471-121110ELF | Amphenol Communications Solutions | DensiShield® highspeed Cable Connector, Input Output Connector, 8 Pair Header (IMLA shields) |
Price & Stock for CR0805-JW-110ELF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
32K3411
|
Newark | Resistor, ruthenium Oxide,11Ohms,100Wv,5+/-% Tol,-200,200Ppm-Tc,0805-Case Rohs Compliant: Yes |Bourns CR0805-JW-110ELF RoHS: Compliant Min Qty: 50000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0040 | Buy Now |
|
DISTI #
118-CR0805-JW-110ELFCT-ND
|
DigiKey | RES SMD 11 OHM 5% 1/8W 0805 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
24970 In Stock |
|
$0.0030 / $0.1000 | Buy Now |
|
DISTI #
CR0805-JW-110ELF
|
Avnet Americas | SMD Chip Resistor, 11 Ohm, ? 5%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose - Tape and Reel (Alt: CR0805-JW-110ELF) RoHS: Compliant Min Qty: 25000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0029 / $0.0031 | Buy Now |
|
DISTI #
652-CR0805JW-110ELF
|
Mouser Electronics | Thick Film Resistors - SMD 11ohm 5% RoHS: Compliant | 65899 |
|
$0.0020 / $0.1000 | Buy Now |
|
|
Onlinecomponents.com | Thick Film Chip Resistor - 1/8 W - 11 ohm ±5% - ±200ppm/°C - SMD 0805 - RoHS Compliant - Tape&Reel RoHS: Compliant | 0 |
|
$0.0033 / $0.0048 | Buy Now |
|
DISTI #
CR0805-JW-110ELF
|
Avnet Abacus | SMD Chip Resistor 11 Ohm 5 125 mW 0805 2012 Metric Thick Film General Purpose - Tape and Reel (Alt: CR0805-JW-110ELF) RoHS: Compliant Min Qty: 25000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 43 |
|
RFQ | |
|
|
Master Electronics | Thick Film Chip Resistor - 1/8 W - 11 ohm ±5% - ±200ppm/°C - SMD 0805 - RoHS Compliant - Tape&Reel RoHS: Compliant | 0 |
|
$0.0033 / $0.0048 | Buy Now |
Part Details for CR0805-JW-110ELF
CR0805-JW-110ELF CAD Models
CR0805-JW-110ELF Part Data Attributes
|
|
CR0805-JW-110ELF
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
CR0805-JW-110ELF
Bourns Inc
Fixed Resistor, Ruthenium Oxide, 0.125W, 11ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 2 mm | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.125 W | |
| Rated Temperature | 70 °C | |
| Resistance | 11 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 150 V |
Alternate Parts for CR0805-JW-110ELF
This table gives cross-reference parts and alternative options found for CR0805-JW-110ELF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CR0805-JW-110ELF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CRCW080511R0JNEBC | Vishay Intertechnologies | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 11ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP | CR0805-JW-110ELF vs CRCW080511R0JNEBC |
CR0805-JW-110ELF Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for CR0805-JW-110ELF is 260°C (500°F) for a maximum of 10 seconds.
-
Yes, CR0805-JW-110ELF is compatible with lead-free soldering and is RoHS compliant.
-
The power rating of CR0805-JW-110ELF decreases with temperature. At 70°C, the power rating is 0.125W, and at 110°C, it is 0.05W.
-
CR0805-JW-110ELF is a general-purpose chip resistor and is not optimized for high-frequency applications. For high-frequency applications, it's recommended to use a high-frequency chip resistor like the Bourns CF series.
-
The MSL of CR0805-JW-110ELF is 1, which means it can withstand a maximum of 30°C/60% RH for 192 hours.
