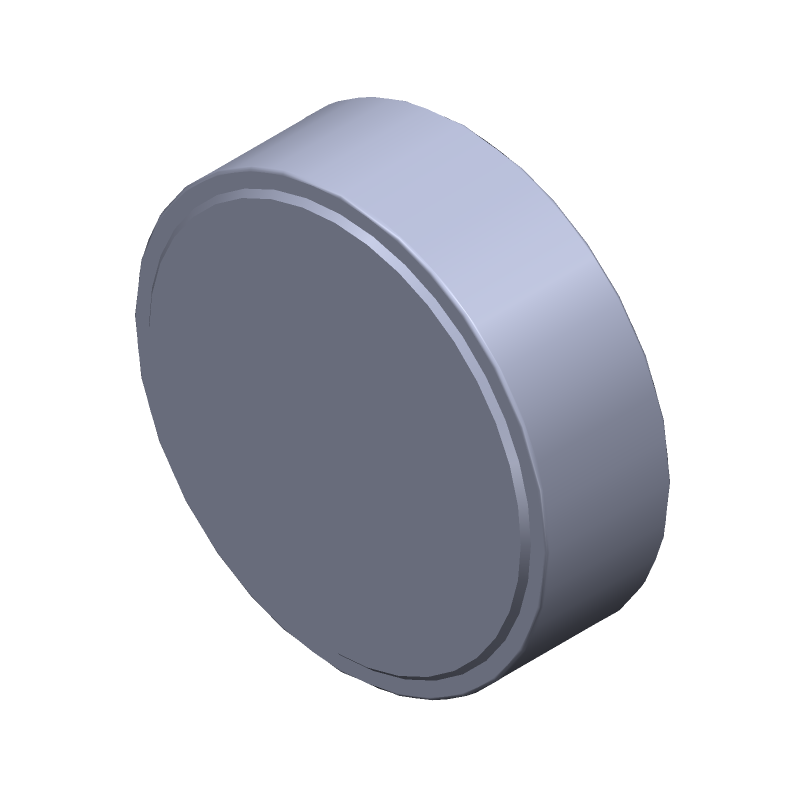

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CR-2477/VCN by Panasonic Electronic Components
Results Overview of CR-2477/VCN by Panasonic Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
CR-2477/VCN Information
CR-2477/VCN by Panasonic Electronic Components is a Battery.
Batteries are under the broader part category of Batteries.
A battery stores chemical energy and converts it to electrical energy through chemical reactions that involve the flow of electrons between electrodes. Batteries are used in electronics based on size and power needs. Read more about Batteries on our Batteries part category page.
Price & Stock for CR-2477/VCN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05W3146
|
Newark | Battery Lithium Coin 3V Pc Pins |Panasonic Batteries CR-2477/VCN RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.2600 / $4.8100 | Buy Now |
|
DISTI #
P271-ND
|
DigiKey | BATTERY LITHIUM 3V COIN 24.5MM Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
4007 In Stock |
|
$2.3926 / $4.3800 | Buy Now |
|
DISTI #
658-CR-2477/VCN
|
Mouser Electronics | Coin Cell Battery 3V 1000mAH | 87 |
|
$2.3900 / $4.3800 | Buy Now |
|
DISTI #
000000000007214940
|
Sager | Coin Cell Battery 3V 1000mAH Min Qty: 1 | 0 |
|
$2.9600 / $3.3500 | Buy Now |
|
DISTI #
CR-2477/VCN
|
Avnet Abacus | Lithium Manganese Dioxide Coin 3V 1Ah Primary (Alt: CR-2477/VCN) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 21 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CR-2477/VCN
CR-2477/VCN CAD Models
CR-2477/VCN Part Data Attributes
|
|
CR-2477/VCN
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
CR-2477/VCN
Panasonic Electronic Components
BATTERY LITHIUM COIN 3V W/LEGS
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | Panasonic | |
| Battery Chemistry | LITHIUM MANGANESE DIOXIDE | |
| Battery Size | 2477 | |
| Battery Type | PRIMARY | |
| Capacity | 1 Ah | |
| Diameter | 24.5 mm | |
| Height | 7.7 mm | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -30 °C | |
| Terminal Type | FLAT | |
| Voltage | 3 V | |
| Weight | 10.5 g |
Alternate Parts for CR-2477/VCN
This table gives cross-reference parts and alternative options found for CR-2477/VCN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CR-2477/VCN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CR2477 | Murata Manufacturing Co Ltd | Check for Price | Primary Battery, Lithium Manganese Dioxide, 2477, 3V, 1Ah, | CR-2477/VCN vs CR2477 |
| CR2477W | Murata Manufacturing Co Ltd | Check for Price | Primary Battery, | CR-2477/VCN vs CR2477W |
| CR2477X-HO4 | Murata Manufacturing Co Ltd | Check for Price | Primary Battery, | CR-2477/VCN vs CR2477X-HO4 |
| BR2477A | Panasonic Electronic Components | Check for Price | Primary Battery, Lithium Poly-carbonmonoflouride, 2477, 3V, 1Ah, | CR-2477/VCN vs BR2477A |
| CR1/26.L | FDK Corporation | Check for Price | Primary Battery | CR-2477/VCN vs CR1/26.L |
| BR-1/2AA | Panasonic Electronic Components | Check for Price | Primary Battery | CR-2477/VCN vs BR-1/2AA |
| CR2477X | Murata Manufacturing Co Ltd | Check for Price | Primary Battery, | CR-2477/VCN vs CR2477X |
| CR2477X-HE2 | Murata Manufacturing Co Ltd | Check for Price | Primary Battery, | CR-2477/VCN vs CR2477X-HE2 |
| CR-2477/GVFN | Panasonic Electronic Components | Check for Price | Primary Battery, Lithium, 2477, 3V, 1Ah, | CR-2477/VCN vs CR-2477/GVFN |
| CR2477 | EEMB Co Ltd | Check for Price | Primary Battery, | CR-2477/VCN vs CR2477 |
CR-2477/VCN Frequently Asked Questions (FAQ)
-
Store in a cool, dry place away from direct sunlight, with a relative humidity of 60% or less, and a temperature range of -10°C to 35°C.
-
Handle the component by the body, avoid touching the leads or electrical contacts, and use an anti-static wrist strap or mat to prevent electrostatic discharge.
-
Use a soldering temperature of 250°C to 260°C, and a soldering time of 3 to 5 seconds, to prevent thermal damage to the component.
-
Yes, the CR-2477/VCN is designed to withstand vibrations up to 10G, but ensure proper mounting and secure the component to prevent mechanical stress.
-
Use a soft brush to remove any debris, and then clean with a mild detergent and water. Avoid using harsh chemicals, ultrasonic cleaning, or high-pressure washing.
