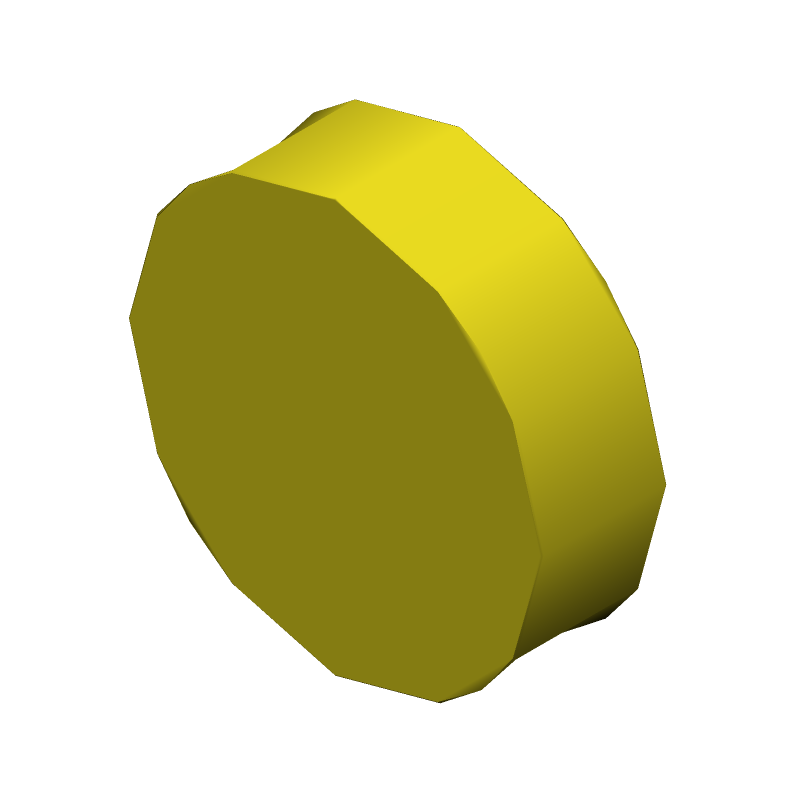

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CR-2477/BN by Panasonic Electronic Components
Results Overview of CR-2477/BN by Panasonic Electronic Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CR-2477/BN Information
CR-2477/BN by Panasonic Electronic Components is a Battery.
Batteries are under the broader part category of Batteries.
A battery stores chemical energy and converts it to electrical energy through chemical reactions that involve the flow of electrons between electrodes. Batteries are used in electronics based on size and power needs. Read more about Batteries on our Batteries part category page.
Price & Stock for CR-2477/BN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BAT3320
|
Rutronik | LITH 3V 1000MAH Min Qty: 400 Package Multiple: 400 Container: Tray |
Stock DE - 800 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$1.8900 / $2.0600 | Buy Now |
|
DISTI #
000000000007169214
|
Sager | Coin Cell Battery CR Coin 1000mAH 3V Min Qty: 1 | 0 |
|
$1.7200 / $1.8000 | Buy Now |
|
DISTI #
CR-2477/BN
|
Avnet Abacus | Battery Lithium Manganese Dioxide Coin 3V 1000mAh Pressure Contact (Alt: CR-2477/BN) RoHS: Not Compliant Min Qty: 400 Package Multiple: 400 Lead time: 25 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
CR-2477/BN
|
Avnet Abacus | Battery Lithium Manganese Dioxide Coin 3V 1000mAh Pressure Contact (Alt: CR-2477/BN) RoHS: Not Compliant Min Qty: 1200 Package Multiple: 400 Lead time: 21 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CR-2477/BN
CR-2477/BN CAD Models
CR-2477/BN Part Data Attributes
|
|
CR-2477/BN
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
CR-2477/BN
Panasonic Electronic Components
BATTERY LITHIUM 3V COIN 24.5MM
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | Panasonic | |
| Battery Chemistry | LITHIUM MANGANESE DIOXIDE | |
| Battery Size | 2477 | |
| Battery Type | PRIMARY | |
| Capacity | 1 Ah | |
| Cut-off Voltage | 2 V | |
| Diameter | 24.5 mm | |
| Height | 7.7 mm | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Terminal Type | BUTTON(-), FLAT(+) | |
| Voltage | 3 V | |
| Weight | 10.5 g |
CR-2477/BN Frequently Asked Questions (FAQ)
-
Store in a cool, dry place away from direct sunlight, with a relative humidity of 60% or less, and a temperature range of 5°C to 30°C.
-
While the operating temperature range is -40°C to 85°C, it's recommended to derate the voltage and current ratings above 70°C to ensure reliability and prevent degradation.
-
Handle the component by the body, avoiding touching the leads or electrodes to prevent damage from static electricity or contamination.
-
Use a soldering temperature of 250°C to 260°C, and a soldering time of 3 seconds to 5 seconds to prevent thermal shock and ensure reliable connections.
-
While the component is designed to withstand some vibration and shock, it's recommended to secure the component properly and consider additional mechanical support to prevent damage or dislodging.
