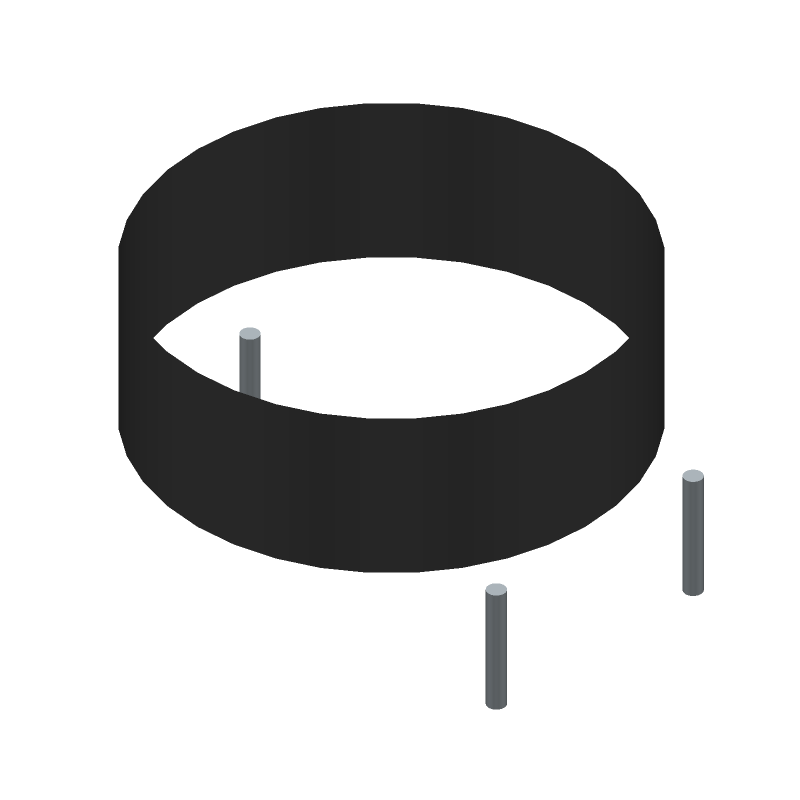

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CR-2032/GUN by Panasonic Electronic Components
Results Overview of CR-2032/GUN by Panasonic Electronic Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
CR-2032/GUN Information
CR-2032/GUN by Panasonic Electronic Components is a Battery.
Batteries are under the broader part category of Batteries.
A battery stores chemical energy and converts it to electrical energy through chemical reactions that involve the flow of electrons between electrodes. Batteries are used in electronics based on size and power needs. Read more about Batteries on our Batteries part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 51700-10203202AALF | Amphenol Communications Solutions | PwrBlade®, Power Connectors, 2P 32S 2P Vertical Header, Solder To Board | |
| 69802-032PT | Amphenol Communications Solutions | Surface Mount Type Sockets | |
| 51762-10203200AALF | Amphenol Communications Solutions | PwrBlade®, Power Connectors, 2P 32S Right Angle Receptacle, Solder To Board |
Price & Stock for CR-2032/GUN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CR-2032/GUN-ND
|
DigiKey | BATTERY LITHIUM 3V COIN 20MM Min Qty: 240 Lead time: 22 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.8171 | Buy Now |
|
DISTI #
658-CR-2032/GUN
|
Mouser Electronics | Coin Cell Battery 3V 220mAH | 5 |
|
$0.7830 / $1.3400 | Buy Now |
|
DISTI #
BAT482
|
Rutronik | LITH 3V 220MAH 3PINH Min Qty: 240 Package Multiple: 240 Container: Tray |
Stock DE - 8720 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.7825 / $0.8536 | Buy Now |
|
DISTI #
000000000007214908
|
Sager | Coin Cell Battery 3V 220mAH Min Qty: 1 | 0 |
|
$0.7070 / $0.8020 | Buy Now |
|
DISTI #
CR-2032/GUN
|
Avnet Abacus | Lithium Manganese Dioxide Coin 3V 022Ah Primary (Alt: CR-2032/GUN) RoHS: Not Compliant Min Qty: 960 Package Multiple: 240 Lead time: 25 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Batteries | 282 |
|
RFQ |
Part Details for CR-2032/GUN
CR-2032/GUN CAD Models
CR-2032/GUN Part Data Attributes
|
|
CR-2032/GUN
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
CR-2032/GUN
Panasonic Electronic Components
Primary Battery, 2032
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | Panasonic | |
| Battery Chemistry | LITHIUM MANGANESE DIOXIDE | |
| Battery Size | 2032 | |
| Battery Type | PRIMARY | |
| Capacity | 0.225 Ah | |
| Cut-off Voltage | 2 V | |
| Diameter | 20 mm | |
| Height | 3.15 mm | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Terminal Type | TAB | |
| Voltage | 3 V | |
| Weight | 2.8 g |
CR-2032/GUN Frequently Asked Questions (FAQ)
-
Store the batteries in a cool, dry place away from metal objects, with the terminals protected from accidental contact. Avoid storing them in high-temperature or high-humidity environments.
-
While CR-2032/GUN batteries can operate in temperatures up to 60°C, their performance and lifespan may degrade at high temperatures. For optimal performance, use them in applications with temperatures between -20°C and 40°C.
-
Handle the batteries by the edges, avoiding contact with the terminals. Use gloves and a wrist strap to prevent static electricity damage. Avoid bending, crushing, or puncturing the batteries, as this can cause leakage or corrosion.
-
While it's technically possible to connect CR-2032/GUN batteries in series or parallel, it's not recommended due to potential voltage and current imbalances, which can lead to reduced performance, overheating, or even fires.
-
The recommended discharge rate for CR-2032/GUN batteries is 1mA to 10mA. Discharging at higher rates may reduce the battery's capacity and lifespan.
