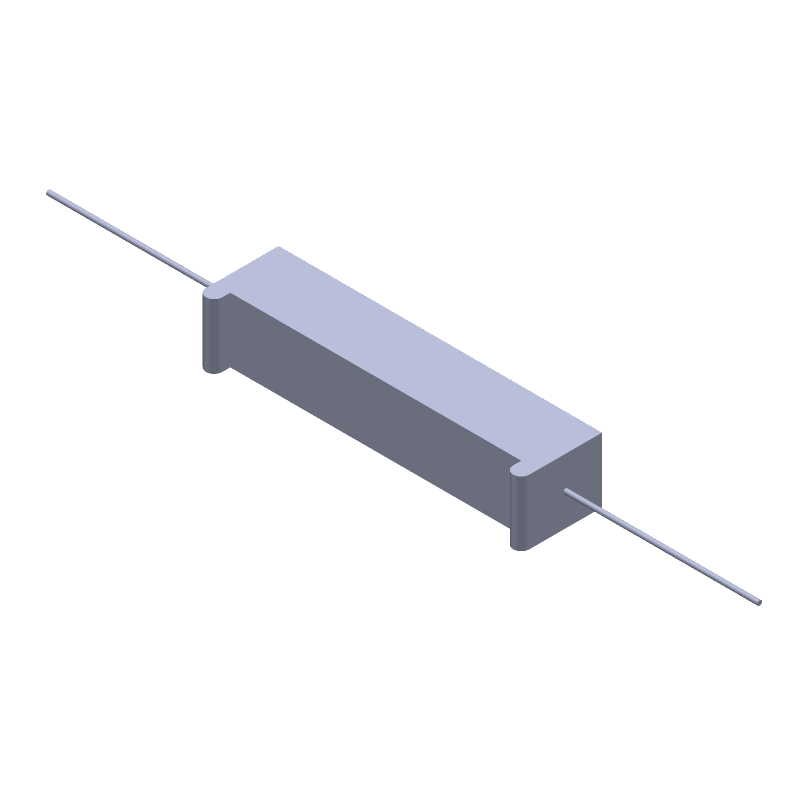

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CPW20R5000FB143 by Vishay Intertechnologies
Results Overview of CPW20R5000FB143 by Vishay Intertechnologies
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CPW20R5000FB143 Information
CPW20R5000FB143 by Vishay Intertechnologies is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CPW20R5000FB143
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CPW20R5000FB143
|
Avnet Americas | CPW-20-3 .5 1% B14 - Bulk (Alt: CPW20R5000FB143) RoHS: Not Compliant Min Qty: 5 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$78.4915 / $80.1268 | Buy Now |
|
DISTI #
71-CPW20R5000FB143
|
Mouser Electronics | Wirewound Resistors - Through Hole CPW-20-3 .5 1% B14 RoHS: Not Compliant | 0 |
|
$4.5700 / $4.6900 | Order Now |
Part Details for CPW20R5000FB143
CPW20R5000FB143 CAD Models
CPW20R5000FB143 Part Data Attributes
|
|
CPW20R5000FB143
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CPW20R5000FB143
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 20W, 0.5ohm, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FLAME PROOF | |
| JESD-609 Code | e0 | |
| Manufacturer Series | CPW | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 20 W | |
| Rated Temperature | 40 °C | |
| Resistance | 0.5 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 90 ppm/°C | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Shape | WIRE | |
| Tolerance | 1% |
