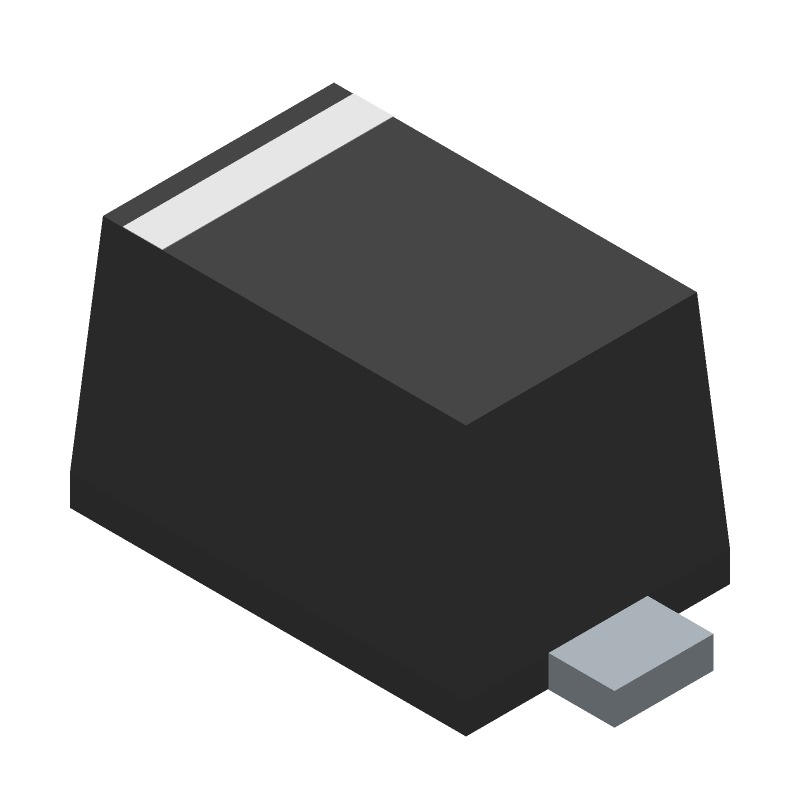

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CPDH3V3UP-HF by Comchip Technology Corporation Ltd
Results Overview of CPDH3V3UP-HF by Comchip Technology Corporation Ltd
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
CPDH3V3UP-HF Information
CPDH3V3UP-HF by Comchip Technology Corporation Ltd is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for CPDH3V3UP-HF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
641-1486-1-ND
|
DigiKey | TVS DIODE 3.3VWM 8VC SOD523 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
122332 In Stock |
|
$0.1222 / $0.4000 | Buy Now |
|
DISTI #
750-CPDH3V3UP-HF
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 5.5V, 15Kv RoHS: Compliant | 24362 |
|
$0.1220 / $0.4000 | Buy Now |
|
DISTI #
V99:2348_14718675
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 381 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2218 | Americas - 381 |
|
$0.1240 / $0.1684 | Buy Now |
|
DISTI #
V72:2272_14718675
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2210 Container: Cut Strips | Americas - 225 |
|
$0.2275 | Buy Now |
|
DISTI #
72485222
|
Verical | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 381 Package Multiple: 1 Date Code: 2218 | Americas - 381 |
|
$0.1684 | Buy Now |
|
DISTI #
61602070
|
Verical | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 45 Package Multiple: 1 Date Code: 2210 | Americas - 225 |
|
$0.2275 | Buy Now |
|
|
Bristol Electronics | 30550 |
|
RFQ | ||
|
|
Karl Kruse GmbH & Co KG | 306000 |
|
RFQ | ||
|
|
NAC | Trans Voltage Suppressor Diode,3.3VV(RWM),Unidirectional RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$0.1330 / $0.3300 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 165000 |
|
RFQ |
Part Details for CPDH3V3UP-HF
CPDH3V3UP-HF CAD Models
CPDH3V3UP-HF Part Data Attributes
|
|
CPDH3V3UP-HF
Comchip Technology Corporation Ltd
Buy Now
Datasheet
|
Compare Parts:
CPDH3V3UP-HF
Comchip Technology Corporation Ltd
Trans Voltage Suppressor Diode, 3.3V V(RWM), Unidirectional,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COMCHIP TECHNOLOGY CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | Comchip Technology | |
| Clamping Voltage-Max | 8 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| Non-rep Peak Rev Power Dis-Max | 40 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
CPDH3V3UP-HF Frequently Asked Questions (FAQ)
-
For optimal performance, it is recommended to follow a 4-layer PCB stackup with a solid ground plane, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended for the top and bottom layers.
-
To ensure EMC, it is recommended to follow proper PCB layout practices, use shielding, and add filtering components such as ferrite beads and capacitors to minimize electromagnetic interference.
-
The recommended input capacitance value is 10uF to 22uF, with an ESR of less than 1 ohm. This ensures stable output voltage and minimizes ripple.
-
The CPDH3V3UP-HF is rated for operation up to 85°C. However, for high-temperature environments above 85°C, it is recommended to derate the output current and consider additional thermal management measures.
-
To troubleshoot output voltage deviations or instability issues, check the input voltage, output load, and PCB layout. Ensure that the input capacitance value is within the recommended range, and that the output is not overloaded. Also, verify that the device is properly soldered and that there are no signs of overheating.
