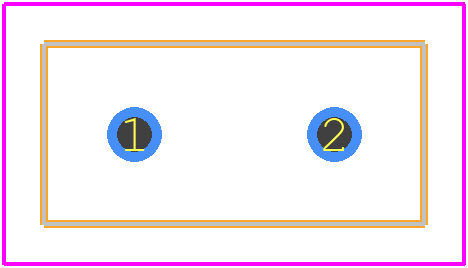

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CMF-RL10-0 by Bourns Inc
Results Overview of CMF-RL10-0 by Bourns Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CMF-RL10-0 Information
CMF-RL10-0 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CMF-RL10-0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM2766
|
Newark | Ceramic Ptc Rohs Compliant: Yes |Bourns CMF-RL10-0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 3444 |
|
$0.2570 / $0.2750 | Buy Now |
|
DISTI #
66W1297
|
Newark | Resettable Ptc Fuse, 220V, 150Ma, Radial, Thermistor Mounting:Through Hole, Product Range:Cmf-Rl Series, Holding Current:150Ma, Tripping Current:300Ma, Voltage Rating:220Vac, Operating Temperature Min:-40°C, Operating Temperature Rohs Compliant: Yes |Bourns CMF-RL10-0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1892 |
|
$0.4220 / $0.7380 | Buy Now |
|
DISTI #
14P5384
|
Newark | Fuse, Resettable Ptc, 220V, 150Ma, Radial, Product Range:Cmf-Rl Series, Voltage Rating:220Vac, Holding Current:150Ma, Trip Current:300Ma, Operating Temperature Min:-40°C, Operating Temperature Max:125°C, Initial Resistance Max:10Ohm Rohs Compliant: Yes |Bourns CMF-RL10-0 RoHS: Compliant Min Qty: 2400 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.4810 / $0.5050 | Buy Now |
|
DISTI #
CMF-RL10-0
|
Avnet Americas | - Trays (Alt: CMF-RL10-0) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Tray | 3444 |
|
$0.2431 / $0.2750 | Buy Now |
|
DISTI #
652-CMF-RL10-0
|
Mouser Electronics | Resettable Fuses - PPTC RESETTABLE FUSE 230VOLT 10OHM RoHS: Compliant | 4825 |
|
$0.3210 / $0.5300 | Buy Now |
|
DISTI #
E02:0323_00457843
|
Arrow Electronics | PTC Resettable Fuse 0.15A(hold) 0.3A(trip) 60VDC 3A 0.45s Radial 9.5 X 4.5mm Bulk Min Qty: 2400 Package Multiple: 300 Lead time: 18 Weeks Date Code: 2344 | Europe - 3000 |
|
$0.2972 | Buy Now |
|
DISTI #
V36:1790_06247986
|
Arrow Electronics | PTC Resettable Fuse 0.15A(hold) 0.3A(trip) 60VDC 3A 0.45s Radial 9.5 X 4.5mm Bulk Min Qty: 8 Package Multiple: 1 Lead time: 16 Weeks Date Code: 1714 | Americas - 8 |
|
$0.2623 | Buy Now |
|
DISTI #
73197072
|
RS | Ceramic PTCBulk, Bag Packaging Min Qty: 2400 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3870 | RFQ |
|
|
Onlinecomponents.com | PTC Resettable Fuse 0.15A(hold) 0.3A(trip) 220VAC 0.15s Radial 9.5 X 4.5mm Bulk RoHS: Compliant |
14295 In Stock |
|
$0.2767 / $0.3520 | Buy Now |
|
DISTI #
53202804
|
Verical | PTC Resettable Fuse 0.15A(hold) 0.3A(trip) 60VDC 3A 0.45s Radial 9.5 X 4.5mm Bulk Min Qty: 300 Package Multiple: 300 Date Code: 2040 | Americas - 14100 |
|
$0.3407 / $0.4141 | Buy Now |
Part Details for CMF-RL10-0
CMF-RL10-0 CAD Models
CMF-RL10-0 Part Data Attributes
|
|
CMF-RL10-0
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
CMF-RL10-0
Bourns Inc
PTC Resettable Fuse, 10ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 14 mm | |
| Package Length | 9.8 mm | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Package Width | 5 mm | |
| Packing Method | TRAY | |
| Reference Standard | UL | |
| Resistance | 10 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) - Copper (Cu) | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Tolerance | 20% | |
| Working Voltage | 60 V |
