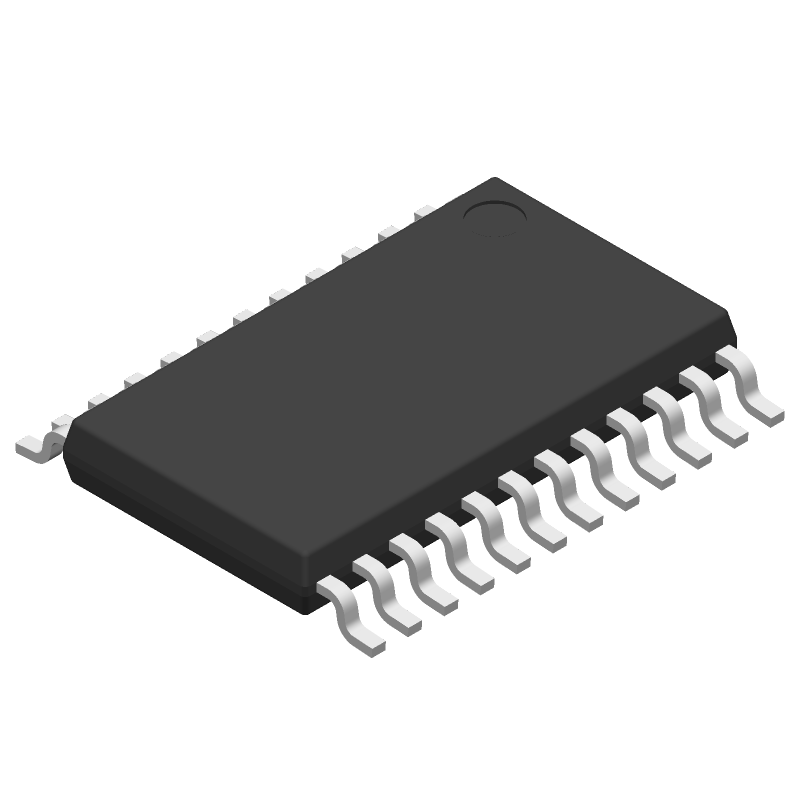

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CLVCC4245AMPWREPG4 by Texas Instruments
Results Overview of CLVCC4245AMPWREPG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Computing and Data Storage
Financial Technology (Fintech)
CLVCC4245AMPWREPG4 Information
CLVCC4245AMPWREPG4 by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CLVCC4245AMPWREPG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-VCC4245AMPWREPG4
|
Mouser Electronics | Translation - Voltage Levels EP Octal Dual-Supply Bus Xcvr A 595-CLVCC4245AMPWREP RoHS: Compliant | 0 |
|
$1.9900 / $5.6000 | Order Now |
|
|
Vyrian | Logic ICs | 354 |
|
RFQ |
Part Details for CLVCC4245AMPWREPG4
CLVCC4245AMPWREPG4 CAD Models
CLVCC4245AMPWREPG4 Part Data Attributes
|
|
CLVCC4245AMPWREPG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CLVCC4245AMPWREPG4
Texas Instruments
Enhanced Product Octal Dual-Supply Bus Transceiver W/Configurable Output Voltage And 3S Out 24-TSSOP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP24,.25 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Control Type | COMMON CONTROL | |
| Count Direction | BIDIRECTIONAL | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 7.8 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS TRANSCEIVER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP24,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.13 mA | |
| Prop. Delay@Nom-Sup | 7.1 ns | |
| Propagation Delay (tpd) | 7 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for CLVCC4245AMPWREPG4
This table gives cross-reference parts and alternative options found for CLVCC4245AMPWREPG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CLVCC4245AMPWREPG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| V62/06658-01XE | Texas Instruments | Check for Price | Enhanced Product Octal Dual-Supply Bus Transceiver W/Configurable Output Voltage And 3S Out 24-TSSOP -55 to 125 | CLVCC4245AMPWREPG4 vs V62/06658-01XE |
| 74LVXC4245QSC | onsemi | Check for Price | 8-Bit Dual Supply Configurable Voltage Interface Transceiver with 3-STATE Outputs, QSOP-24, 5400-TUBE | CLVCC4245AMPWREPG4 vs 74LVXC4245QSC |
| 74LVXC4245QSCX | onsemi | Check for Price | 8-Bit Dual Supply Configurable Voltage Interface Transceiver with 3-STATE Outputs, QSOP-24, 2500-REEL | CLVCC4245AMPWREPG4 vs 74LVXC4245QSCX |
| 74LVXC4245QSCX | Fairchild Semiconductor Corporation | Check for Price | Bus Transceiver, LV/LV-A/LVX/H Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.150 INCH, MO-137, QSOP-24 | CLVCC4245AMPWREPG4 vs 74LVXC4245QSCX |
| 74LVXC4245QSCX_NL | Fairchild Semiconductor Corporation | Check for Price | Bus Transceiver, LV/LV-A/LVX/H Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.150 INCH, MO-137, QSOP-24 | CLVCC4245AMPWREPG4 vs 74LVXC4245QSCX_NL |
CLVCC4245AMPWREPG4 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure the device operates within the recommended operating conditions, it's crucial to follow the guidelines outlined in the datasheet. This includes maintaining the recommended voltage supply range, operating temperature range, and input/output voltage ranges. Additionally, it's essential to provide adequate heat sinking and to avoid exceeding the maximum junction temperature.
-
The maximum allowable input voltage swing for the CLVCC4245AMPWREPG4 is not explicitly stated in the datasheet. However, according to Texas Instruments' application notes, the device can tolerate input voltage swings up to 2.5 times the supply voltage without damage. However, it's recommended to limit the input voltage swing to 1.5 times the supply voltage to ensure optimal performance and reliability.
-
The CLVCC4245AMPWREPG4 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD protection devices such as wrist straps or mats.
-
The recommended termination scheme for the output signals of the CLVCC4245AMPWREPG4 depends on the specific application and the transmission line characteristics. However, in general, it's recommended to use a 50-ohm termination resistor in series with a 100-ohm termination resistor to ensure proper signal integrity and to minimize reflections.
