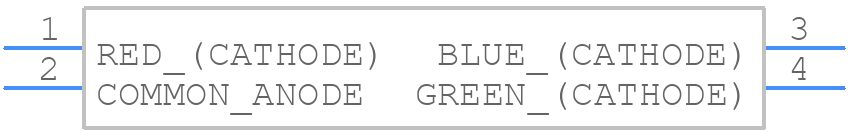

Part Symbol
-
Footprint
-

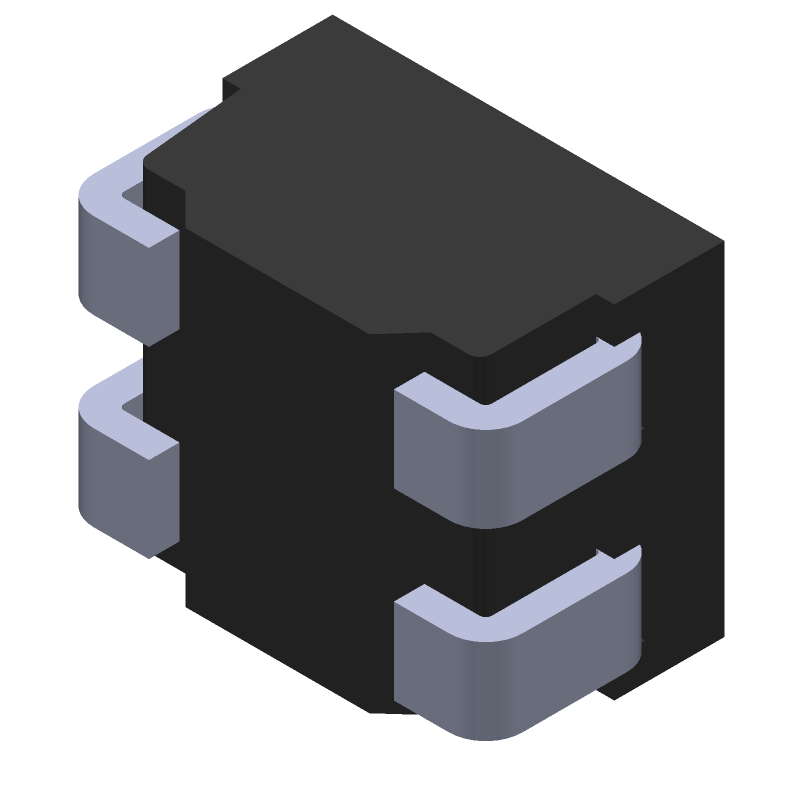

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CLVBA-FKA-CAEDH8BBB7A363 by Cree, Inc.
Results Overview of CLVBA-FKA-CAEDH8BBB7A363 by Cree, Inc.
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Energy and Power Systems
Agriculture Technology
Medical Imaging
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
CLVBA-FKA-CAEDH8BBB7A363 Information
CLVBA-FKA-CAEDH8BBB7A363 by Cree, Inc. is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for CLVBA-FKA-CAEDH8BBB7A363
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79AH0014
|
Newark | Full Rank, Tape & Reel |Cree Led CLVBA-FKA-CAEDH8BBB7A363 RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 2000 |
|
Buy Now | |
|
DISTI #
83T3705
|
Newark | Led, Hb, Rgb, Smd, 130Mw, Led Color:Red, Green, Blue, Led Mounting:Smd, Bulb Size:-, Viewing Angle:110°, Lens Shape:Round, Forward Current/Color:R 50Ma, G 25Ma, B 25Ma, Luminous Intensity/Color:R 320Mcd, G 500Mcd, B 160Mcd Rohs Compliant: Yes |Cree Led CLVBA-FKA-CAEDH8BBB7A363 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.4160 | Buy Now |
|
DISTI #
CLVBA-FKA-CAEDH8BBB7A363CT-ND
|
DigiKey | LED RGB DIFFUSED 4PLCC SMD Min Qty: 1 Lead time: 2 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8908 In Stock |
|
$0.3880 / $0.5000 | Buy Now |
|
DISTI #
CLVBA-FKA-CAEDH8BB
|
Avnet Americas | LED, RGB, Red, Green, Blue, SMD, 110 ?, Round, R 50mA, G 25mA, B 25mA - Tape and Reel (Alt: CLVBA-FKA-CAEDH8BB) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 2 Weeks, 0 Days Container: Reel | 2000 |
|
$0.2600 | Buy Now |
|
DISTI #
941-VBAFKACAEDH8B7A3
|
Mouser Electronics | Multi-Color LEDs 120DG RD/GR/BL BK BD 470,527,620NM RoHS: Compliant | 14725 |
|
$0.3880 / $0.5000 | Buy Now |
|
DISTI #
E54:1762_03504045
|
Arrow Electronics | LED Tri-Color Blue/Green/Red 4-Pin PLCC T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 2 Weeks | Europe - 6000 |
|
$0.3872 | Buy Now |
|
DISTI #
V72:2272_06264984
|
Arrow Electronics | LED Tri-Color Blue/Green/Red 4-Pin PLCC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2422 Container: Cut Strips | Americas - 38 |
|
$0.3233 / $0.3771 | Buy Now |
|
DISTI #
81324359
|
Verical | LED Tri-Color Blue/Green/Red 4-Pin PLCC T/R RoHS: Compliant Min Qty: 21 Package Multiple: 1 Date Code: 2422 | Americas - 38 |
|
$0.3233 / $0.3624 | Buy Now |
|
DISTI #
CLVBAFKACADH8BB7A363
|
TTI | Multi-Color LEDs RGB SMD RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 6000 In Stock |
|
$0.3500 | Buy Now |
|
DISTI #
SMC-CLVBA-FKA-CAEDH8BBB7A363
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Tape & Reel | 54 |
|
RFQ |
Part Details for CLVBA-FKA-CAEDH8BBB7A363
CLVBA-FKA-CAEDH8BBB7A363 CAD Models
CLVBA-FKA-CAEDH8BBB7A363 Part Data Attributes
|
|
CLVBA-FKA-CAEDH8BBB7A363
Cree, Inc.
Buy Now
Datasheet
|
Compare Parts:
CLVBA-FKA-CAEDH8BBB7A363
Cree, Inc.
Triple Color LED, Red/green/blue, 3.20 X 2.80 MM, ROHS COMPLIANT, PLASTIC, SMD, LCC-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CREE LED INC | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Factory Lead Time | 2 Weeks | |
| Samacsys Manufacturer | CREE LED | |
| Additional Feature | HIGH RELIABILITY | |
| Color | RED/GREEN/BLUE | |
| Configuration | COMMON ANODE, 3 ELEMENTS | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 2.4 V | |
| Luminous Intensity-Nom | 147.5/295.0/74.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRIPLE COLOR LED | |
| Overall Height | 1.9 mm | |
| Packing Method | TR, 7 INCH | |
| Reverse Voltage-Max | 5 V | |
| Shape | ROUND | |
| Surface Mount | YES |
Alternate Parts for CLVBA-FKA-CAEDH8BBB7A363
This table gives cross-reference parts and alternative options found for CLVBA-FKA-CAEDH8BBB7A363. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CLVBA-FKA-CAEDH8BBB7A363, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CLVBA-FKA-CAEDH8BBB7A363 | Wolfspeed | Check for Price | Triple Color LED, Red/green/blue, LCC-4 | CLVBA-FKA-CAEDH8BBB7A363 vs CLVBA-FKA-CAEDH8BBB7A363 |
