Connectors / Headers and Edge Type Connectors / CLT-107-02-F-D
Datasheets
CLT-107-02-F-D by: Samtec Inc

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

Part Details for CLT-107-02-F-D by Samtec Inc

Results Overview of CLT-107-02-F-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Internet of Things (IoT) Industrial Automation Transportation and Logistics Automotive

CLT-107-02-F-D Information

CLT-107-02-F-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for CLT-107-02-F-D

Part # Distributor Description Stock Price Buy
DISTI # 88P0014
Newark Low Profile Dual-Wipe Socket |Samtec CLT-107-02-F-D RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 503
  • 1 $3.0300
  • 50 $2.5500
  • 100 $2.0800
  • 500 $1.3800
  • 1,000 $1.0500
$1.0500 / $3.0300 Buy Now
DISTI # SAM11020-ND
DigiKey CONN RCPT 14POS 0.079 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube 17
In Stock
  • 1 $1.9000
  • 50 $1.7038
  • 100 $1.4462
  • 500 $1.3021
  • 1,000 $1.1040
$1.1040 / $1.9000 Buy Now
DISTI # 3937-CLT-107-02-F-D-ND
DigiKey CONN RCPT 14POS 0.079 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube MARKETPLACE PRODUCT Temporarily Out of Stock
Buy Now
DISTI # CLT-107-02-F-D
Avnet Americas Conn Socket Strip SKT 14 POS 2mm Solder ST SMD Tube - Rail/Tube (Alt: CLT-107-02-F-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Tube 503 Factory Stock
  • 1 $1.8620
  • 10 $1.8525
  • 30 $1.4028
  • 50 $1.3956
  • 100 $1.3883
$1.3883 / $1.8620 Buy Now
DISTI # 200-CLT10702FD
Mouser Electronics Headers & Wire Housings Low Profile Dual-Wipe Socket RoHS: Compliant 117
  • 1 $1.9000
  • 82 $1.7000
  • 533 $1.3000
  • 1,025 $1.0800
  • 2,009 $0.9740
  • 5,002 $0.7820
  • 10,004 $0.5630
$0.5630 / $1.9000 Buy Now
Onlinecomponents.com 2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip RoHS: Compliant 0
  • 25 $1.7690
  • 100 $1.4840
  • 250 $1.4380
  • 500 $1.3730
  • 1,000 $1.1140
  • 2,500 $0.8900
  • 5,000 $0.7070
  • 7,500 $0.6960
$0.6960 / $1.7690 Buy Now
DISTI # 85054219
Verical Conn Socket Strip SKT 14 POS 2mm Solder ST Top Entry SMD TIGER CLAW™ Tube RoHS: Compliant Min Qty: 6 Package Multiple: 1 Americas - 503
  • 6 $1.9000
  • 50 $1.7000
  • 100 $1.4500
  • 500 $1.3000
  • 1,000 $1.0700
$1.0700 / $1.9000 Buy Now
DISTI # 5cd8d773cd7c1c4c38240015
Samtec Low Profile Dual Wipe Socket, 2.00 mm Pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 503
  • 1 $1.9000
  • 50 $1.7000
  • 100 $1.4500
  • 500 $1.3000
  • 1,000 $1.0700
  • 2,000 $0.8700
  • 5,000 $0.6800
  • 10,000 $0.4900
$0.4900 / $1.9000 Buy Now
Powell Electronics 2.00 mm Tiger Claw Rugged Reliable Dual Min Qty: 1 332
  • 1 $1.9000
  • 50 $1.7000
  • 100 $1.4500
  • 500 $1.3000
  • 1,000 $1.0700
$1.0700 / $1.9000 Buy Now
DISTI # 000000000000102289
Sager Headers & Wire Housings Low Profile Dual-Wipe Socket, 2.00 mm Pitch Min Qty: 1 503
  • 1 $1.9000
  • 50 $1.7000
  • 100 $1.4500
  • 500 $1.3000
  • 1,000 $1.0700
  • 2,000 $0.8700
$0.8700 / $1.9000 Buy Now
DISTI # CLT-107-02-F-D
Avnet Abacus PCB Receptacle Bottom Entry BoardtoBoard 2 mm 2 Rows 14 Contacts Surface Mount (Alt: CLT-107-02-F-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip RoHS: Compliant 0
  • 25 $1.7690
  • 100 $1.4840
  • 250 $1.4380
  • 500 $1.3730
  • 1,000 $1.1140
  • 2,500 $0.8900
  • 5,000 $0.7070
  • 7,500 $0.6960
$0.6960 / $1.7690 Buy Now

Part Details for CLT-107-02-F-D

CLT-107-02-F-D CAD Models

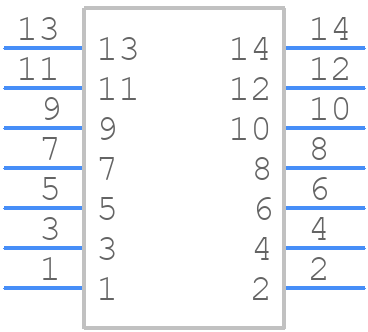

  • Part Symbol

    Part Symbol

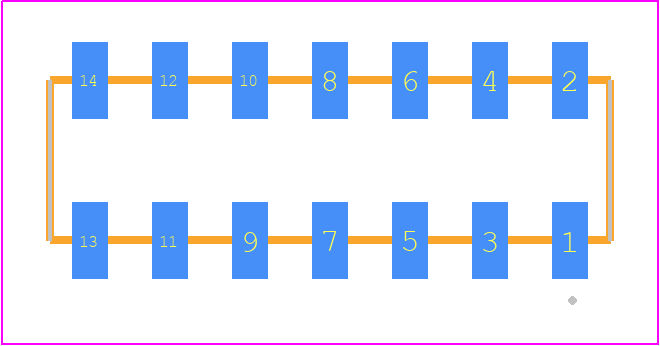

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CLT-107-02-F-D Part Data Attributes

Parametric Data
CLT-107-02-F-D Samtec Inc
Buy Now Datasheet
Compare Parts:
CLT-107-02-F-D Samtec Inc Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
Factory Lead Time 111 Weeks
Samacsys Manufacturer SAMTEC
Additional Feature TIGER CLAW CONTACT
Body Breadth 0.158 inch
Body Depth 0.024 inch
Body Length 0.551 inch
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD FLASH (3) OVER NICKEL (50)
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 1 Cycles
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.078 inch
Mating Contact Row Spacing 0.078 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 4 mm
Plating Thickness 3u inch
Rated Current (Signal) 4.1 A
Reference Standard UL
Terminal Pitch 2 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 14
UL Flammability Code 94V-0

Alternate Parts for CLT-107-02-F-D

This table gives cross-reference parts and alternative options found for CLT-107-02-F-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CLT-107-02-F-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CLT-107-02-L-D-BE Samtec Inc $2.0223 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, CLT-107-02-F-D vs CLT-107-02-L-D-BE
CLT-107-02-L-D Samtec Inc $2.0424 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-L-D
CLT-107-02-F-D-K Samtec Inc $2.0820 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-F-D-K
CLT-107-02-G-D Samtec Inc $2.0978 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-G-D
CLT-107-02-L-D-P Samtec Inc $2.7519 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-L-D-P
CLT-107-02-G-D-BE Samtec Inc $2.8460 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, CLT-107-02-F-D vs CLT-107-02-G-D-BE
CLT-107-02-G-D-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-G-D-TR
CLT-107-02-L-D-FR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, CLT-107-02-F-D vs CLT-107-02-L-D-FR
CLT-107-02-H-D Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D vs CLT-107-02-H-D
CLT-107-02-SM-D-BE Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D vs CLT-107-02-SM-D-BE
Part Number Manufacturer Composite Price Description Compare
CLT-107-01-FM-D Samtec Inc $1.8877 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, CLT-107-02-F-D vs CLT-107-01-FM-D
CLT-107-02-L-D-BE-A-P Samtec Inc $3.2412 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-L-D-BE-A-P
CLT-107-02-H-D-A-P-FR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.078 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, CLT-107-02-F-D vs CLT-107-02-H-D-A-P-FR
CLT-107-02-G-D-BE-A-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-G-D-BE-A-TR
CLT-107-02-G-D-BE-P-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-G-D-BE-P-TR
CLT-107-02-S-D-P Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D vs CLT-107-02-S-D-P
CLT-107-02-FM-D-BE-P Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D vs CLT-107-02-FM-D-BE-P
CLT-107-02-S-D-A-K-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D vs CLT-107-02-S-D-A-K-TR
CLT-107-02-L-D-A-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D vs CLT-107-02-L-D-A-TR
CLT-107-02-S-D-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D vs CLT-107-02-S-D-TR

CLT-107-02-F-D Related Parts

CLT-107-02-F-D Frequently Asked Questions (FAQ)

  • The recommended torque for the screws on the CLT-107-02-F-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's general guidelines for screw-down terminals.

  • Yes, the CLT-107-02-F-D connector is designed to withstand vibration and can be used in high-vibration environments. However, it's essential to follow proper mounting and screw-tightening procedures to ensure reliable connections.

  • Yes, the CLT-107-02-F-D connector is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of lead-free soldering, and the CLT-107-02-F-D is no exception.

  • The maximum operating temperature for the CLT-107-02-F-D connector is 125°C (257°F) according to Samtec's specifications. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation.

  • The CLT-107-02-F-D connector is not designed for use in wet or humid environments. If you need a connector for such applications, consider Samtec's sealed or waterproof connectors, such as the IP67-rated CLT-107-02-F-D-VL.
