CLT-107-02-F-D-BE by: Samtec Inc

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,

Part Details for CLT-107-02-F-D-BE by Samtec Inc

Results Overview of CLT-107-02-F-D-BE by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Internet of Things (IoT) Industrial Automation Transportation and Logistics Automotive

CLT-107-02-F-D-BE Information

CLT-107-02-F-D-BE by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for CLT-107-02-F-D-BE

Part # Distributor Description Stock Price Buy
DISTI # 88P0019
Newark Low Profile Dual-Wipe Socket |Samtec CLT-107-02-F-D-BE RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 503
  • 1 $3.3400
  • 50 $2.8200
  • 100 $2.2900
  • 500 $1.5200
  • 1,000 $1.1600
$1.1600 / $3.3400 Buy Now
DISTI # SAM11019-ND
DigiKey CONN RCPT 14POS 0.079 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube 32
In Stock
  • 1 $2.0900
  • 50 $1.8736
  • 100 $1.5912
  • 500 $1.4325
  • 1,000 $1.1988
$1.1988 / $2.0900 Buy Now
DISTI # CLT-107-02-F-D-BE
Avnet Americas Conn Socket Strip SKT 14 POS 2mm Solder ST SMD Tube - Rail/Tube (Alt: CLT-107-02-F-D-BE) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube 503 Factory Stock
  • 1 $2.0482
  • 10 $1.9129
  • 30 $1.5423
  • 50 $1.5344
  • 100 $1.5264
$1.5264 / $2.0482 Buy Now
DISTI # CLT-107-02-F-D-BE
Avnet Americas Conn Socket Strip SKT 14 POS 2mm Solder ST SMD Tube - Rail/Tube (Alt: CLT-107-02-F-D-BE) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube 503 Factory Stock
  • 1 $2.0482
  • 10 $1.9129
  • 30 $1.5423
  • 50 $1.5344
  • 100 $1.5264
$1.5264 / $2.0482 Buy Now
DISTI # 200-CLT10702FDBE
Mouser Electronics Headers & Wire Housings Low Profile Dual-Wipe Socket RoHS: Compliant 332
  • 1 $2.0900
  • 82 $1.8700
  • 533 $1.4300
  • 1,025 $1.1900
  • 2,009 $1.1000
  • 5,002 $0.9210
$0.9210 / $2.0900 Buy Now
DISTI # V36:1790_07922769
Arrow Electronics Conn Socket Strip SKT 14 POS 2mm Solder ST Bottom Entry SMD TIGER CLAW™ Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Date Code: 2128 Americas - 5
  • 1 $2.0900
  • 50 $1.8700
  • 100 $1.5900
  • 500 $1.5860
$1.5860 / $2.0900 Buy Now
Onlinecomponents.com 2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip RoHS: Compliant 0
  • 10 $1.9620
  • 100 $1.5940
  • 250 $1.5220
  • 500 $1.4780
  • 1,000 $1.2290
  • 2,500 $0.9860
  • 5,000 $0.7730
  • 7,500 $0.7620
$0.7620 / $1.9620 Buy Now
DISTI # 85030505
Verical Conn Socket Strip SKT 14 POS 2mm Solder ST Bottom Entry SMD TIGER CLAW™ Tube RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2128 Americas - 503
  • 5 $2.0900
  • 50 $1.8700
  • 100 $1.5900
  • 500 $1.4300
  • 1,000 $1.1800
$1.1800 / $2.0900 Buy Now
DISTI # 5cd8d718cd7c1c4c3823937e
Samtec Low Profile Dual Wipe Socket, 2.00 mm Pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 503
  • 1 $2.0900
  • 50 $1.8700
  • 100 $1.5900
  • 500 $1.4300
  • 1,000 $1.1800
  • 2,000 $0.9600
  • 5,000 $0.7500
  • 10,000 $0.5400
$0.5400 / $2.0900 Buy Now
Powell Electronics 2.00 mm Tiger Claw Rugged Reliable Dual Min Qty: 1 332
  • 1 $2.0900
  • 50 $1.8700
  • 100 $1.5900
  • 500 $1.4300
  • 1,000 $1.1800
$1.1800 / $2.0900 Buy Now
DISTI # 000000000001283951
Sager Headers & Wire Housings Low Profile Dual-Wipe Socket, 2.00 mm Pitch Min Qty: 1 503
  • 1 $2.0900
  • 50 $1.8700
  • 100 $1.5900
  • 500 $1.4300
  • 1,000 $1.1800
  • 2,000 $0.9600
$0.9600 / $2.0900 Buy Now
DISTI # CLT-107-02-F-D-BE
Avnet Abacus PCB Receptacle Bottom Entry BoardtoBoard 2 mm 2 Rows 14 Contacts Surface Mount (Alt: CLT-107-02-F-D-BE) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip RoHS: Compliant 0
  • 10 $1.9620
  • 100 $1.5940
  • 250 $1.5220
  • 500 $1.4780
  • 1,000 $1.2290
  • 2,500 $0.9860
  • 5,000 $0.7730
  • 7,500 $0.7620
$0.7620 / $1.9620 Buy Now

Part Details for CLT-107-02-F-D-BE

CLT-107-02-F-D-BE CAD Models

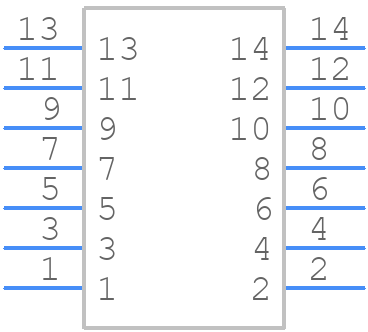

  • Part Symbol

    Part Symbol

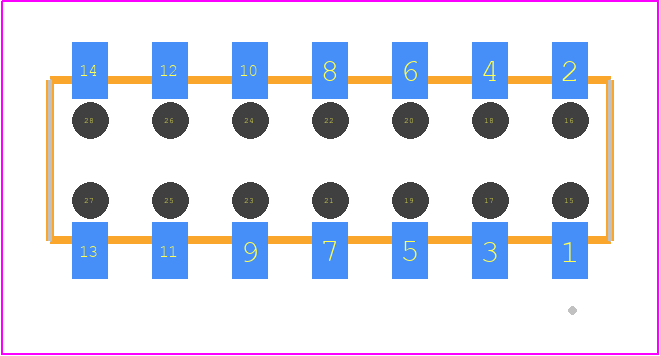

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CLT-107-02-F-D-BE Part Data Attributes

Parametric Data
CLT-107-02-F-D-BE Samtec Inc
Buy Now Datasheet
Compare Parts:
CLT-107-02-F-D-BE Samtec Inc Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Additional Feature TIGER CLAW CONTACT
Body Breadth 0.157 inch
Body Depth 0.09 inch
Body Length 0.551 inch
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD FLASH OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.079 inch
Mating Contact Row Spacing 0.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 4.6 mm
Plating Thickness FLASH inch
Rated Current (Signal) 4.1 A
Terminal Pitch 2 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 14

Alternate Parts for CLT-107-02-F-D-BE

This table gives cross-reference parts and alternative options found for CLT-107-02-F-D-BE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CLT-107-02-F-D-BE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CLT-107-02-F-D Samtec Inc $1.8877 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-02-F-D
CLT-107-02-F-D-A Samtec Inc $1.9754 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-02-F-D-A
CLT-107-02-F-D-P Samtec Inc $2.2246 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-02-F-D-P
CLT-107-02-FM-D-A Samtec Inc $2.3179 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D-BE vs CLT-107-02-FM-D-A
CLT-107-02-L-D-A Samtec Inc $2.3991 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-02-L-D-A
CLT-107-02-G-D-K Samtec Inc $2.7753 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-02-G-D-K
CLT-107-02-G-D-BE Samtec Inc $2.8460 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, CLT-107-02-F-D-BE vs CLT-107-02-G-D-BE
CLT-107-02-FM-D-BE Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D-BE vs CLT-107-02-FM-D-BE
CLT-107-02-S-D-P Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D-BE vs CLT-107-02-S-D-P
CLT-107-02-LM-D-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D-BE vs CLT-107-02-LM-D-TR
Part Number Manufacturer Composite Price Description Compare
CLT-107-01-F-D Samtec Inc $1.8877 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-01-F-D
CLT-107-02-L-D-A-P Samtec Inc $3.0098 Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-02-L-D-A-P
CLT-107-02-G-D-BE-K-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-02-G-D-BE-K-TR
CLT-107-02-L-D-K-FR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.078 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, CLT-107-02-F-D-BE vs CLT-107-02-L-D-K-FR
CLT-107-02-L-D-BE-A-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-107-02-F-D-BE vs CLT-107-02-L-D-BE-A-TR
CLT-107-02-L-D-BE-FR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.078 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, CLT-107-02-F-D-BE vs CLT-107-02-L-D-BE-FR
CLT-107-02-FM-D-BE-K-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D-BE vs CLT-107-02-FM-D-BE-K-TR
CLT-107-02-S-D-A-K-TR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D-BE vs CLT-107-02-S-D-A-K-TR
CLT-107-02-H-D-BE-P-FR Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.078 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, CLT-107-02-F-D-BE vs CLT-107-02-H-D-BE-P-FR
CLT-107-02-FM-D-BE-P Samtec Inc Check for Price Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-107-02-F-D-BE vs CLT-107-02-FM-D-BE-P

CLT-107-02-F-D-BE Related Parts

CLT-107-02-F-D-BE Frequently Asked Questions (FAQ)

  • The recommended torque is 1.5-2.5 in-lbs (0.17-0.28 Nm) for the screws on the CLT-107-02-F-D-BE connector, as specified in the Samtec application notes.

  • Yes, the CLT-107-02-F-D-BE connector is designed to withstand high-vibration environments, with a tested vibration frequency range of 10-2000 Hz and an acceleration of 20 G.

  • The CLT-107-02-F-D-BE connector is rated for operating temperatures between -55°C and 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the connector is properly derated for high-temperature use.

  • The CLT-107-02-F-D-BE connector has a mating cycle life of 500 cycles, as specified in the Samtec datasheet.

  • Yes, the CLT-107-02-F-D-BE connector is RoHS and REACH compliant, meeting the requirements for lead-free and hazardous substance-free materials.
