CLT-106-02-L-D-BE-P-TR by: Samtec Inc

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT

Part Details for CLT-106-02-L-D-BE-P-TR by Samtec Inc

Results Overview of CLT-106-02-L-D-BE-P-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CLT-106-02-L-D-BE-P-TR Information

CLT-106-02-L-D-BE-P-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for CLT-106-02-L-D-BE-P-TR

Part # Distributor Description Stock Price Buy
DISTI # 87P9970
Newark Low Profile Dual-Wipe Socket |Samtec CLT-106-02-L-D-BE-P-TR RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # CLT-106-02-L-D-BE-P-TR-ND
DigiKey CONN RCPT 12POS 0.079 GOLD SMD Min Qty: 1225 Lead time: 6 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,225 $1.4478
$1.4478 Buy Now
DISTI # CLT-106-02-L-D-BE-P-TR
Avnet Americas Conn Socket Strip SKT 12 POS 2mm Solder ST SMD T/R - Tape and Reel (Alt: CLT-106-02-L-D-BE-P-TR) RoHS: Compliant Min Qty: 1225 Package Multiple: 1225 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 1,225 $1.6339
  • 2,450 $1.3433
  • 4,900 $1.3029
  • 7,350 $1.0585
  • 9,800 $1.0248
$1.0248 / $1.6339 Buy Now
DISTI # 200-CLT10602LDBEPTR
Mouser Electronics Headers & Wire Housings Low Profile Dual-Wipe Socket RoHS: Compliant 0
  • 1,225 $1.6400
  • 2,450 $1.3400
$1.3400 / $1.6400 Order Now
Onlinecomponents.com 2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip 3151 In Stock
  • 10 $2.5300
  • 100 $2.0800
  • 250 $1.9900
  • 500 $1.9400
  • 1,000 $1.5900
  • 2,500 $1.3100
  • 5,000 $1.0900
  • 7,500 $1.0700
$1.0700 / $2.5300 Buy Now
DISTI # 51599978
Verical Conn Socket Strip SKT 12 POS 2mm Solder ST Bottom Entry SMD TIGER CLAW™ T/R RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 1501 Americas - 3150
  • 20 $3.2900
  • 100 $2.6098
  • 250 $2.4538
  • 500 $2.3515
  • 1,000 $1.8951
$1.8951 / $3.2900 Buy Now
DISTI # 5cd8d712cd7c1c4c38238cd7
Samtec Low Profile Dual Wipe Socket, 2.00 mm Pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 3 Days Container: Tape & Reel 0
  • 1 $2.8500
  • 50 $2.5500
  • 100 $2.1600
  • 500 $1.9500
  • 1,000 $1.6400
  • 2,000 $1.3400
  • 5,000 $1.0900
  • 10,000 $0.8400
$0.8400 / $2.8500 Buy Now
DISTI # 000000000001283935
Sager Headers & Wire Housings Low Profile Dual-Wipe Socket, 2.00 mm Pitch Min Qty: 1 0
  • 1 $2.8500
  • 50 $2.5500
  • 100 $2.1600
  • 500 $1.9500
  • 1,000 $1.6400
  • 2,000 $1.3400
$1.3400 / $2.8500 Buy Now
DISTI # CLT-106-02-L-D-BE-P-TR
Avnet Abacus Conn Socket Strip SKT 12 POS 2mm Solder ST SMD TR (Alt: CLT-106-02-L-D-BE-P-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip 3151 In Stock
  • 10 $2.5300
  • 100 $2.0800
  • 250 $1.9900
  • 500 $1.9400
  • 1,000 $1.5900
  • 2,500 $1.3100
  • 5,000 $1.0900
  • 7,500 $1.0700
$1.0700 / $2.5300 Buy Now

Part Details for CLT-106-02-L-D-BE-P-TR

CLT-106-02-L-D-BE-P-TR CAD Models

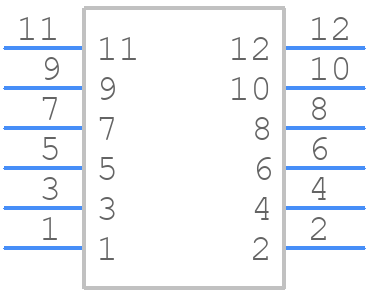

  • Part Symbol

    Part Symbol

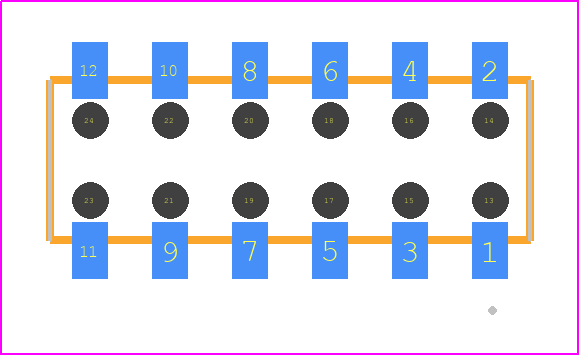

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CLT-106-02-L-D-BE-P-TR Part Data Attributes

Parametric Data
CLT-106-02-L-D-BE-P-TR Samtec Inc
Buy Now Datasheet
Compare Parts:
CLT-106-02-L-D-BE-P-TR Samtec Inc Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
Factory Lead Time 111 Weeks
Samacsys Manufacturer SAMTEC
Additional Feature BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW CONTACT
Body Breadth 0.157 inch
Body Depth 0.084 inch
Body Length 0.472 inch
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (10) OVER NICKEL (50)
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance 10 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 100 Cycles
Filter Feature NO
IEC Conformance NO
Insertion Force-Max .5004 N
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.079 inch
Mating Contact Row Spacing 0.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 4.5212 mm
Plating Thickness 10u inch
Rated Current (Signal) 2 A
Reference Standard UL
Terminal Pitch 2 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 12
Withdrawl Force-Min .1668 N

Alternate Parts for CLT-106-02-L-D-BE-P-TR

This table gives cross-reference parts and alternative options found for CLT-106-02-L-D-BE-P-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CLT-106-02-L-D-BE-P-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CLT-106-02-LM-D-BE-P-TR Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-02-LM-D-BE-P-TR
Part Number Manufacturer Composite Price Description Compare
CLT-106-02-F-D-P Samtec Inc $2.1058 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-106-02-L-D-BE-P-TR vs CLT-106-02-F-D-P
CLT-106-02-FM-D-P Samtec Inc $2.1058 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-02-FM-D-P
CLT-106-02-LM-D-P Samtec Inc $2.4766 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-02-LM-D-P
CLT-106-02-LM-D-A-P Samtec Inc $2.8737 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-02-LM-D-A-P
CLT-106-02-S-D-P Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-02-S-D-P
CLT-106-03-S-D Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-03-S-D
CLT-106-02-L-D-A-P Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-106-02-L-D-BE-P-TR vs CLT-106-02-L-D-A-P
CLT-106-02-SM-D-BE-A-P-TR Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-02-SM-D-BE-A-P-TR
CLT-106-02-LM-D-P-TR Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-02-LM-D-P-TR
CLT-106-02-FM-D-BE Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, CLT-106-02-L-D-BE-P-TR vs CLT-106-02-FM-D-BE

CLT-106-02-L-D-BE-P-TR Frequently Asked Questions (FAQ)

  • The recommended torque for the screws on the CLT-106-02-L-D-BE-P-TR connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's general guidelines for screw-down terminals.

  • Yes, the CLT-106-02-L-D-BE-P-TR connector is designed to withstand vibration and can be used in applications with moderate to high vibration levels. However, it's recommended to consult with Samtec's application engineers to ensure the connector meets the specific vibration requirements of your application.

  • Yes, the CLT-106-02-L-D-BE-P-TR connector is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.

  • The maximum operating temperature range for the CLT-106-02-L-D-BE-P-TR connector is -55°C to 125°C, although it's recommended to consult the datasheet for specific temperature ratings and derating information.

  • The CLT-106-02-L-D-BE-P-TR connector is not designed for use in wet or humid environments and may not meet the requirements of IP67 or higher. If your application requires a connector that can withstand moisture, you may need to consider a different connector or add additional protection measures.
