CLT-106-02-L-D-A by: Samtec Inc

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

Part Details for CLT-106-02-L-D-A by Samtec Inc

Results Overview of CLT-106-02-L-D-A by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Internet of Things (IoT) Industrial Automation Transportation and Logistics Automotive

CLT-106-02-L-D-A Information

CLT-106-02-L-D-A by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for CLT-106-02-L-D-A

Part # Distributor Description Stock Price Buy
DISTI # 87P9954
Newark Socket, 2.0Mm, Smt, 2X6 Position, Connector Systems:Board-To-Board, Pitch Spacing:2Mm, No. Of Rows:2Rows, No. Of Contacts:12Contacts, Connector Mounting:Surface Mount, Product Range:Clt Series, Contact Material:Phosphor Bronze Rohs Compliant: Yes |Samtec CLT-106-02-L-D-A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $3.7500
  • 50 $3.2500
  • 100 $2.7500
  • 500 $1.9600
  • 1,000 $1.4900
$1.4900 / $3.7500 Buy Now
DISTI # SAM9248-ND
DigiKey CONN RCPT 12POS 0.079 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube 80
In Stock
  • 1 $2.5900
  • 50 $2.3198
  • 100 $1.9692
  • 500 $1.7729
  • 1,000 $1.5120
$1.5120 / $2.5900 Buy Now
DISTI # CLT-106-02-L-D-A
Avnet Americas PCB Receptacle, Bottom Entry, Board-to-Board, 2 mm, 2 Rows, 12 Contacts, Surface Mount, CLT Series - Rail/Tube (Alt: CLT-106-02-L-D-A) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 5 Days Container: Tube 0
  • 1 $2.5382
  • 10 $2.3624
  • 30 $1.9099
  • 50 $1.9001
  • 100 $1.8902
$1.8902 / $2.5382 Buy Now
DISTI # 200-CLT10602LDA
Mouser Electronics Headers & Wire Housings Low Profile Dual-Wipe Socket RoHS: Compliant 14
  • 1 $2.5900
  • 94 $2.3200
  • 517 $1.7700
  • 1,034 $1.5000
  • 2,021 $1.3100
  • 5,029 $1.1300
$1.1300 / $2.5900 Buy Now
Onlinecomponents.com 2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip RoHS: Compliant 133 In Stock
  • 10 $2.4230
  • 100 $1.9690
  • 250 $1.8810
  • 500 $1.8260
  • 1,000 $1.4930
  • 2,500 $1.2600
  • 5,000 $1.0270
  • 7,500 $1.0000
$1.0000 / $2.4230 Buy Now
DISTI # 84980271
Verical Conn Socket Strip SKT 12 POS 2mm Solder ST Top Entry SMD TIGER CLAW™ Tube Min Qty: 30 Package Multiple: 10 Date Code: 1844 Americas - 123
  • 30 $3.1460
  • 100 $2.5610
  • 250 $2.4440
  • 500 $2.3790
  • 1,000 $1.9370
$1.9370 / $3.1460 Buy Now
Bristol Electronics   188
RFQ
DISTI # 5cd8d73fcd7c1c4c3823c2e2
Samtec Low Profile Dual Wipe Socket, 2.00 mm Pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 5 Days Container: Tube 0
  • 1 $2.5900
  • 50 $2.3200
  • 100 $1.9700
  • 500 $1.7700
  • 1,000 $1.4900
  • 2,000 $1.2200
  • 5,000 $0.9900
  • 10,000 $0.7700
$0.7700 / $2.5900 Buy Now
DISTI # 000000000000102283
Sager Headers & Wire Housings Low Profile Dual-Wipe Socket, 2.00 mm Pitch Min Qty: 1 0
  • 1 $2.5900
  • 50 $2.3200
  • 100 $1.9700
  • 500 $1.7700
  • 1,000 $1.4900
  • 2,000 $1.2200
$1.2200 / $2.5900 Buy Now
DISTI # CLT-106-02-L-D-A
Avnet Abacus PCB Receptacle Bottom Entry BoardtoBoard 2 mm 2 Rows 12 Contacts Surface Mount CLT Series (Alt: CLT-106-02-L-D-A) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # CLT-106-02-L-D-A
Avnet Abacus PCB Receptacle Bottom Entry BoardtoBoard 2 mm 2 Rows 12 Contacts Surface Mount CLT Series (Alt: CLT-106-02-L-D-A) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip RoHS: Compliant 133 In Stock
  • 10 $2.4230
  • 100 $1.9690
  • 250 $1.8810
  • 500 $1.8260
  • 1,000 $1.4930
  • 2,500 $1.2600
  • 5,000 $1.0270
  • 7,500 $1.0000
$1.0000 / $2.4230 Buy Now

Part Details for CLT-106-02-L-D-A

CLT-106-02-L-D-A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

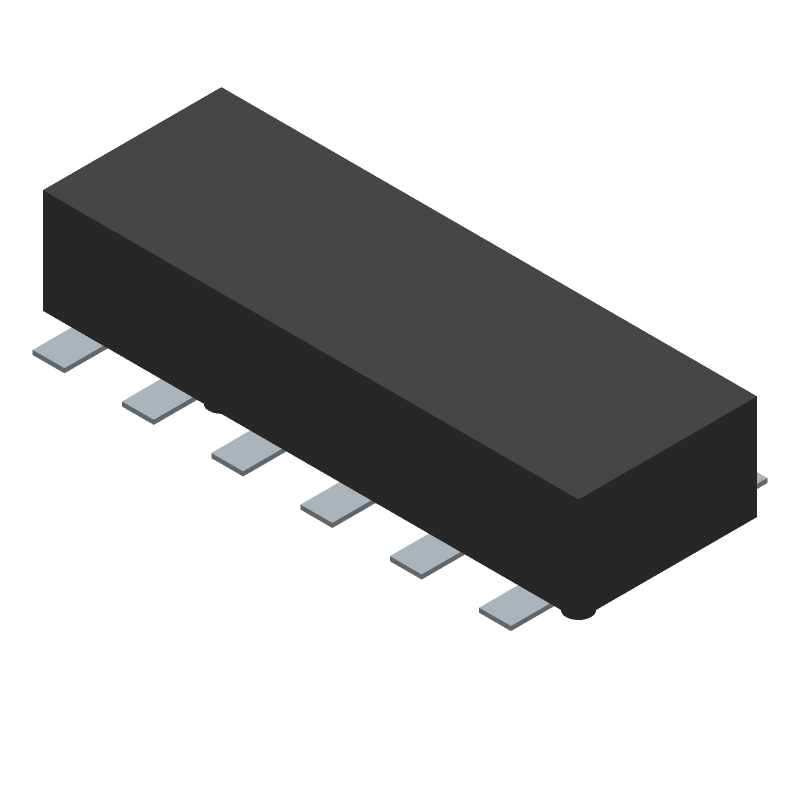

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CLT-106-02-L-D-A Part Data Attributes

Parametric Data
CLT-106-02-L-D-A Samtec Inc
Buy Now Datasheet
Compare Parts:
CLT-106-02-L-D-A Samtec Inc Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 2 Weeks, 5 Days
Samacsys Manufacturer SAMTEC
Additional Feature TIGER CLAW CONTACT
Board Mounting Option PEG
Body Breadth 0.157 inch
Body Depth 0.09 inch
Body Length 0.472 inch
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (10) OVER NICKEL (50)
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 100 Cycles
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.079 inch
Mating Contact Row Spacing 0.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 4.6 mm
Plating Thickness 10u inch
Rated Current (Signal) 4.1 A
Terminal Pitch 2 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 12

Alternate Parts for CLT-106-02-L-D-A

This table gives cross-reference parts and alternative options found for CLT-106-02-L-D-A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CLT-106-02-L-D-A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CLT-106-02-F-D-P-TR Samtec Inc $1.5391 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-106-02-L-D-A vs CLT-106-02-F-D-P-TR
CLT-106-02-G-D Samtec Inc $2.0433 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLT-106-02-L-D-A vs CLT-106-02-G-D
CLT-106-02-F-D-BE-A Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-106-02-L-D-A vs CLT-106-02-F-D-BE-A
CLT-106-02-G-D-A-K-TR Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug, ROHS COMPLIANT CLT-106-02-L-D-A vs CLT-106-02-G-D-A-K-TR
CLT-106-01-SM-D Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, CLT-106-02-L-D-A vs CLT-106-01-SM-D
CLT-106-02-G-D-A-P-TR Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-106-02-L-D-A vs CLT-106-02-G-D-A-P-TR
CLT-106-02-L-D-A-K-TR Samtec Inc Check for Price Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLT-106-02-L-D-A vs CLT-106-02-L-D-A-K-TR

CLT-106-02-L-D-A Related Parts

CLT-106-02-L-D-A Frequently Asked Questions (FAQ)

  • The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screw locks on the CLT-106-02-L-D-A.

  • Yes, the CLT-106-02-L-D-A is designed to withstand high-vibration environments. However, it's recommended to consult with Samtec's application engineers to ensure the connector meets the specific vibration requirements of your application.

  • The CLT-106-02-L-D-A has an operating temperature range of -55°C to 125°C (-69°F to 257°F).

  • Yes, the CLT-106-02-L-D-A is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The CLT-106-02-L-D-A has a mating cycle life of 500 cycles minimum.
