CLM-110-02-F-D by: Samtec Inc

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT

Part Details for CLM-110-02-F-D by Samtec Inc

Results Overview of CLM-110-02-F-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CLM-110-02-F-D Information

CLM-110-02-F-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for CLM-110-02-F-D

Part # Distributor Description Stock Price Buy
DISTI # 53AJ6446
Newark Connector, Rcpt, 20Pos, 2Row, 1Mm, Connector Systems:Board-To-Board, Pitch Spacing:1Mm, No. Of Rows:2Rows, No. Of Contacts:20Contacts, Connector Mounting:Surface Mount, Product Range:Clm Series, Contact Material:Phosphor Bronze Rohs Compliant: Yes |Samtec CLM-110-02-F-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 409
  • 1 $3.2800
  • 10 $3.0400
  • 25 $2.8900
  • 50 $2.8000
  • 100 $2.7200
  • 250 $2.4100
$2.4100 / $3.2800 Buy Now
DISTI # SAM9225-ND
DigiKey CONN RCPT 20POS 0.039 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube 150
In Stock
  • 1 $3.4700
  • 10 $2.9470
  • 100 $2.5050
  • 500 $2.2361
  • 1,000 $2.1294
$2.1294 / $3.4700 Buy Now
DISTI # CLM-110-02-F-D
Avnet Americas PCB Receptacle, Board-to-Board, 1 mm, 2 Rows, 20 Contacts, Surface Mount, CLM Series - Rail/Tube (Alt: CLM-110-02-F-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube 1625
3673 Factory Stock
  • 1 $3.1164
  • 10 $2.8733
  • 30 $2.3862
  • 50 $2.3739
  • 100 $2.3616
$2.3616 / $3.1164 Buy Now
DISTI # 200-CLM11002FD
Mouser Electronics Board to Board & Mezzanine Connectors Low Profile Dual-Wipe Socket RoHS: Compliant 657
  • 1 $3.1800
  • 25 $2.9800
  • 54 $2.8000
  • 108 $2.4800
  • 540 $2.2400
  • 1,026 $2.0100
  • 2,538 $1.7000
  • 5,022 $1.4200
$1.4200 / $3.1800 Buy Now
DISTI # V99:2348_07890638
Arrow Electronics Conn Micro Socket Strip SKT 20 POS 1mm Solder ST SMD Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Date Code: 1845 Americas - 7
  • 1 $3.1800
  • 25 $2.9800
  • 50 $2.8000
  • 100 $2.4800
  • 500 $2.2400
  • 1,000 $1.9000
  • 2,500 $1.4200
  • 5,000 $0.9500
$0.9500 / $3.1800 Buy Now
Onlinecomponents.com 1.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Micro Socket Strip RoHS: Compliant 620 In Stock
3553 Factory Stock
  • 10 $3.0600
  • 50 $2.6200
  • 250 $2.4200
  • 500 $2.1800
  • 1,000 $1.8500
  • 2,500 $1.8400
$1.8400 / $3.0600 Buy Now
DISTI # 85031999
Verical Conn Micro Socket Strip SKT 20 POS 1mm Solder ST SMD Tube RoHS: Compliant Min Qty: 3 Package Multiple: 1 Americas - 3553
  • 3 $3.1800
  • 25 $2.9800
  • 50 $2.8000
  • 100 $2.4800
  • 500 $2.2400
  • 1,000 $1.9000
$1.9000 / $3.1800 Buy Now
DISTI # 65015791
Verical Conn Micro Socket Strip SKT 20 POS 1mm Solder ST SMD Tube RoHS: Compliant Min Qty: 20 Package Multiple: 10 Americas - 620
  • 20 $3.9780
  • 50 $3.4060
  • 250 $3.1460
  • 500 $2.8340
  • 1,000 $2.4050
$2.4050 / $3.9780 Buy Now
Bristol Electronics   61
RFQ
DISTI # CLM11002FD
TTI Board to Board & Mezzanine Connectors RoHS: Compliant pbFree: Pb-Free Min Qty: 54 Package Multiple: 54 Container: Tube Americas - 0
  • 54 $2.4600
  • 108 $2.4100
  • 540 $2.1700
  • 1,026 $1.9000
  • 2,538 $1.6800
$1.6800 / $2.4600 Buy Now
DISTI # 5cd8d701cd7c1c4c382378d8
Samtec Low Profile Dual-Wipe Socket, 1.00mm Pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 3553
  • 1 $3.1800
  • 25 $2.9800
  • 50 $2.8000
  • 100 $2.4800
  • 500 $2.2400
  • 1,000 $1.9000
  • 2,500 $1.4200
  • 5,000 $0.9500
$0.9500 / $3.1800 Buy Now
Powell Electronics 1.00 mm Tiger Claw Rugged Reliable Dual Min Qty: 1 2424
  • 1 $3.1800
  • 25 $2.9800
  • 50 $2.8000
  • 100 $2.4800
  • 500 $2.2400
$2.2400 / $3.1800 Buy Now
DISTI # 000000000000058279
Sager Board to Board & Mezzanine Connectors Low Profile Dual-Wipe Socket, 1.00mm Pitch Min Qty: 1 3553
  • 1 $3.1800
  • 25 $2.9800
  • 50 $2.8000
  • 100 $2.4800
  • 500 $2.2400
  • 1,000 $1.9000
$1.9000 / $3.1800 Buy Now
DISTI # CLM-110-02-F-D
Avnet Abacus PCB Receptacle BoardtoBoard 1 mm 2 Rows 20 Contacts Surface Mount CLM Series (Alt: CLM-110-02-F-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # CLM-110-02-F-D
Avnet Abacus PCB Receptacle BoardtoBoard 1 mm 2 Rows 20 Contacts Surface Mount CLM Series (Alt: CLM-110-02-F-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 1.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Micro Socket Strip RoHS: Compliant 620 In Stock
3553 Factory Stock
  • 10 $3.0600
  • 50 $2.6200
  • 250 $2.4200
  • 500 $2.1800
  • 1,000 $1.8500
  • 2,500 $1.8400
$1.8400 / $3.0600 Buy Now

Part Details for CLM-110-02-F-D

CLM-110-02-F-D CAD Models

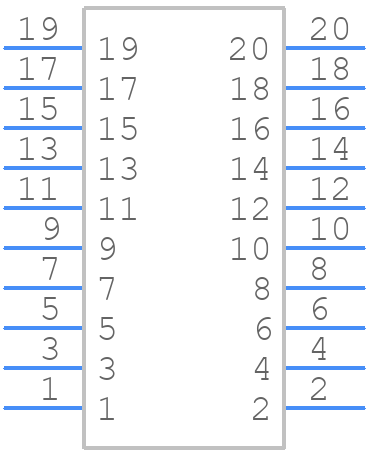

  • Part Symbol

    Part Symbol

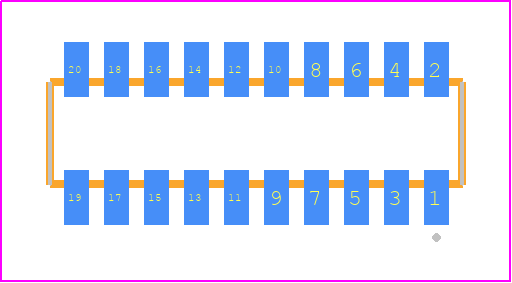

  • Footprint

    footprint

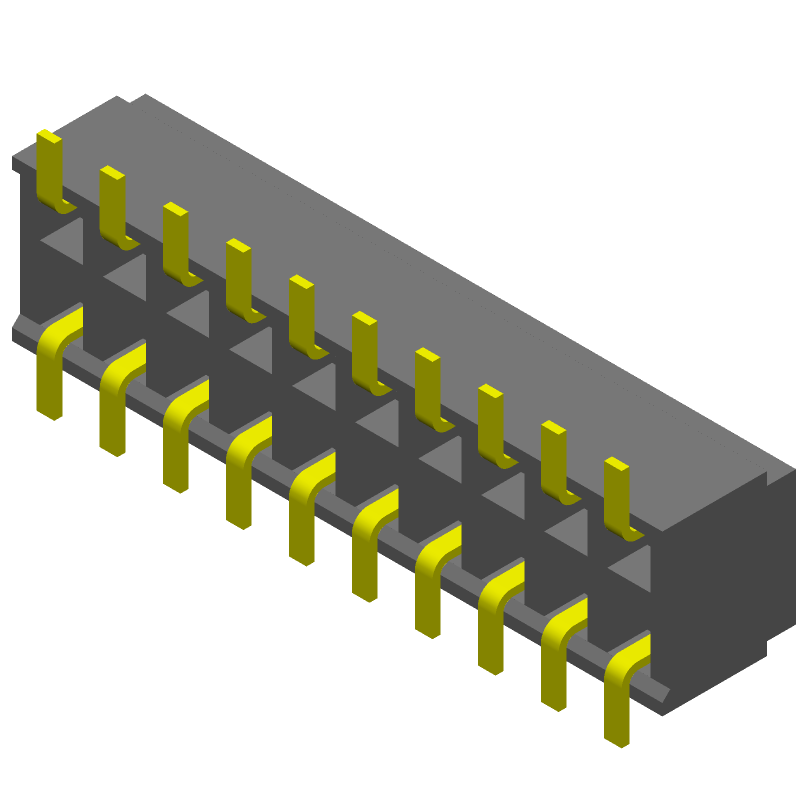

  • 3D Model
