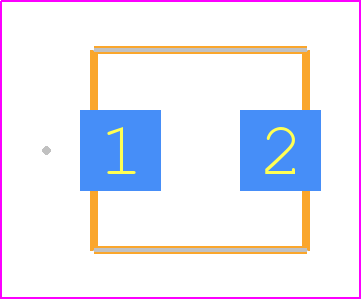

Footprint
-

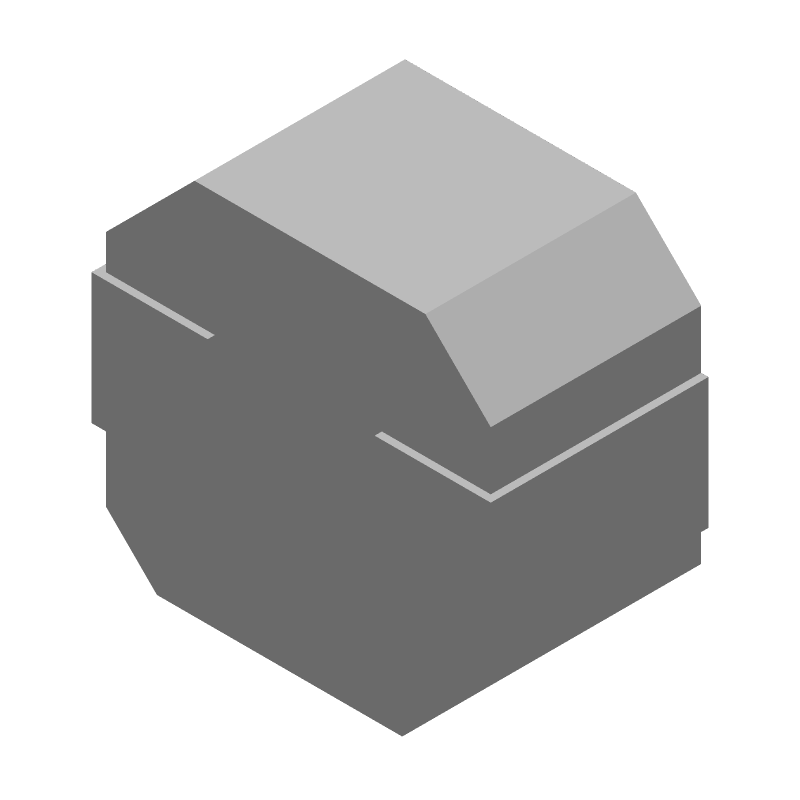

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CLF5030NIT-470M-D by TDK Corporation
Results Overview of CLF5030NIT-470M-D by TDK Corporation
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
CLF5030NIT-470M-D Information
CLF5030NIT-470M-D by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for CLF5030NIT-470M-D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AC4831
|
Newark | Inductor, 47Uh, 0.68A, 20%, Shielded, Inductance:47Μh, Rms Current (Irms):680Ma, Inductor Construction:Shielded, Saturation Current (Isat):750Ma, Product Range:Clf-Ni-D Series, Power Inductor Case:5.3Mm X 5Mm X 2.7Mm, Dc Resistance Rohs Compliant: Yes |Tdk CLF5030NIT-470M-D RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1495 |
|
$0.4690 / $0.9020 | Buy Now |
|
DISTI #
445-174703-1-ND
|
DigiKey | FIXED IND 47UH 680MA 522MOHM SMD Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8295 In Stock |
|
$0.3375 / $0.7600 | Buy Now |
|
DISTI #
CLF5030NIT-470M-D
|
Avnet Americas | Power Inductor (SMD), 47 uH, ? 20%, 680 mA, Shielded, 1 A, 5.3mm x 5mm x 2.7mm - Tape and Reel (Alt: CLF5030NIT-470M-D) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.3216 / $0.3462 | Buy Now |
|
DISTI #
810-CLF5030NIT470MD
|
Mouser Electronics | Power Inductors - SMD 47uH +/-20% AECQ200 -55 to +150C RoHS: Compliant | 4506 |
|
$0.3380 / $0.7600 | Buy Now |
|
DISTI #
V72:2272_16589721
|
Arrow Electronics | Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.68A 0.522Ohm DCR Automotive AEC-Q200 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2429 Container: Cut Strips | Americas - 1350 |
|
$0.3494 / $0.7483 | Buy Now |
|
DISTI #
83608512
|
Verical | Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.68A 0.522Ohm DCR Automotive AEC-Q200 T/R RoHS: Compliant Min Qty: 17 Package Multiple: 1 Date Code: 2429 | Americas - 1350 |
|
$0.3494 / $0.6172 | Buy Now |
|
DISTI #
CLF5030NIT-470M-D
|
TTI | Power Inductors - SMD 47uH +/-20% AECQ200 -55 to +150C pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 2000 In Stock |
|
$0.3350 | Buy Now |
|
DISTI #
CLF5030NIT-470M-D
|
Avnet Abacus | Power Inductor SMD 47 uH 20 680 mA Shielded 1 A 53mm x 5mm x 27mm (Alt: CLF5030NIT-470M-D) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 33 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CLF5030NIT-470M-D
CLF5030NIT-470M-D CAD Models
CLF5030NIT-470M-D Part Data Attributes
|
|
CLF5030NIT-470M-D
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CLF5030NIT-470M-D
TDK Corporation
General Purpose Inductor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 2120 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.435 Ω | |
| Inductance-Nom (L) | 47 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 2.7 mm | |
| Package Length | 5.3 mm | |
| Package Style | SMT | |
| Package Width | 5 mm | |
| Packing Method | TR, BLISTER PLASTIC, 13 INCH | |
| Rated Current-Max | 0.68 A | |
| Reference Standard | AEC-Q200 | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
