CL05C180JB5NNNC by:

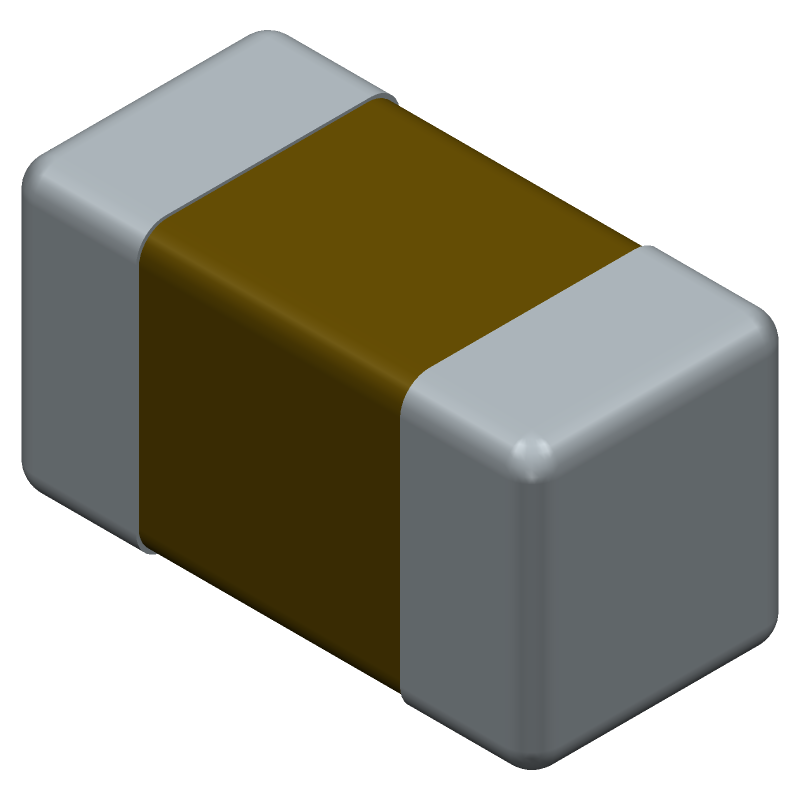

Capacitor, Ceramic, Chip, General Purpose, 18pF, 50V, ±5%, C0G/NP0, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel

Part Details for CL05C180JB5NNNC by Samsung Electro-Mechanics

Results Overview of CL05C180JB5NNNC by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL05C180JB5NNNC Information

CL05C180JB5NNNC by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL05C180JB5NNNC

Part # Distributor Description Stock Price Buy
DISTI # 1276-1140-1-ND
DigiKey CAP CER 18PF 50V C0G/NP0 0402 Min Qty: 1 Lead time: 22 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 481864
In Stock
  • 1 $0.1000
  • 10 $0.0290
  • 100 $0.0166
  • 1,000 $0.0103
  • 2,500 $0.0087
  • 5,000 $0.0078
  • 10,000 $0.0055
  • 20,000 $0.0049
  • 30,000 $0.0048
  • 50,000 $0.0043
  • 70,000 $0.0043
  • 100,000 $0.0042
  • 250,000 $0.0042
  • 500,000 $0.0042
  • 1,000,000 $0.0041
$0.0041 / $0.1000 Buy Now
DISTI # CL05C180JB5NNNC
Avnet Americas - Tape and Reel (Alt: CL05C180JB5NNNC) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel 530000
  • 10,000 $0.0033
  • 20,000 $0.0033
  • 40,000 $0.0032
  • 60,000 $0.0032
  • 80,000 $0.0031
$0.0031 / $0.0033 Buy Now
DISTI # 187-CL05C180JB5NNNC
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 18pF+/-5% 50V C0G 10 0402 RoHS: Compliant 29122
  • 1 $0.1000
  • 10 $0.0220
  • 100 $0.0150
  • 500 $0.0120
  • 1,000 $0.0110
  • 2,500 $0.0080
  • 10,000 $0.0050
  • 20,000 $0.0040
$0.0040 / $0.1000 Buy Now
DISTI # E02:0323_03401933
Arrow Electronics Cap Ceramic 18pF 50V C0G 5% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks Date Code: 2304 Europe - 6860000
  • 70,000 $0.0015
$0.0015 Buy Now
DISTI # V72:2272_07049675
Arrow Electronics Cap Ceramic 18pF 50V C0G 5% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2142 Container: Cut Strips Americas - 38
  • 38 $0.0114
$0.0114 Buy Now
Future Electronics CL05 Series 18 pF 50 V ±5 % Tolerance C0G SMT Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks Container: Reel 560000
Reel
  • 10,000 $0.0038
  • 30,000 $0.0037
  • 50,000 $0.0036
  • 200,000 $0.0035
  • 300,000 $0.0034
$0.0034 / $0.0038 Buy Now
Onlinecomponents.com Multilayer Ceramic Capacitor, 18 pF, 50 V, ± 5%, C0G (NP0), 0402 [1005 Metric] RoHS: Compliant 9000 In Stock
  • 1 $0.2680
  • 100 $0.2360
  • 500 $0.0526
$0.0526 / $0.2680 Buy Now
DISTI # 66286358
Verical Cap Ceramic 18pF 50V C0G 5% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2304 Americas - 6860000
  • 10,000 $0.0015
$0.0015 Buy Now
Future Electronics CL05 Series 18 pF 50 V �5 % Tolerance C0G SMT Multilayer Ceramic Capacitor Min Qty: 10000 Package Multiple: 10000 560000
null
  • 10,000 $0.0038
  • 30,000 $0.0037
  • 50,000 $0.0037
  • 200,000 $0.0035
  • 300,000 $0.0034
$0.0034 / $0.0038 Buy Now
Vyrian Capacitors 1941367
RFQ

Part Details for CL05C180JB5NNNC

CL05C180JB5NNNC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL05C180JB5NNNC Part Data Attributes

Parametric Data
CL05C180JB5NNNC Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL05C180JB5NNNC Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 18pF, 50V, ±5%, C0G/NP0, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 0402
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 20 Weeks
Samacsys Manufacturer SAMSUNG
Capacitance 0.000018 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.55 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, CARDBOARD, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 50 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm
