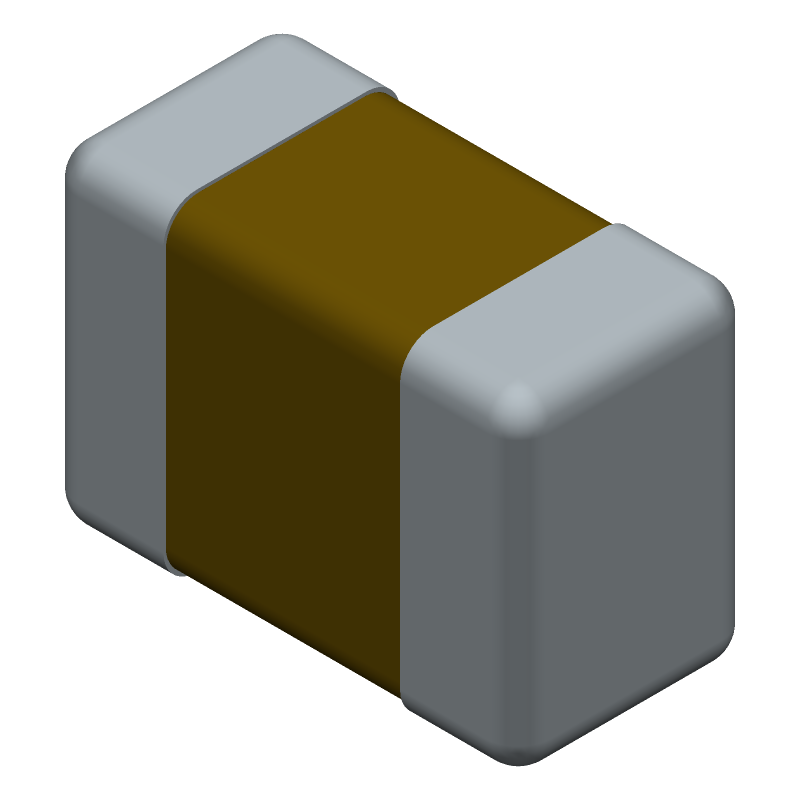

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CL05A106MQ5NUNC by Samsung Electro-Mechanics
Results Overview of CL05A106MQ5NUNC by Samsung Electro-Mechanics
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CL05A106MQ5NUNC Information
CL05A106MQ5NUNC by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CL05A106MQ5NUNC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AM4412
|
Newark | Cap, Mlcc, 10Uf, X5R, 6.3Vdc, 0402, Capacitance:10Μf, Voltage(Dc):6.3V, Voltage(Ac):-, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X5R, Product Range:Cl Series, Qualification:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL05A106MQ5NUNC RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 6140 |
|
$0.0640 / $0.1210 | Buy Now |
|
DISTI #
94AC8454
|
Newark | Resistor, 2010, 6.8Mohm, 0.67W, 2/3W, ±300Ppm, ±5% Rohs Compliant: Yes |Samsung Electro-Mechanics CL05A106MQ5NUNC RoHS: Compliant Min Qty: 50000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0330 | Buy Now |
|
DISTI #
1276-1451-1-ND
|
DigiKey | CAP CER 10UF 6.3V X5R 0402 Min Qty: 1 Lead time: 22 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4732079 In Stock |
|
$0.0266 / $0.0900 | Buy Now |
|
DISTI #
CL05A106MQ5NUNC
|
Avnet Americas | Multilayer Ceramic Capacitor, 10 uF, 6.3 V, ? 20%, X5R, 0402 [1005 Metric] - Tape and Reel (Alt: CL05A106MQ5NUNC) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel | 500000 |
|
$0.0129 / $0.0138 | Buy Now |
|
DISTI #
187-CL05A106MQ5NUNC
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 10uF+/-20% 6.3V X5R 0402 RoHS: Compliant | 3413 |
|
$0.0230 / $0.1400 | Buy Now |
|
DISTI #
E02:0323_03401851
|
Arrow Electronics | Cap Ceramic 10uF 6.3V X5R 20% Pad SMD 0402 85°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks Date Code: 2451 | Europe - 4840000 |
|
$0.0135 / $0.0232 | Buy Now |
|
DISTI #
V36:1790_07050445
|
Arrow Electronics | Cap Ceramic 10uF 6.3V X5R 20% Pad SMD 0402 85°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks Date Code: 2133 | Americas - 690000 |
|
$0.0241 / $0.0312 | Buy Now |
|
DISTI #
V72:2272_07050445
|
Arrow Electronics | Cap Ceramic 10uF 6.3V X5R 20% Pad SMD 0402 85°C T/R RoHS: Compliant Min Qty: 3125 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2133 Container: Cut Strips | Americas - 6112 |
|
$0.0315 / $0.0320 | Buy Now |
|
|
Future Electronics | CL05 Series 10 uF 6.3 V ±20 % Tolerance X5R SMT Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks Container: Reel | 7310000Reel |
|
$0.0142 / $0.0151 | Buy Now |
|
|
Future Electronics | CL05 Series 10 uF 6.3 V ±20 % Tolerance X5R SMT Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks Container: Reel | 40000Reel |
|
$0.0147 / $0.0156 | Buy Now |
Part Details for CL05A106MQ5NUNC
CL05A106MQ5NUNC CAD Models
CL05A106MQ5NUNC Part Data Attributes
|
|
CL05A106MQ5NUNC
Samsung Electro-Mechanics
Buy Now
Datasheet
|
Compare Parts:
CL05A106MQ5NUNC
Samsung Electro-Mechanics
Capacitor, Ceramic, Chip, General Purpose, 10uF, 6.3V, ±20%, X5R, 0402 (1005 mm), 0.020"T, -55º ~ +85ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMSUNG ELECTRO-MECHANICS | |
| Part Package Code | 0402 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | SAMSUNG | |
| Capacitance | 10 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.7 mm | |
| JESD-609 Code | e3 | |
| Length | 1 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, CARDBOARD PAPER, 7 INCH | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X5R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.5 mm |
Alternate Parts for CL05A106MQ5NUNC
This table gives cross-reference parts and alternative options found for CL05A106MQ5NUNC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL05A106MQ5NUNC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ZRB15XR60J106ME12D | Murata Manufacturing Co Ltd | $0.0611 | Ceramic Capacitor, Ceramic | CL05A106MQ5NUNC vs ZRB15XR60J106ME12D |
| ZRB15XR60J106ME12J | Murata Manufacturing Co Ltd | Check for Price | Ceramic Capacitor, Ceramic, | CL05A106MQ5NUNC vs ZRB15XR60J106ME12J |
| 04026D106MAT2A | Kyocera AVX Components | $0.0552 | Capacitor, Ceramic, Chip, General Purpose, 10uF, 6.3V, ±20%, X5R, 0402 (1005 mm), Sn/NiBar, -55º ~ +85ºC, 7" Reel | CL05A106MQ5NUNC vs 04026D106MAT2A |
| NMC0402X5R106M6.3TRPF | NIC Components Corp | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, 15% TC, 10uF, Surface Mount, 0402, | CL05A106MQ5NUNC vs NMC0402X5R106M6.3TRPF |
| CL05A106MQ5NUNL | Samsung Electro-Mechanics | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, 15% TC, 10uF, Surface Mount, 0402, CHIP | CL05A106MQ5NUNC vs CL05A106MQ5NUNL |
| KGM05CR50J106MH | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, 15% TC, 106uF, Surface Mount, 0402, CHIP | CL05A106MQ5NUNC vs KGM05CR50J106MH |
CL05A106MQ5NUNC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile is 250°C for 10 seconds, with a peak temperature of 260°C for 5 seconds. However, it's recommended to consult the Samsung Electro-Mechanics application note for more detailed information.
-
The CL05A106MQ5NUNC is designed to handle high-frequency noise up to 1 GHz. Its low equivalent series resistance (ESR) and equivalent series inductance (ESL) make it suitable for high-frequency applications.
-
Yes, the CL05A106MQ5NUNC is AEC-Q200 qualified, making it suitable for automotive applications. However, it's recommended to consult the datasheet and application notes for specific requirements and testing.
-
The CL05A106MQ5NUNC has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C and 60% relative humidity.
-
The CL05A106MQ5NUNC is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's recommended to consult the datasheet and application notes for specific temperature derating and reliability information.
