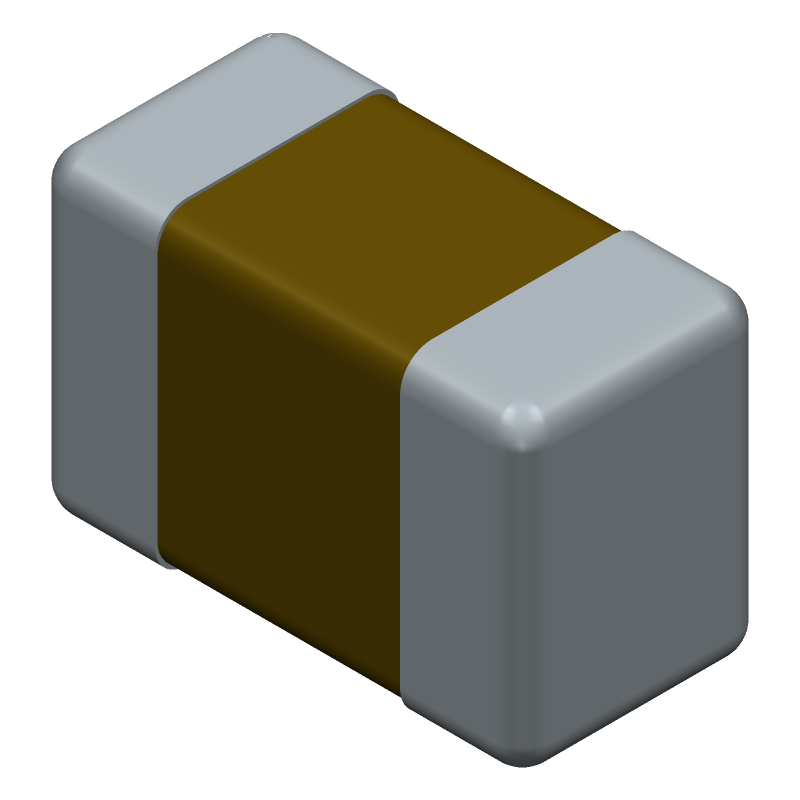

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CL03A225MQ3CRNC by Samsung Electro-Mechanics
Results Overview of CL03A225MQ3CRNC by Samsung Electro-Mechanics
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CL03A225MQ3CRNC Information
CL03A225MQ3CRNC by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CL03A225MQ3CRNC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AK7982
|
Newark | Cap, 2.2Uf, 6.3V, Mlcc, 0201 Rohs Compliant: Yes |Samsung Electro-Mechanics CL03A225MQ3CRNC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 75884 |
|
$0.0530 / $0.1910 | Buy Now |
|
DISTI #
1276-6870-1-ND
|
DigiKey | CAP CER 2.2UF 6.3V X5R 0201 Min Qty: 1 Lead time: 22 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
756526 In Stock |
|
$0.0280 / $0.2100 | Buy Now |
|
DISTI #
CL03A225MQ3CRNC
|
Avnet Americas | SMD Multilayer Ceramic Capacitor, 2.2 ?F, 6.3 V, 0201 [0603 Metric], ? 20%, X5R - Tape and Reel (Alt: CL03A225MQ3CRNC) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel | 90000 |
|
$0.0235 | Buy Now |
|
DISTI #
187-CL03A225MQ3CRNC
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 2.2uF+/-20% 6.3V X5R 0201 RoHS: Compliant | 27096 |
|
$0.0180 / $0.1200 | Buy Now |
|
DISTI #
V72:2272_07049723
|
Arrow Electronics | Cap Ceramic 2.2uF 6.3V X5R 20% Pad SMD 0201 85°C T/R RoHS: Compliant Min Qty: 3497 Package Multiple: 1 Lead time: 20 Weeks Date Code: 1836 Container: Cut Strips | Americas - 65984 |
|
$0.0256 / $0.0282 | Buy Now |
|
DISTI #
E02:0323_07305086
|
Arrow Electronics | Cap Ceramic 2.2uF 6.3V X5R 20% Pad SMD 0201 85°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks Date Code: 2514 | Europe - 60000 |
|
$0.0221 | Buy Now |
|
DISTI #
V36:1790_07049723
|
Arrow Electronics | Cap Ceramic 2.2uF 6.3V X5R 20% Pad SMD 0201 85°C T/R RoHS: Compliant Min Qty: 100000 Package Multiple: 10000 Lead time: 20 Weeks Date Code: 2405 | Americas - 10000 |
|
$0.0244 | Buy Now |
|
DISTI #
36363509
|
Verical | Cap Ceramic 2.2uF 6.3V X5R 20% Pad SMD 0201 85°C T/R RoHS: Compliant Min Qty: 3497 Package Multiple: 1 Date Code: 1836 | Americas - 65984 |
|
$0.0396 | Buy Now |
|
DISTI #
88054816
|
Verical | Cap Ceramic 2.2uF 6.3V X5R 20% Pad SMD 0201 85°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2514 | Americas - 60000 |
|
$0.0224 | Buy Now |
|
DISTI #
78406980
|
Verical | Cap Ceramic 2.2uF 6.3V X5R 20% Pad SMD 0201 85°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2405 | Americas - 10000 |
|
$0.0376 | Buy Now |
Part Details for CL03A225MQ3CRNC
CL03A225MQ3CRNC CAD Models
CL03A225MQ3CRNC Part Data Attributes
|
|
CL03A225MQ3CRNC
Samsung Electro-Mechanics
Buy Now
Datasheet
|
Compare Parts:
CL03A225MQ3CRNC
Samsung Electro-Mechanics
Capacitor, Ceramic, Chip, General Purpose, 2.2uF, 6.3V, ±20%, X5R, 0201 (0603 mm), 0.012"T, -55º ~ +85ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMSUNG ELECTRO-MECHANICS | |
| Part Package Code | 0201 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | SAMSUNG | |
| Capacitance | 2.2 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.3 mm | |
| JESD-609 Code | e3 | |
| Length | 0.6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, CARDBOARD PAPER, 7 INCH | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Size Code | 201 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X5R | |
| Temperature Coefficient | 0.15 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.3 mm |
CL03A225MQ3CRNC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for the CL03A225MQ3CRNC is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
-
Yes, the CL03A225MQ3CRNC is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
-
The ESR of the CL03A225MQ3CRNC is typically around 0.015 ohms, but this value can vary depending on the frequency and operating conditions.
-
Yes, the CL03A225MQ3CRNC is designed to operate in humid environments, with a moisture sensitivity level of 3, but it's still recommended to follow proper storage and handling procedures to prevent moisture absorption.
-
The recommended land pattern for the CL03A225MQ3CRNC is a rectangular pad with a size of 1.5mm x 0.75mm, with a solder mask clearance of 0.15mm.
