CK45-R3AD222K-VRA Information
CK45-R3AD222K-VRA by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CK45-R3AD222K-VRA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Cytech Systems Limited | CAP CER 2200PF 1KV RADIAL | 1000 |
|
RFQ |
Part Details for CK45-R3AD222K-VRA

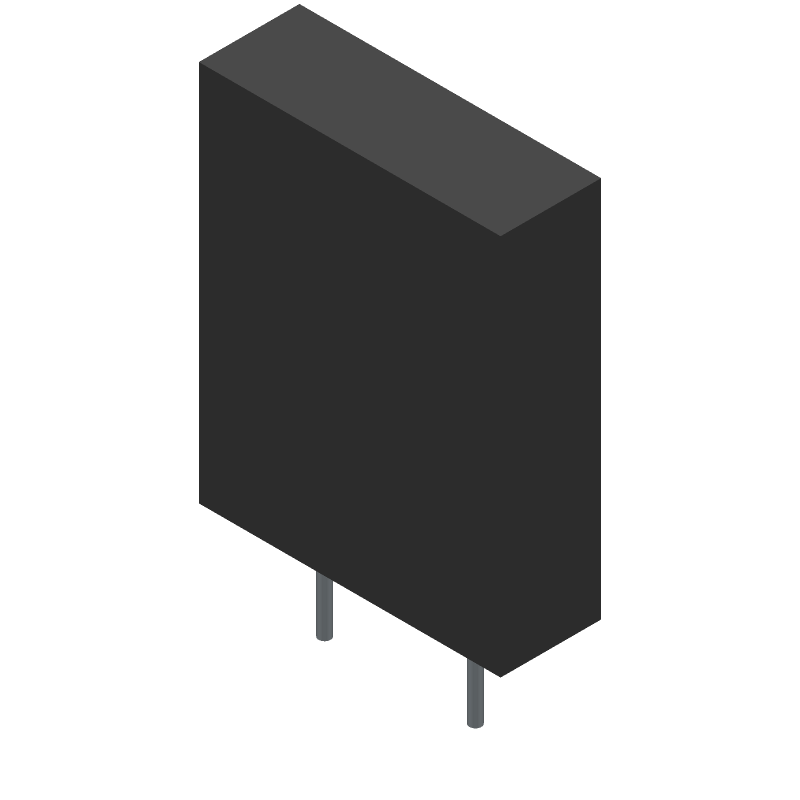

CK45-R3AD222K-VRA CAD Models
CK45-R3AD222K-VRA Part Data Attributes
|
|
CK45-R3AD222K-VRA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CK45-R3AD222K-VRA
TDK Corporation
Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, R, -30/+15% TC, 0.0022uF, Through Hole Mount, 4520, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.23.00.60 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.0022 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 11.5 mm | |
| Length | 11.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Multilayer | No | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Packing Method | TAPE | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 1000 V | |
| Size Code | 4520 | |
| Surface Mount | NO | |
| Temperature Characteristics Code | R | |
| Temperature Coefficient | -30/+15% ppm/°C | |
| Terminal Pitch | 7.5 mm | |
| Terminal Shape | WIRE | |
| Width | 5 mm |
Alternate Parts for CK45-R3AD222K-VRA
This table gives cross-reference parts and alternative options found for CK45-R3AD222K-VRA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CK45-R3AD222K-VRA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CK45-R3AD222K-NRA | TDK Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, R, -30/+15% TC, 0.0022uF, Through Hole Mount, 4520, RADIAL LEADED | CK45-R3AD222K-VRA vs CK45-R3AD222K-NRA |
| CK45-R3AD222K-NR | TDK Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, R, -30/+15% TC, 0.0022uF, Through Hole Mount, 4520, RADIAL LEADED, ROHS COMPLIANT | CK45-R3AD222K-VRA vs CK45-R3AD222K-NR |
| CK45-R3AD222K-VR | TDK Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, R, -30/+15% TC, 0.0022uF, Through Hole Mount, 4520, RADIAL LEADED, ROHS COMPLIANT | CK45-R3AD222K-VRA vs CK45-R3AD222K-VR |
